Ride Diagnosis

^ Inspect the tires for wrong pressure and uneven wear.
^ Inspect the joint from the column to the steering gear for lose connectors or wear.
^ Inspect the front and rear suspension, and the steering gear or linkage for loose or damaged parts
^ Inspect for out-of-round or out-of-balance tires, bent wheels, and loose and/or rough wheel bearings.
^ Inspect power steering system for leaks. Also check the power steering fluid level and the drive belt tension.

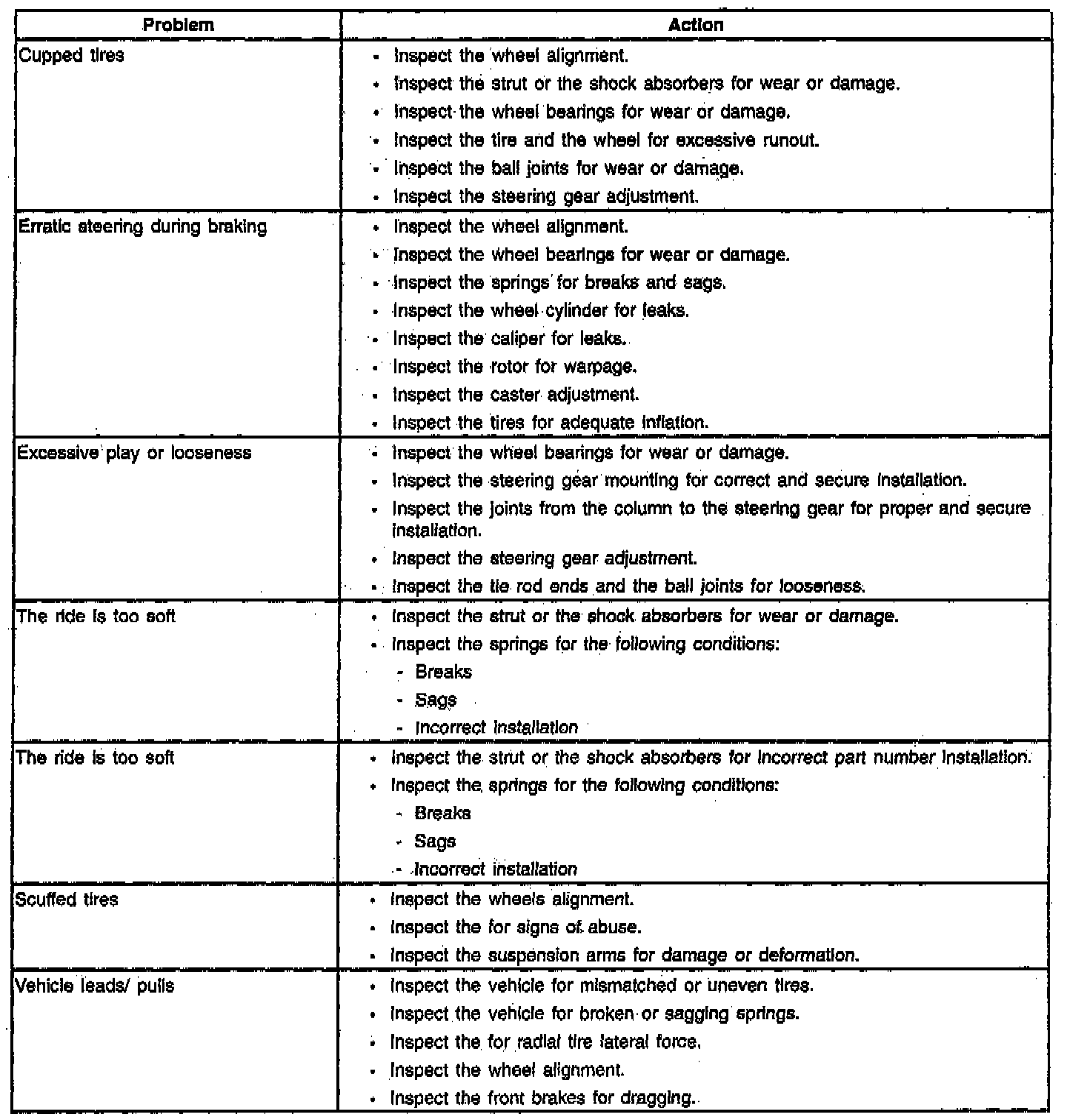

Ride Diagnosis - Part 1 Of 3:

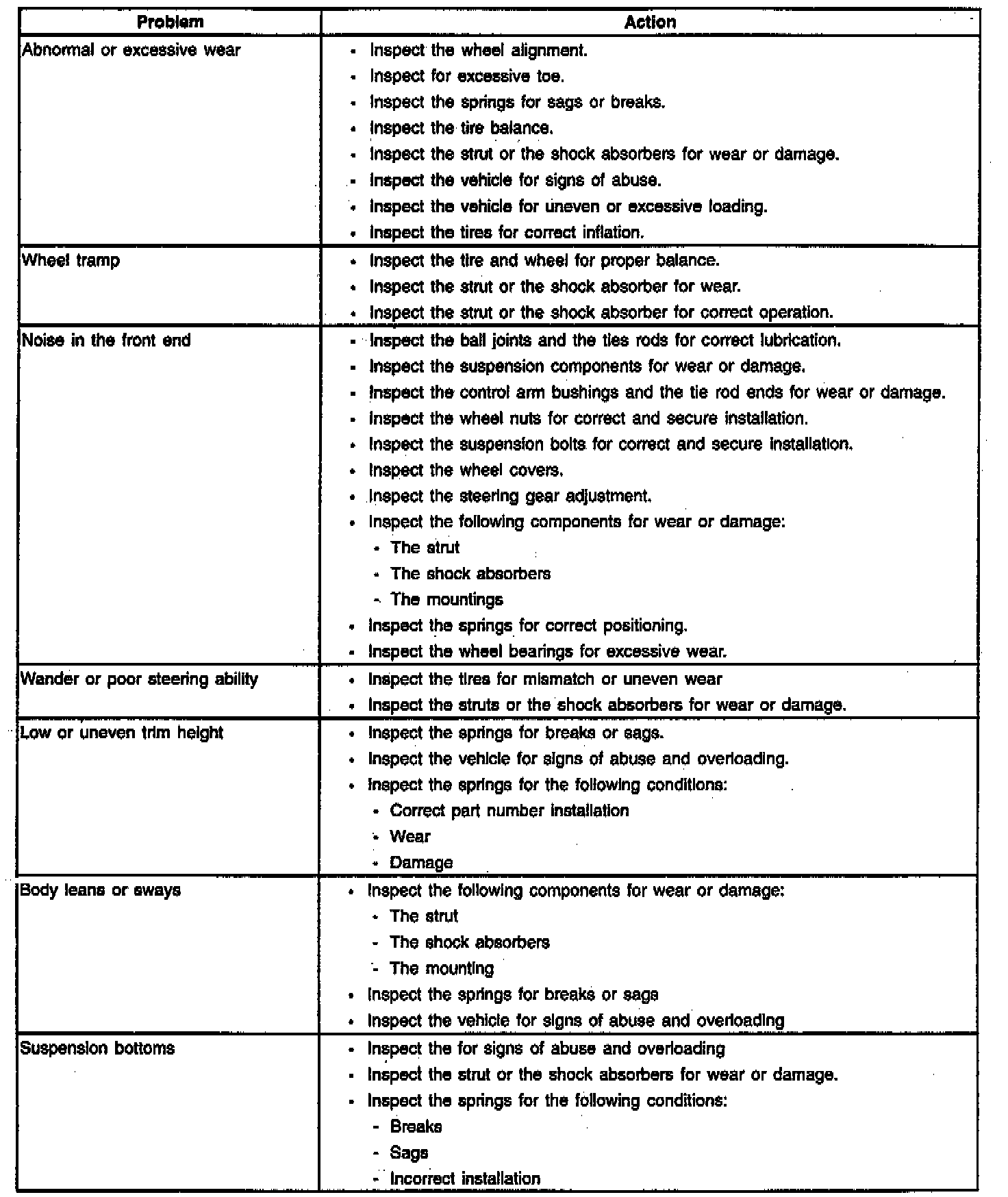

Ride Diagnosis - Part 2 Of 3:





Ride Diagnosis - Part 3 Of 3:
