Crankshaft Position Sensor: Service and Repair

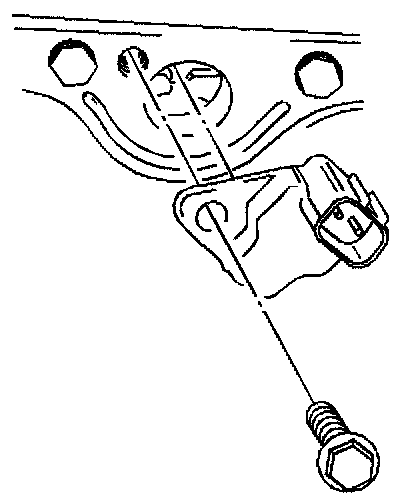

Removal Procedure





1. Raise and suitably support the vehicle.
2. Disconnect the crankshaft position (CKP) sensor electrical connector.
3. Remove the one bolt and the CKP sensor from the oil pan.





4. Inspect the CKP sensor signal rotor for damaged or missing teeth through the CKP sensor opening.

Installation Procedure





1. Raise and suitably support the vehicle.
2. Install the CKP sensor to the engine block.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Secure the CKP sensor with the one bolt.

Tighten
Tighten the CKP sensor bolt to 10 Nm (89 lb in).

4. Connect the CKP sensor electrical connector.
5. Lower the vehicle.
