Fastener Tightening Specifications - Intake Manifold

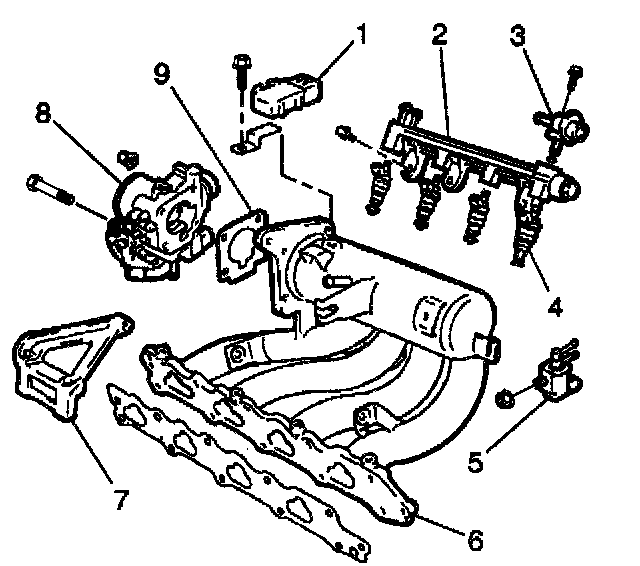

Install the
intake manifold with the TBI unit (8) and wire clamps to the cylinder head still attached. Secure the intake manifold with the two nuts and the seven bolts. Tighten the intake manifold mounting bolts and nuts to
23 Nm (17 lb ft).
