Compressor HVAC: Testing and Inspection

Routine inspection of the compressor drive belt may reveal small cracks in the belt ribs. The technician must decide whether or not these cracks are serious enough to impair belt performance, requiring belt replacement. If any sections of the belt are missing, the belt should be replaced immediately.

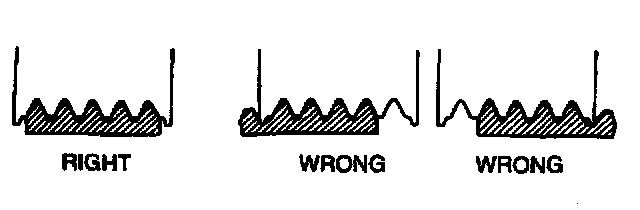

Compressor Drive Belt Alignment:





1. Inspect the belt for proper alignment on the compressor and the crankshaft drive pulley.

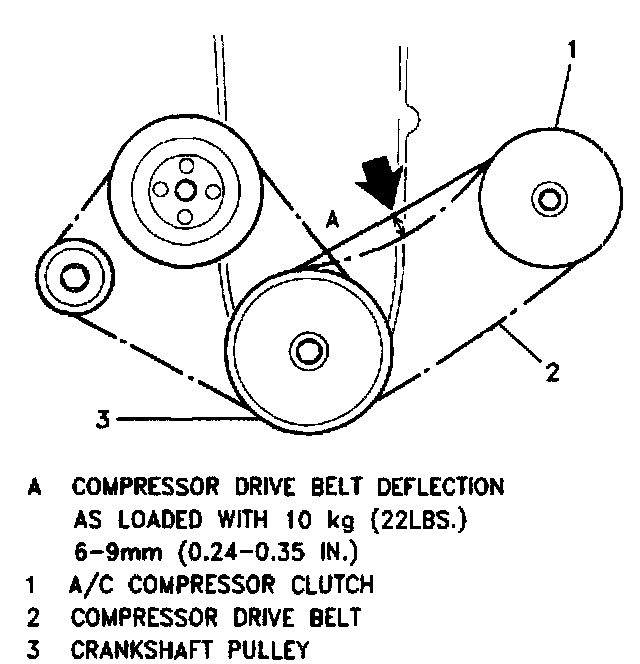

Checking Drive Belt Tension:





2. Check the compressor drive belt tension using thumb pressure and adjust if necessary to specification.
3. To adjust belt tension, loosen compressor mounting bolts and repositioning compressor along the upper mounting bracket axis.
