Thrust Angles Description
The front
wheels aim or steer the vehicle. The rear wheels control the tracking. The tracking action is relative to the following values:
^
The rear wheel toe
^

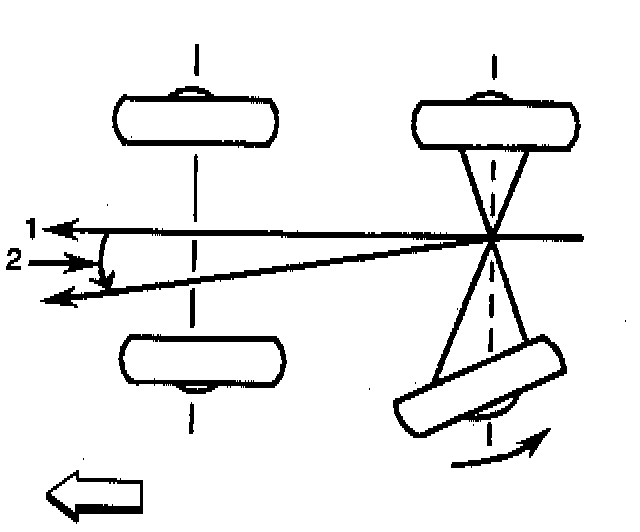

The thrust angle (2)
The thrust angle is the path that the rear
wheels take.
The thrust angle should be geometrically aligned with the centerline (1) of the vehicle body.
