Vehicle Ride (Trim) Height Specifications

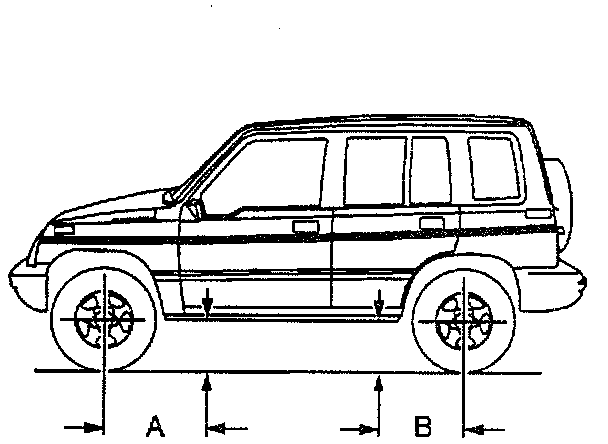

TRIM HEIGHT MEASUREMENT POINTS






Folding Top:
Distance A: 500 mm (19.70 inch)
Distance B: 500 mm (19.70 inch)

Four Door:
Distance A: 500 mm (19.70 inch)
Distance B: 500 mm (19.70 inch)

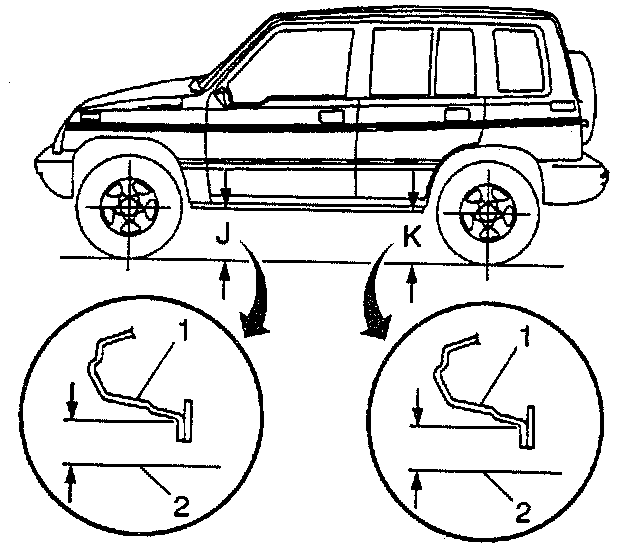

TRIM HEIGHT SPECIFICATIONS





Folding Top:
Trim Height J: 282 mm (11.10 inch)
Trim Height K: 303 mm (11.93 inch)

Four Door:
Trim Height J: 282 mm (11.10 inch)
Trim Height K: 303 mm (11.93 inch)

TRIM HEIGHT SPECIFICATIONS

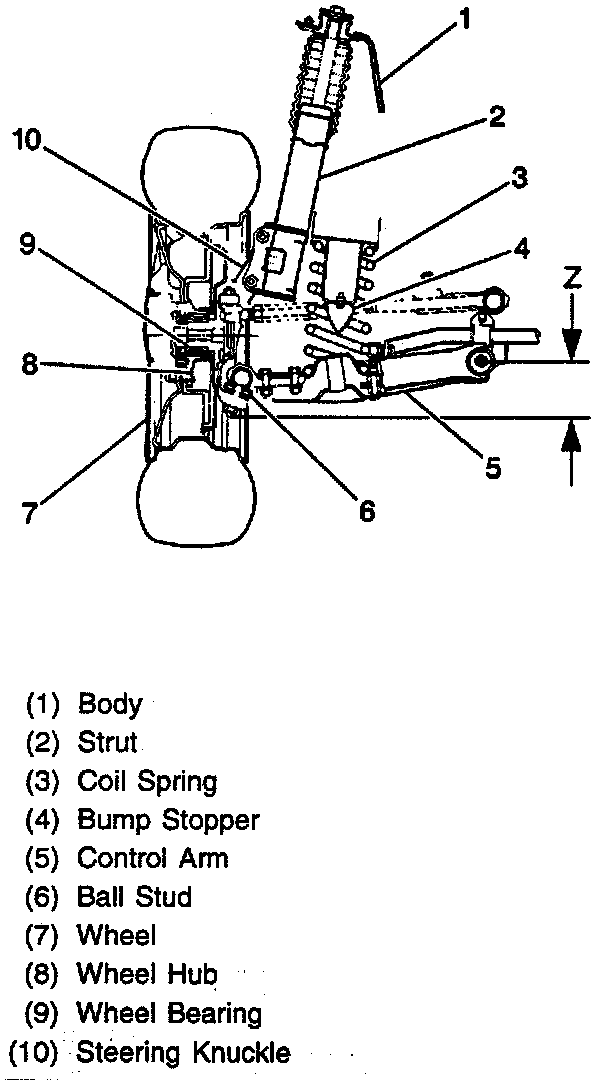

Clearance Z
2WD Folding Top: 91 mm (3.60 inch)
4WD Folding Top: 91 mm (3.60 inch)
2WD Four Door: 91 mm (3.60 inch)
4WD Four Door: 91 mm (3.60 inch)

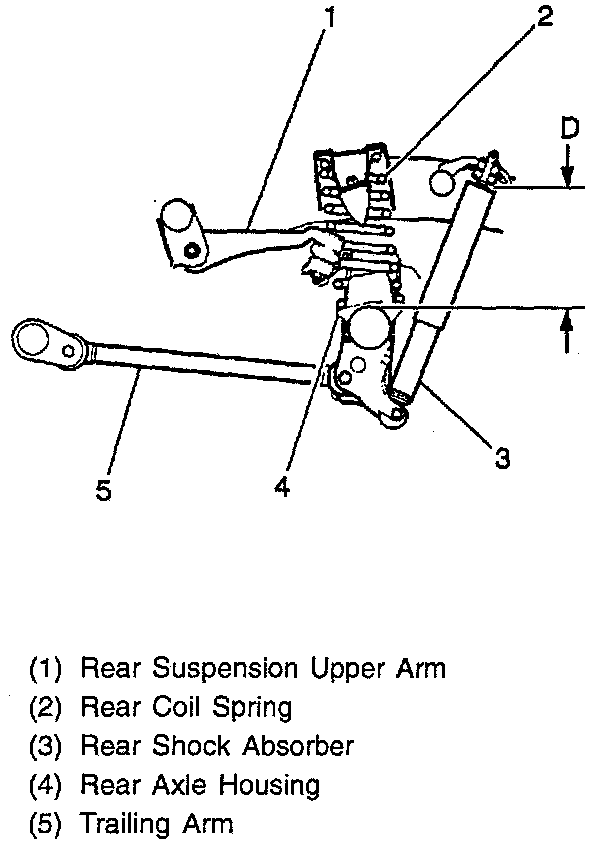

Clearance D
2WD Folding Top: 212 mm (8.35 inch)
4WD Folding Top: 212 mm (8.35 inch)
2WD Four Door: 212 mm (8.35 inch)
4WD Four Door: 212 mm (8.35 inch)
