Air Temperature Sensor ( Ambient / Intake ): Service and Repair

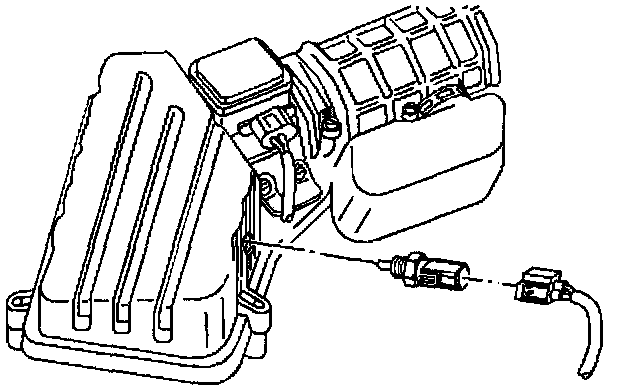

Description:
Removal Procedure 1.
Disconnect the Intake Air Temperature (IAT) sensor electrical connector.
2.
Remove the IAT sensor from air cleaner.
Installation Procedure 1.
Install the IAT sensor and new gasket into air cleaner. Tighten sensor to
13-17 Nm (9.5-12.0 lb ft).
2.
Connect the IAT sensor electrical connector.
