Wiper Blade Assembly Replacement




REMOVAL PROCEDURE

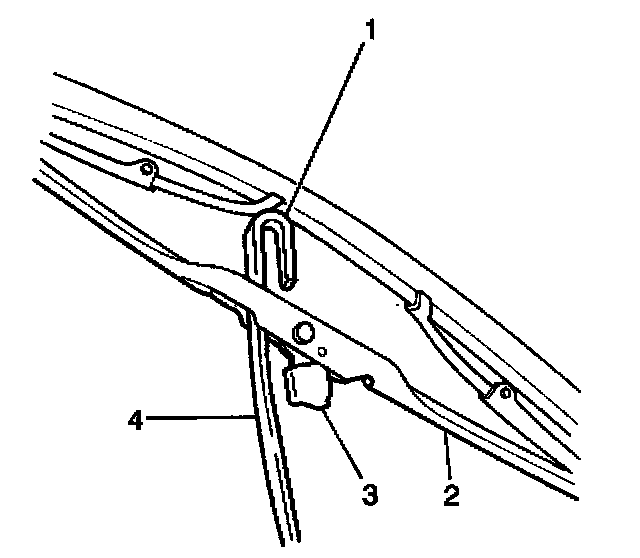

1. Depress the front wiper blade retaining tab (3).
2. Slide the blade assembly (2) down the wiper arm (4) until the blade assembly clears the wiper arm hook (1).
3. Remove the blade assembly (2) from the wiper arm (4).

INSTALLATION PROCEDURE
1. Slide the wiper blade assembly (2) onto the wiper arm hook (1) until the release tab (3) clicks into place and locks.
2. Gently lower the wiper arm (4) to the arm's normal position on the windshield.
