Wiper Blade Element Replacement

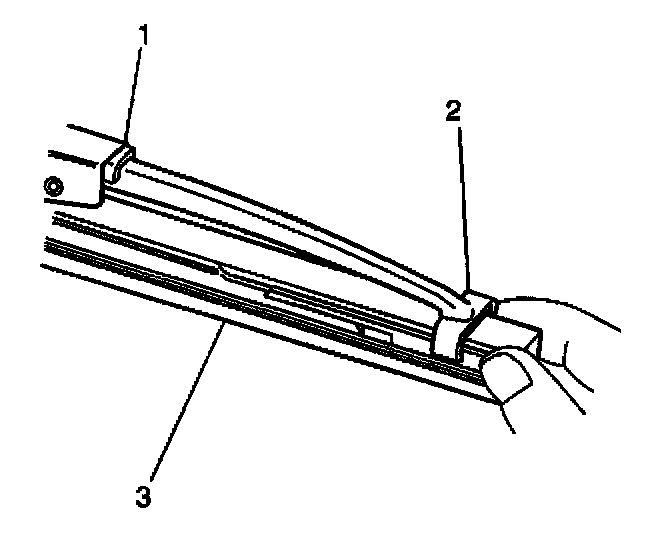

REMOVAL PROCEDUREPull the front
wiper blade rubber (3) out of the wiper blade assembly hooks (2).
INSTALLATION PROCEDURESlide the
wiper blade rubber (3) through the wiper blade assembly hooks (2) until the blade assembly (1) is locked into place.
