Electrical Connection Retainer

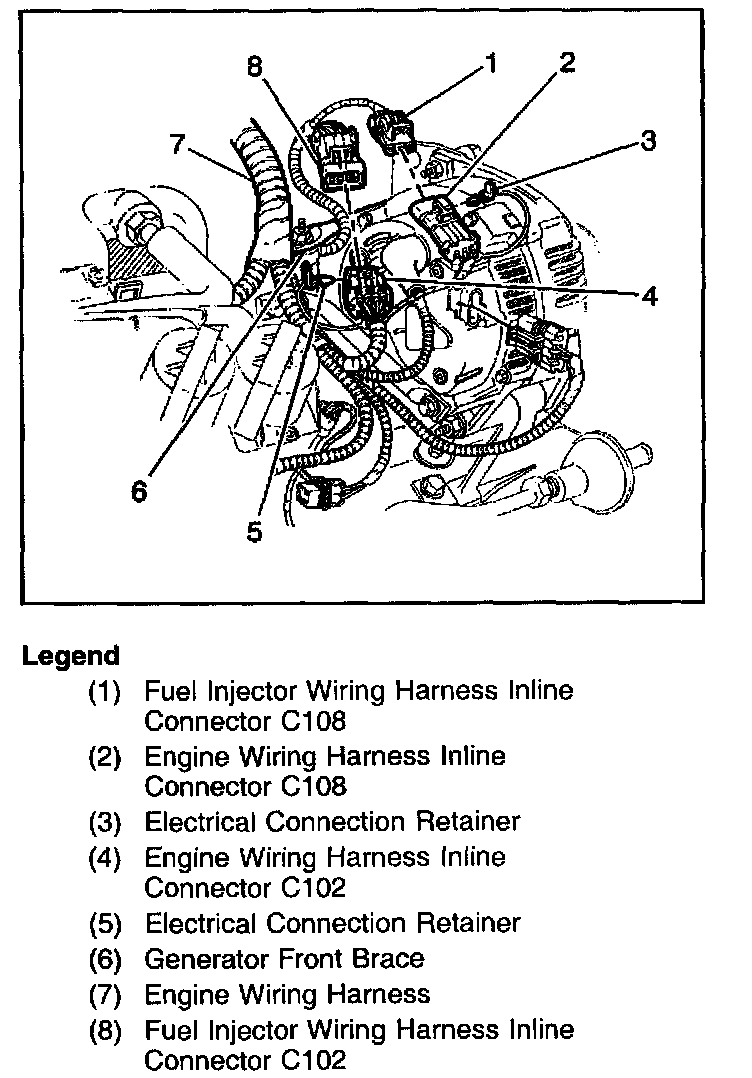

Engine Wiring Harness At Power Steering Pump:

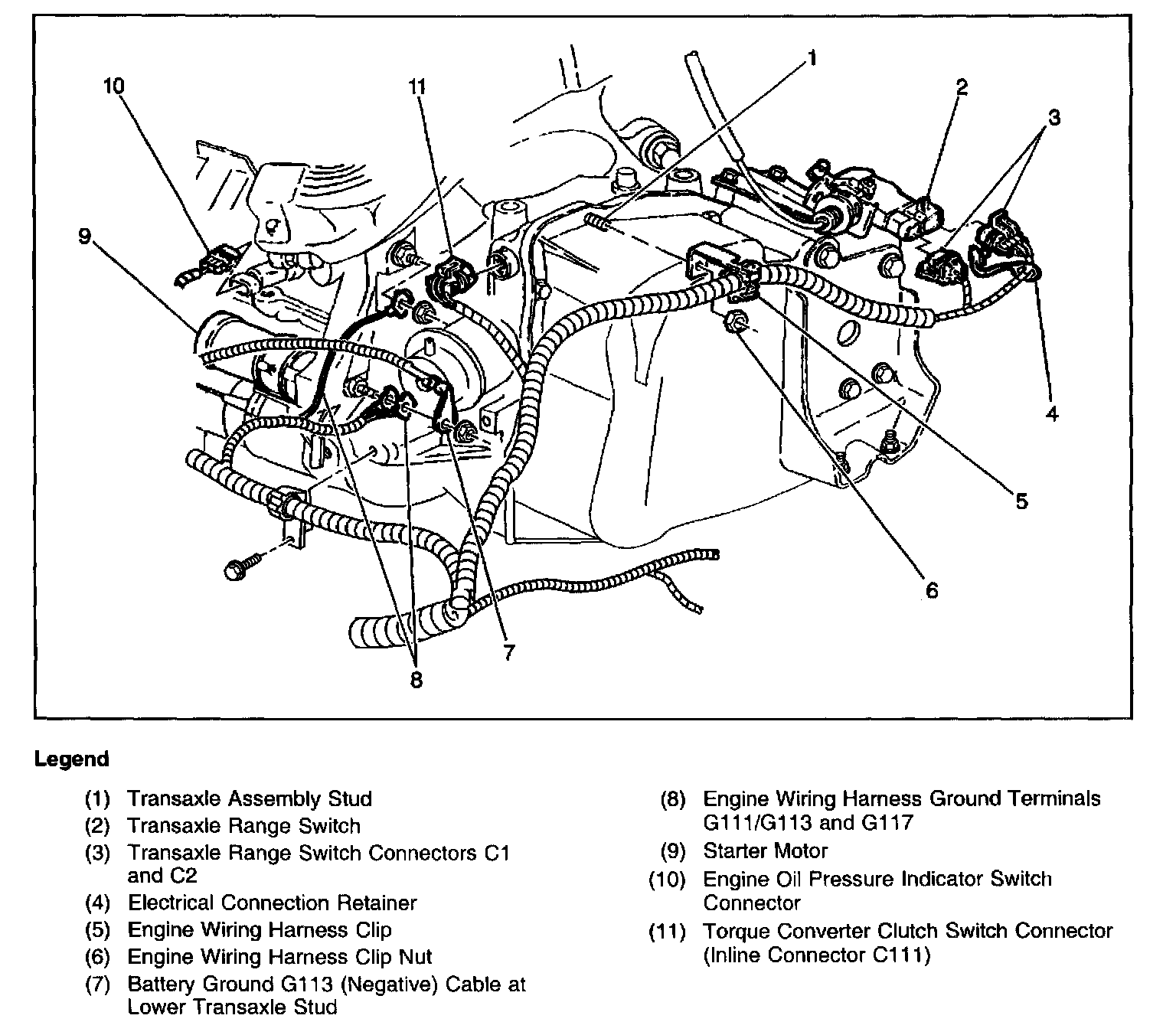

Transaxle:

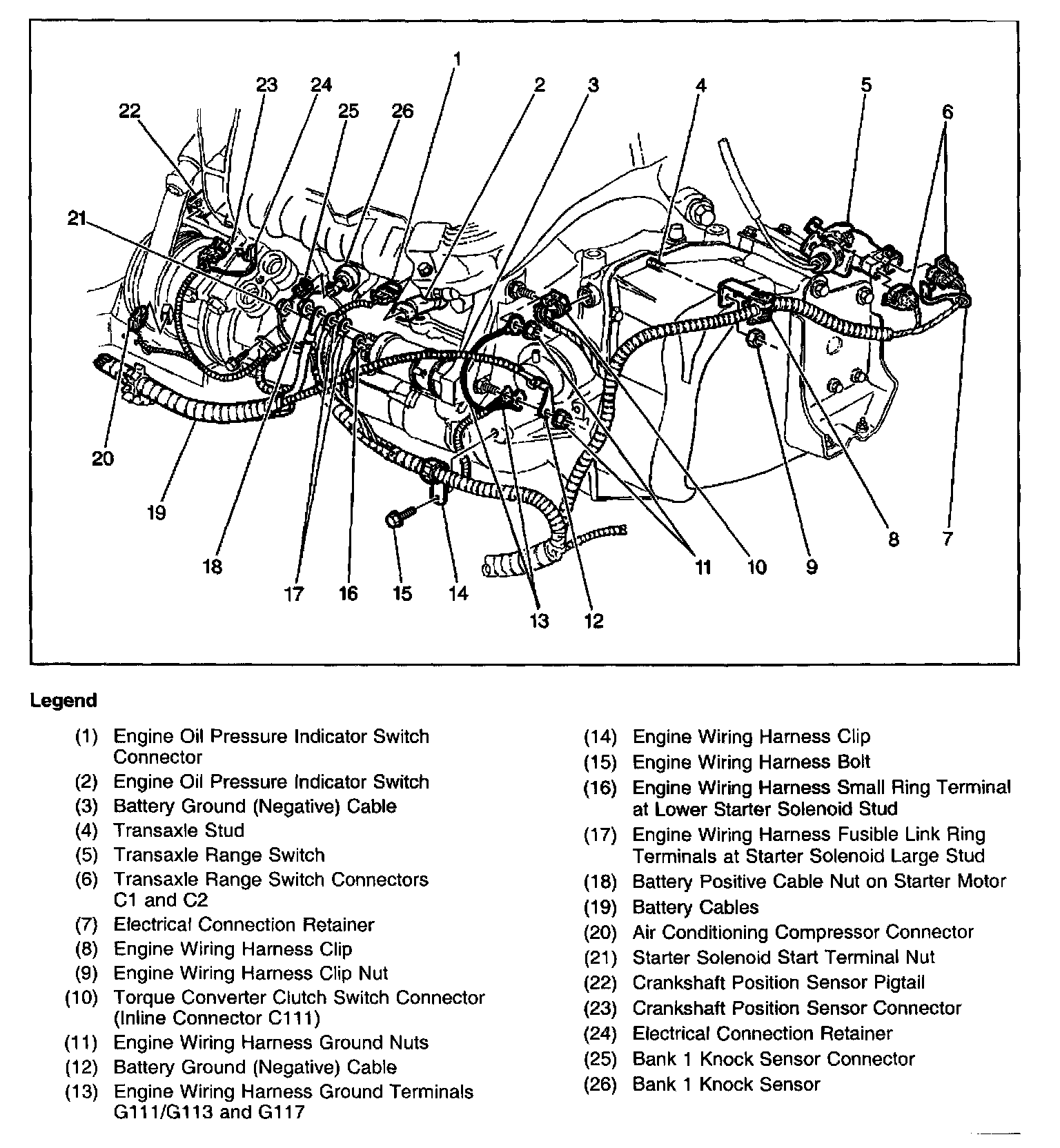

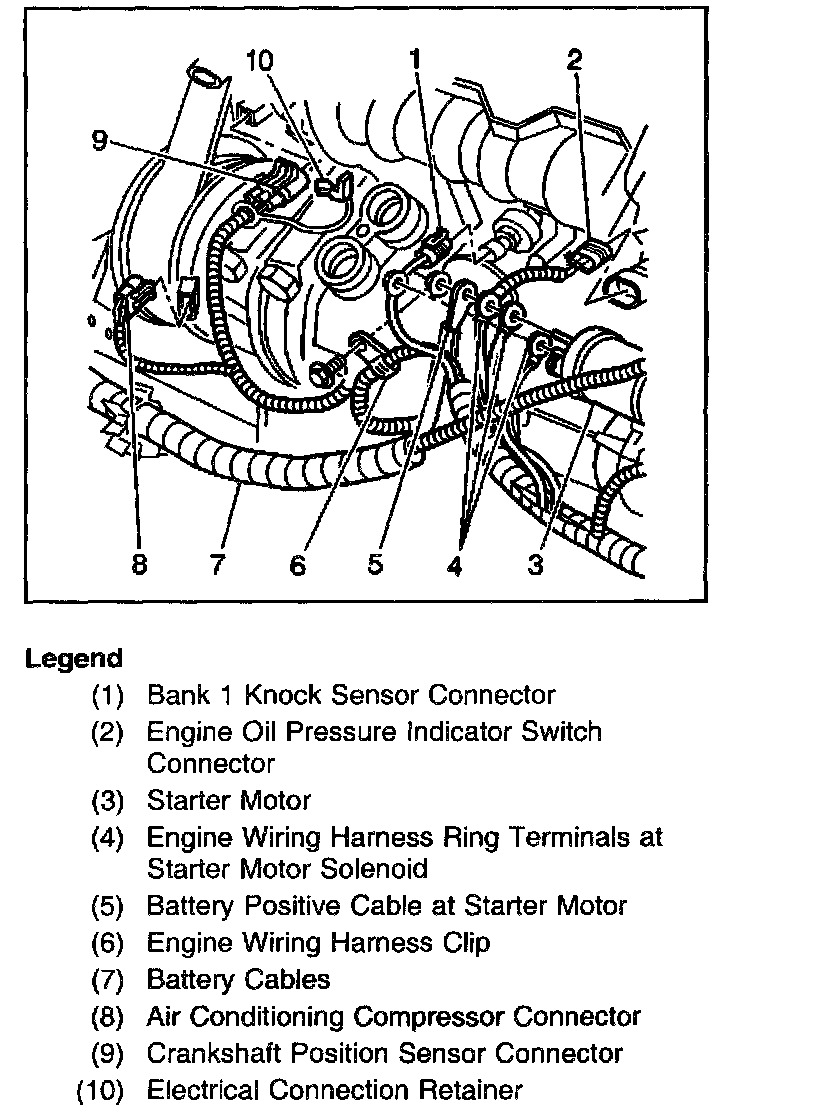

Engine Wiring Harness At Starter Motor And Air Conditioning Compressor:




Engine Front Lower:




Engine Rear:




Upper Right:
