Video Entertainment System (VES) Relay
Tape Retract Module (TRM) And Video Entertainment System (VES) Relay:

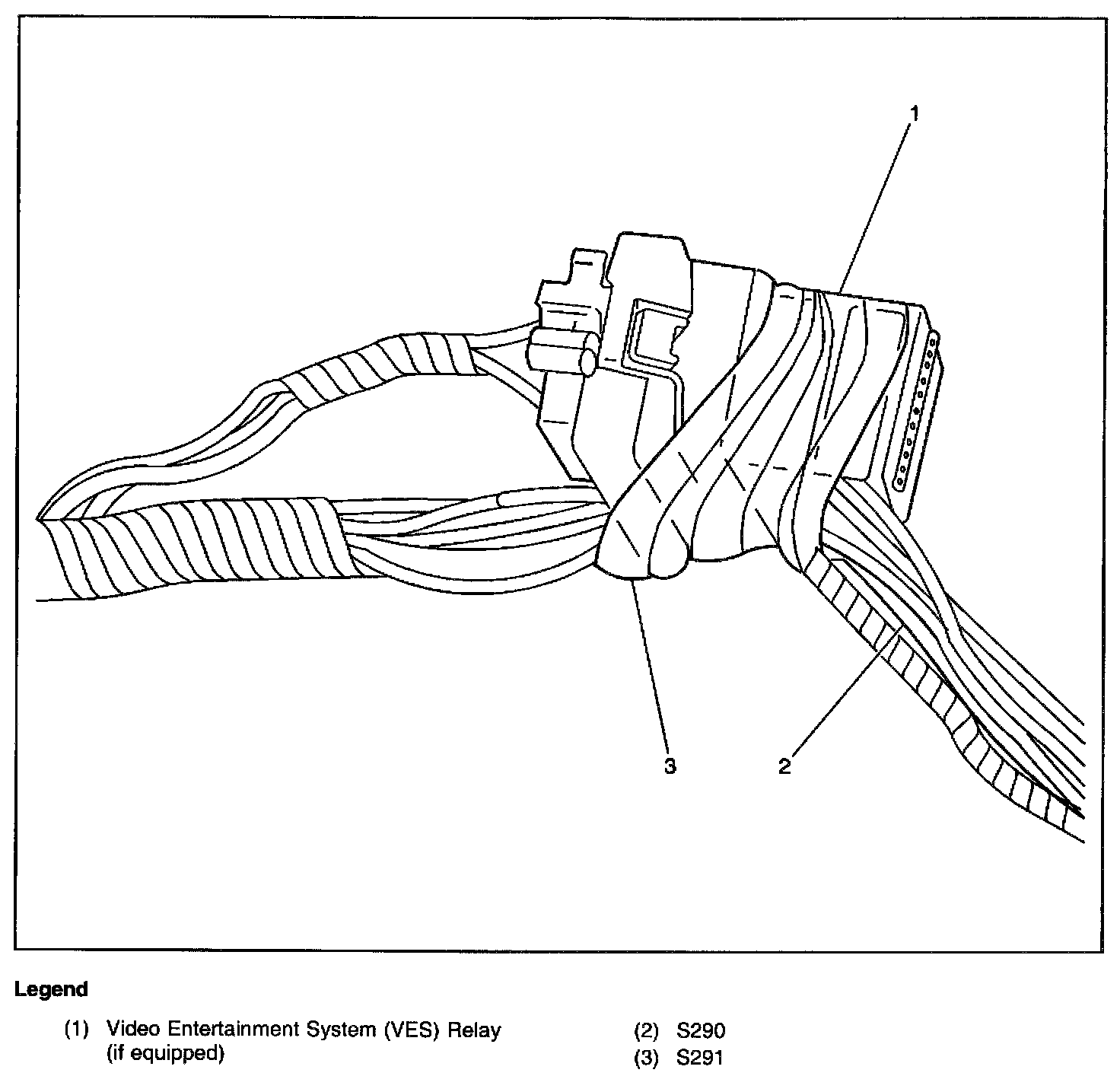

Video Entertainment System (VES) Relay And Splices:

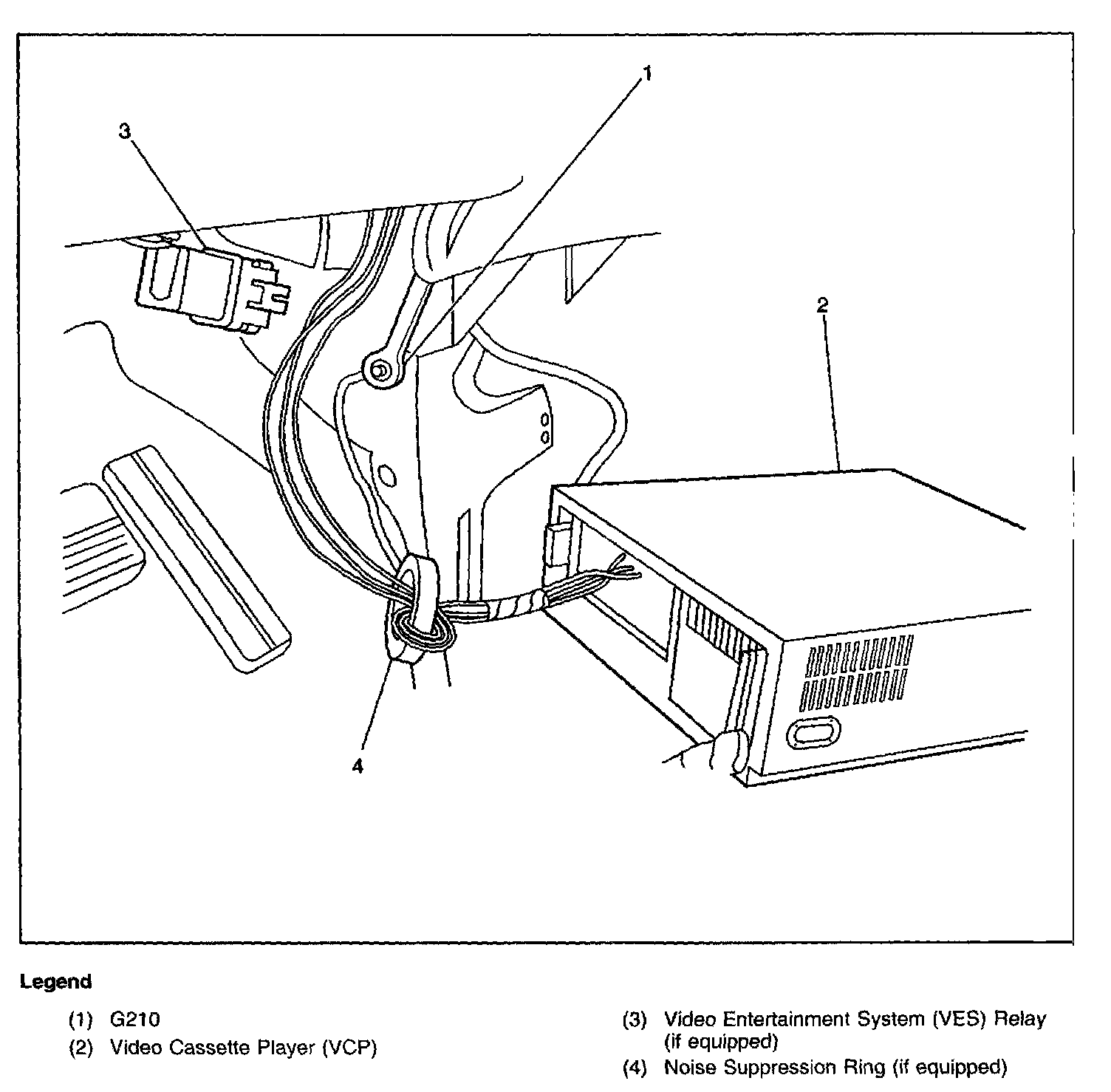

Video Cassette Player (VCP), Video Entertainment System (VES) Relay, And G210:
Underneath Left side instrument panel, near Right side of the Data Link Connector (
DLC), taped to the VCP harness.
