Auxiliary Heater-A/C Control

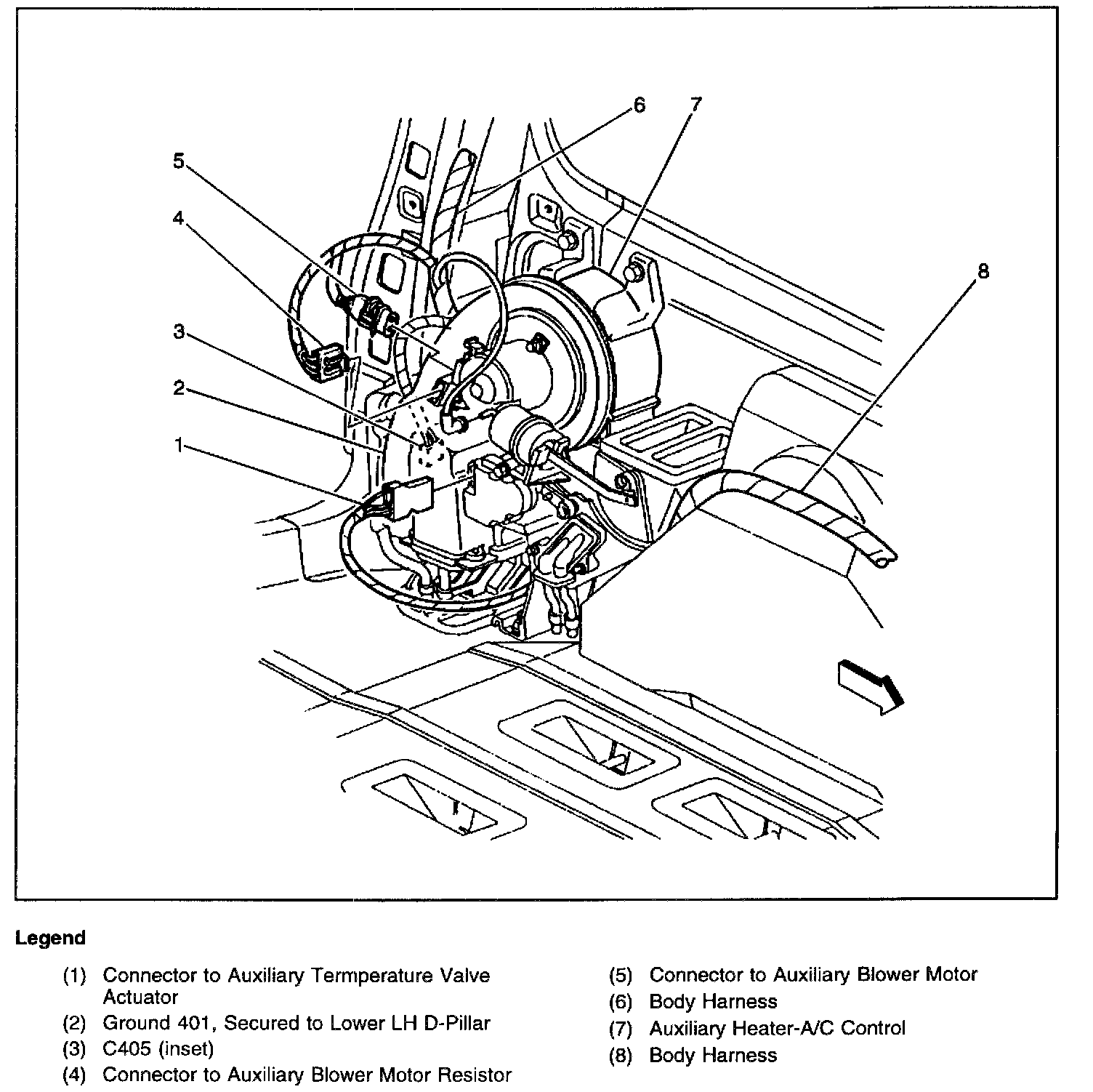

Behind Rear Left Wheelhouse:






4 Door

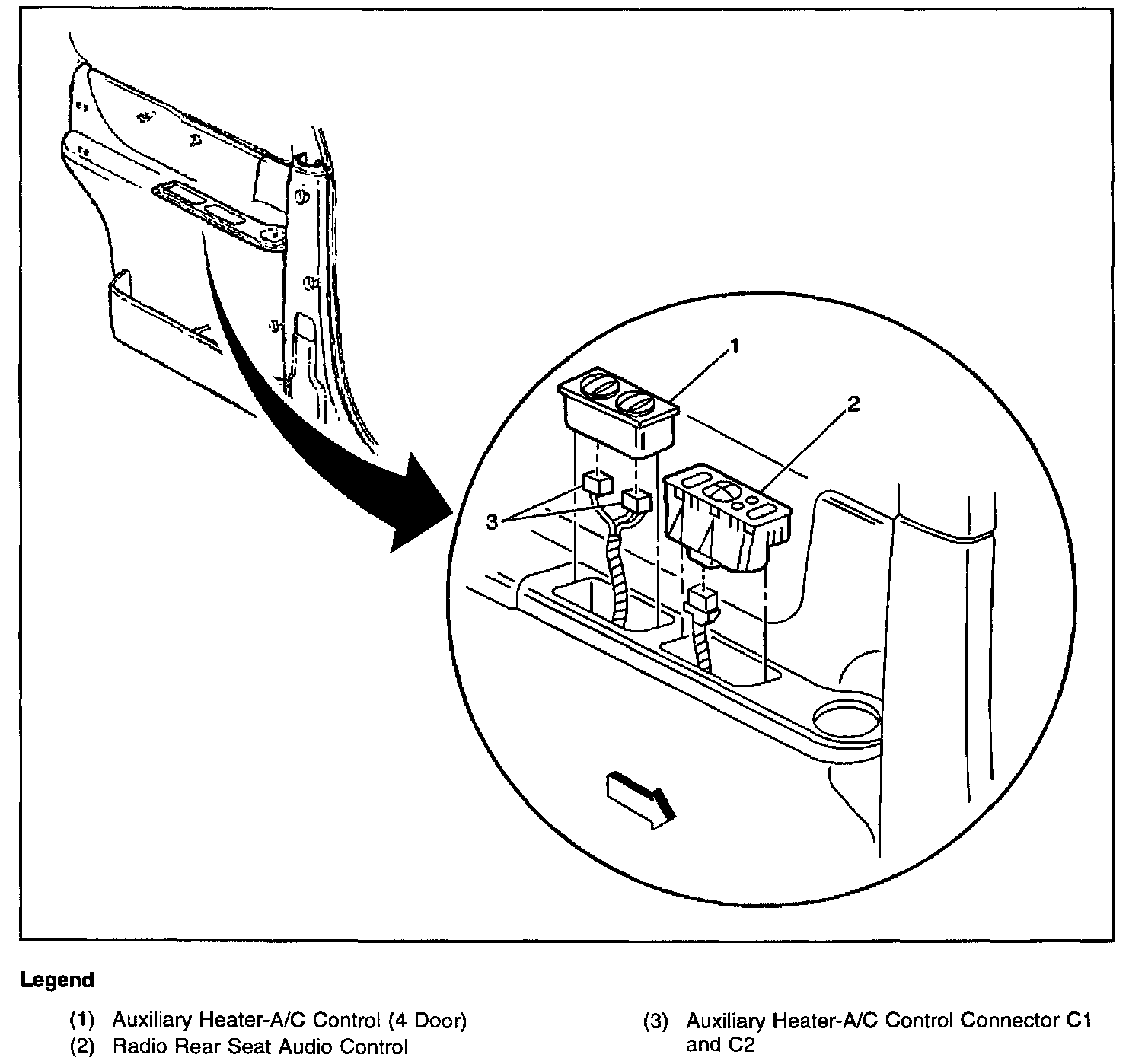

LH Rear Armrest, Auxiliary Heater-A/C Control (4 Door):





Part of the left rear arm rest

5 Door

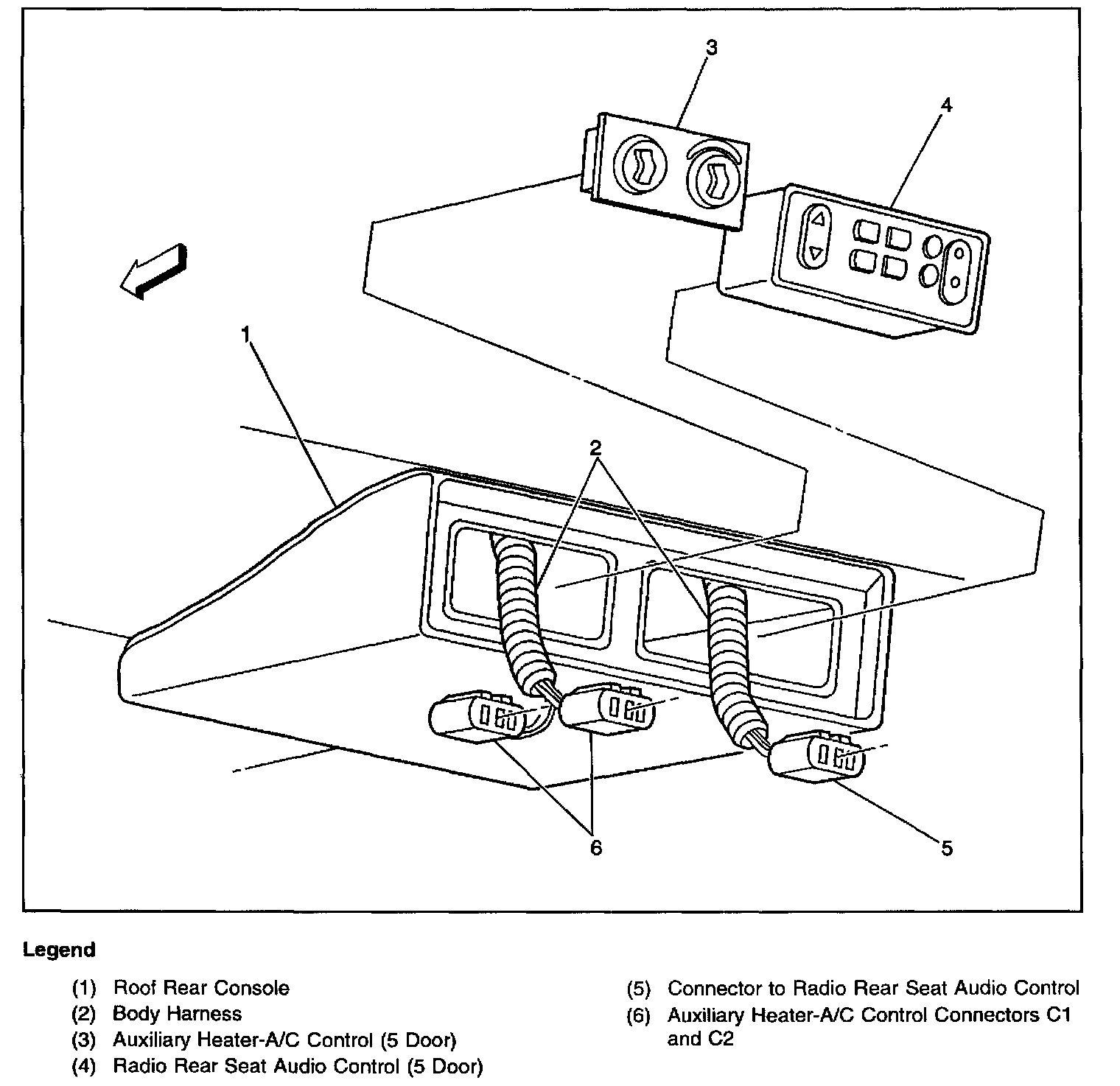

Roof Rear Control, Roof Headliner Behind Driver's Seat (5 Door):





Part of the rear roof console, behind the driver seat
