Transmission Mount, A/T

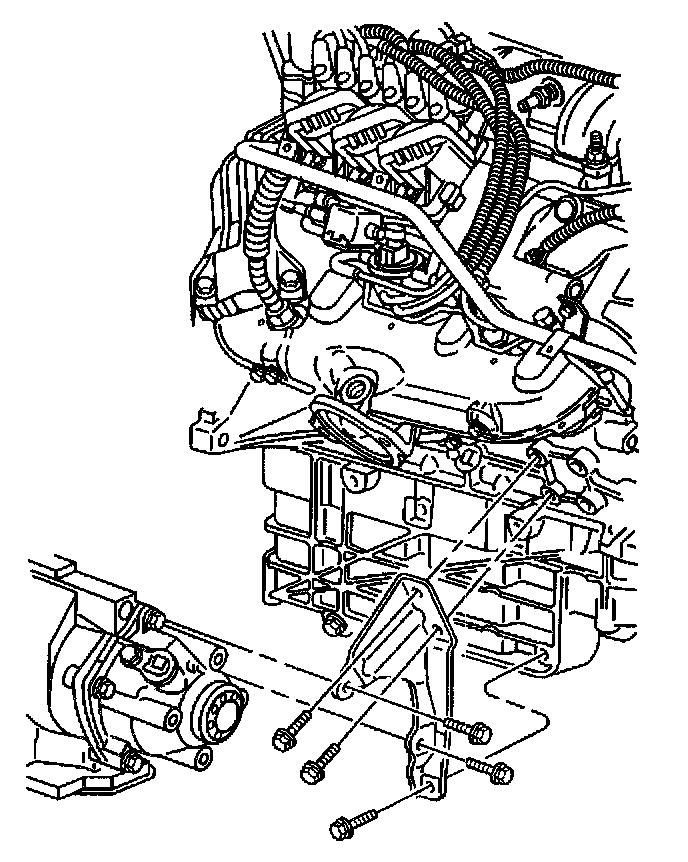

Transaxle Bracket Bolts 95 Nm (70 ft. lbs.)

NOTE: Start with the forward lower bolt and work clockwise to tighten the transaxle bracket bolts.

Transaxle Mount Lower Nuts 47 Nm (35 ft. lbs.)

Transaxle Brace Bolts 43 Nm (32 ft. lbs.)
