Oil Pressure Sensor: Service and Repair
REMOVAL PROCEDURE 1.
Remove the fuel manager/filter.
2.
Disconnect the electrical connector.
3.

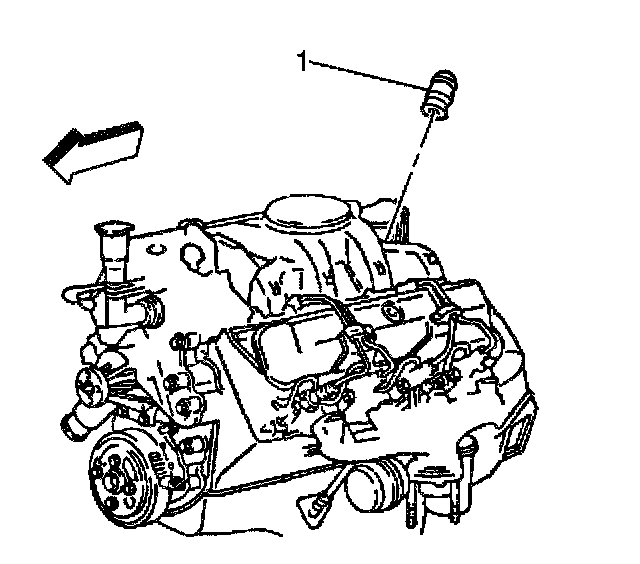

Remove the switch (1).
INSTALLATION PROCEDURE 1.
Install the switch (1).
2.
Reconnect the electrical connector.
3.
Install the fuel manager/filter.
4.
Bleed the fuel system. Refer to Fuel Feed and Fuel Return Pine Purge Procedure.
