Antitheft Relay: Service and Repair

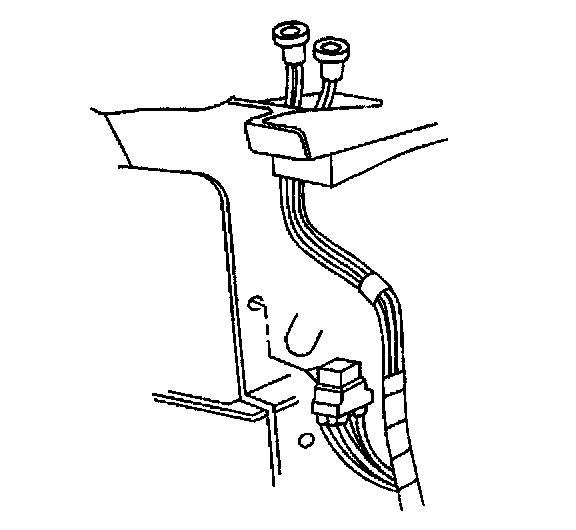

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

2. Remove the relay from the inflatable restraint bracket.
3. Disconnect the electrical connector from the relay.

INSTALLATION PROCEDURE

1. Connect the electrical connector to the relay.
2. Install the relay to the inflatable restraint bracket.

3. Connect the negative battery cable.
