Automatic Transaxle-3T40

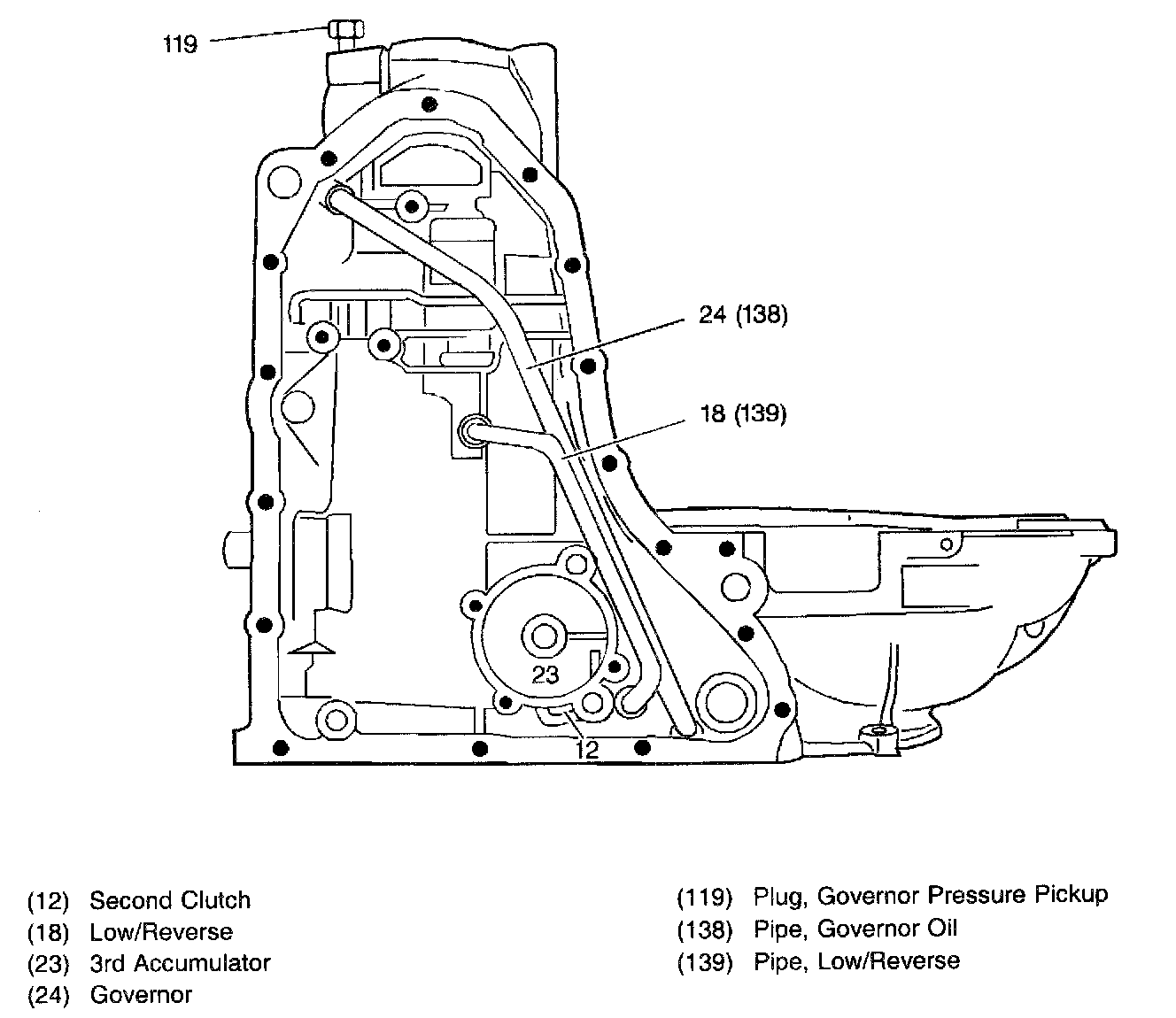

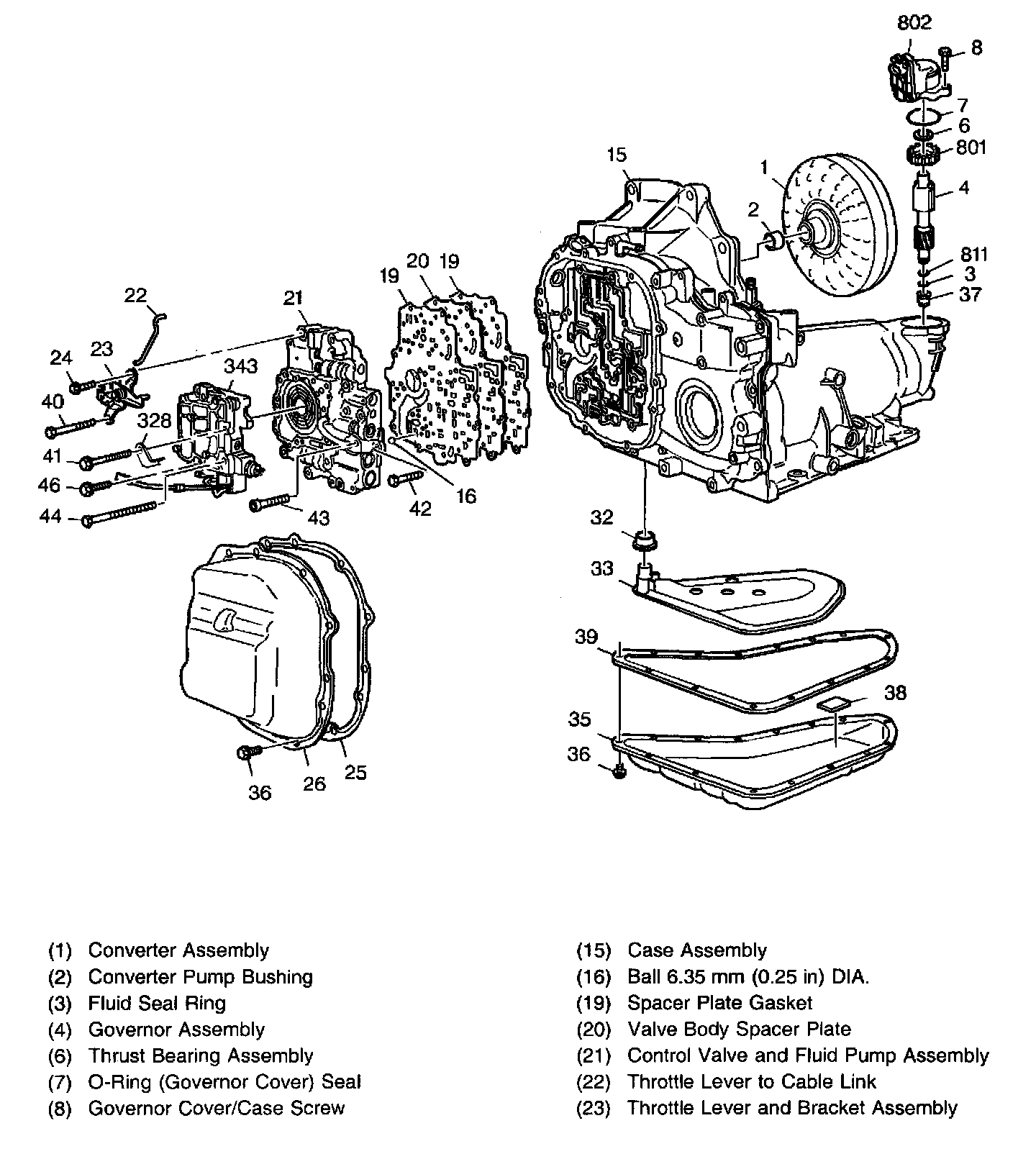

Case and Associated Parts (1 of 3)

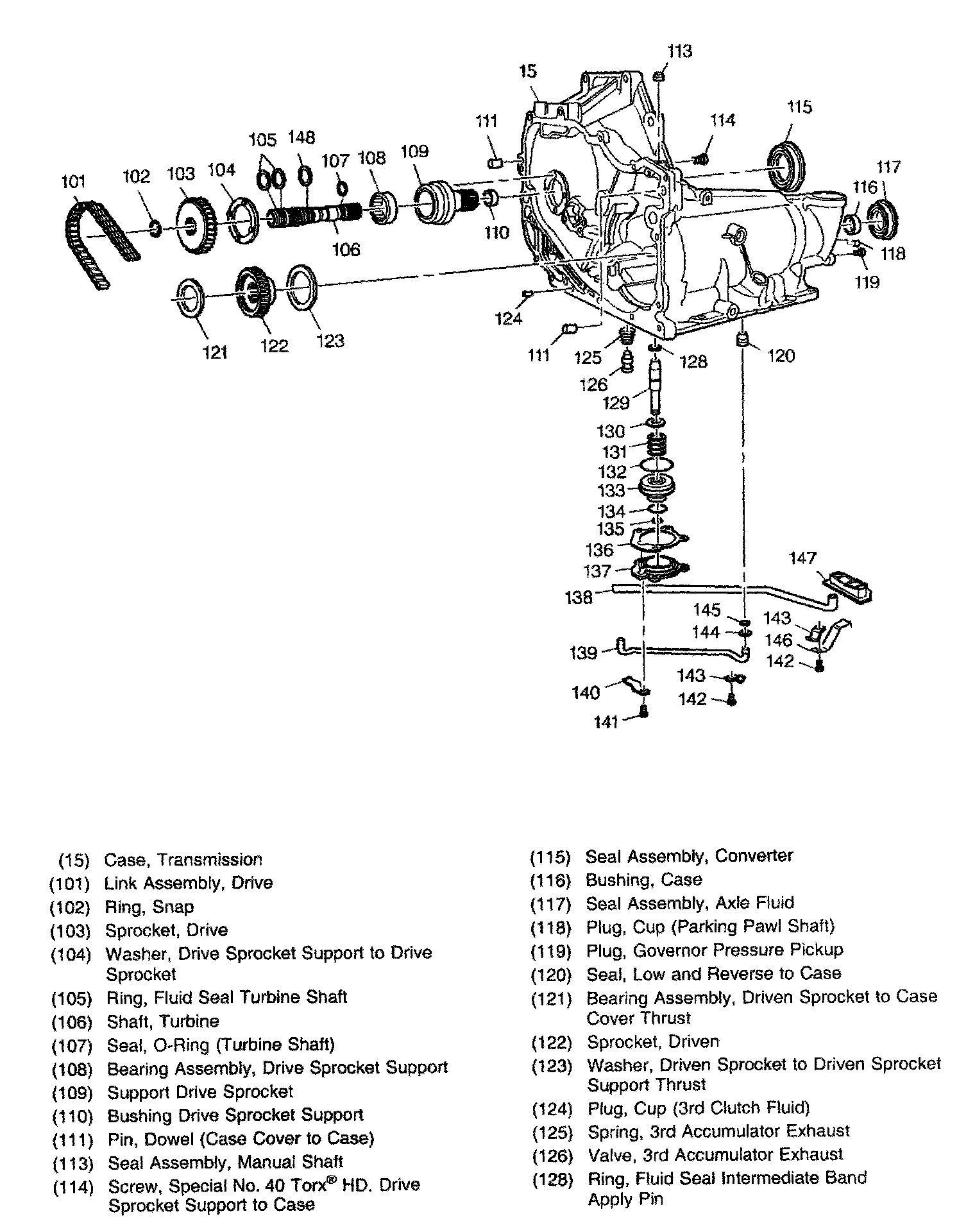

Case and Associated Parts (2 of 3)

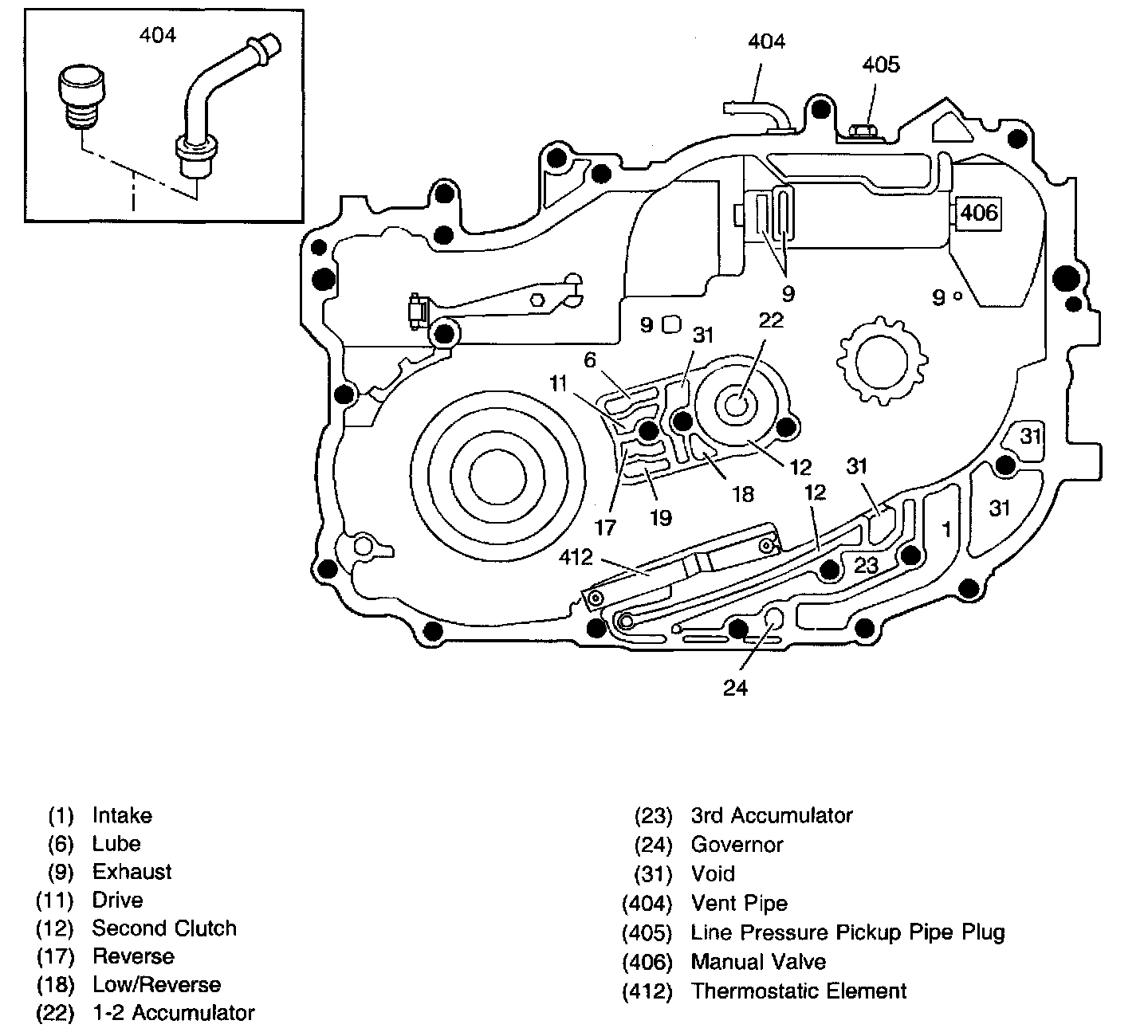

Case and Associated Parts (3 of 3)

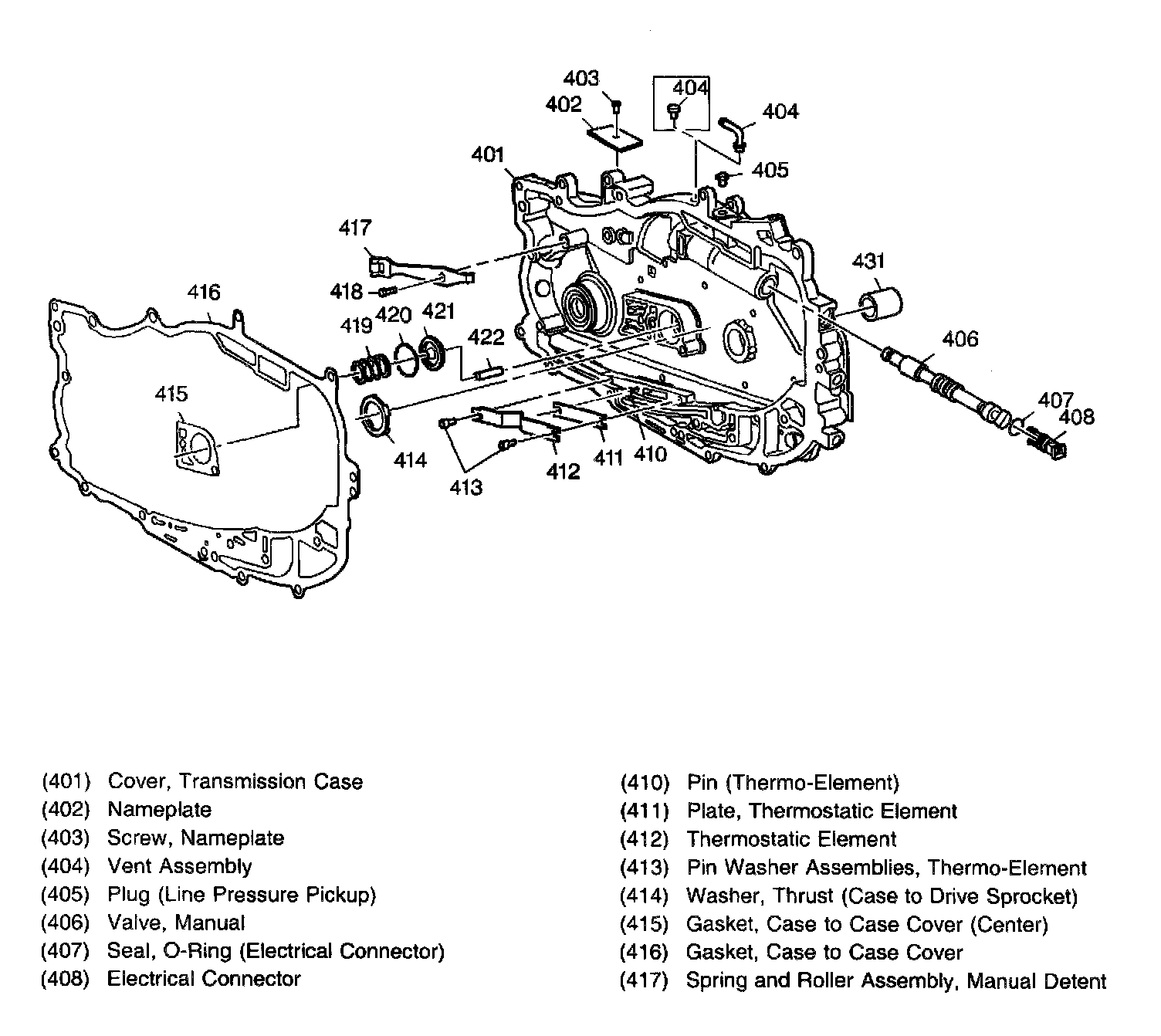

Case Cover Assembly

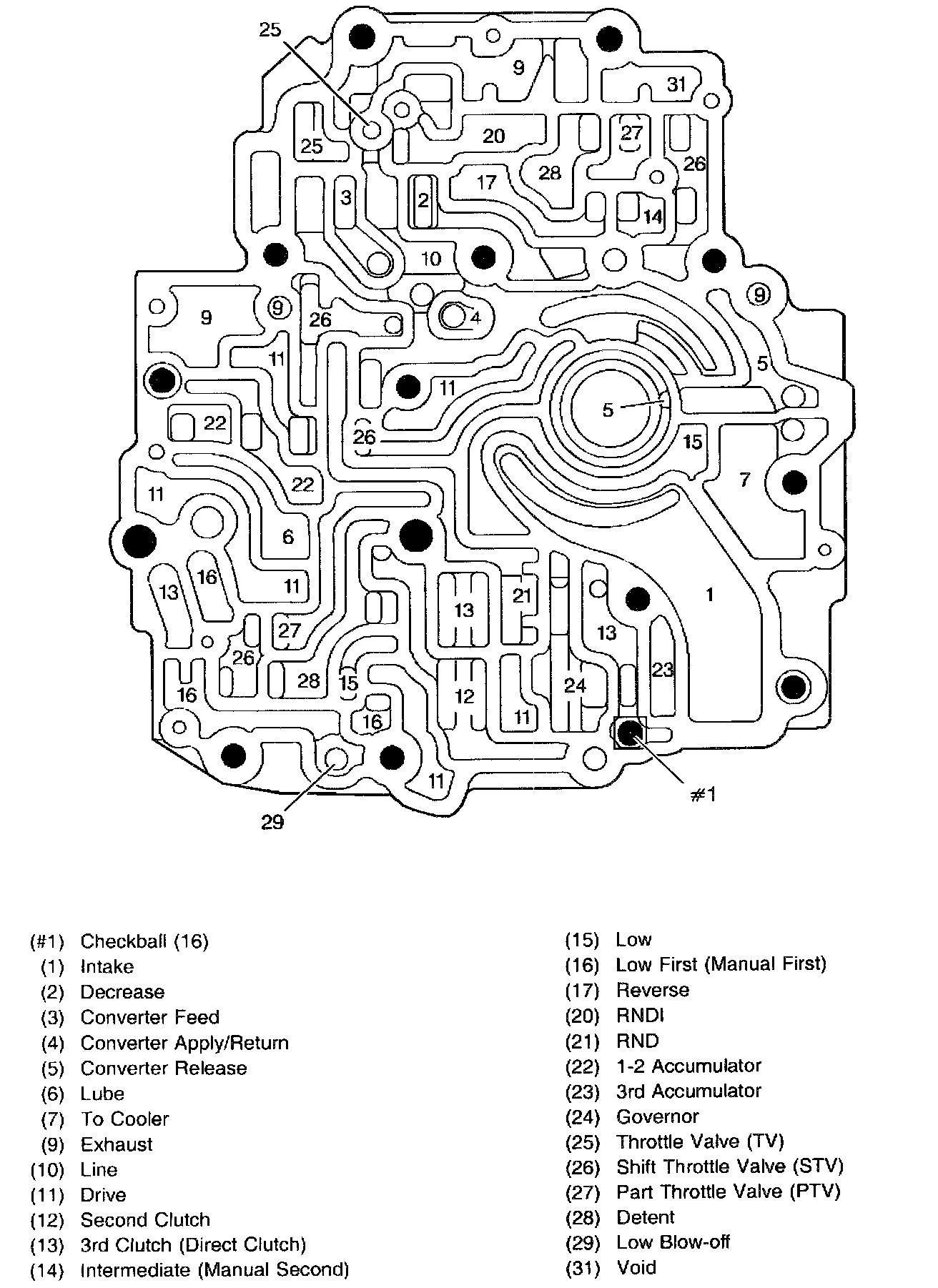

Control Valve Body Fluid Passages (Case Cover Side)

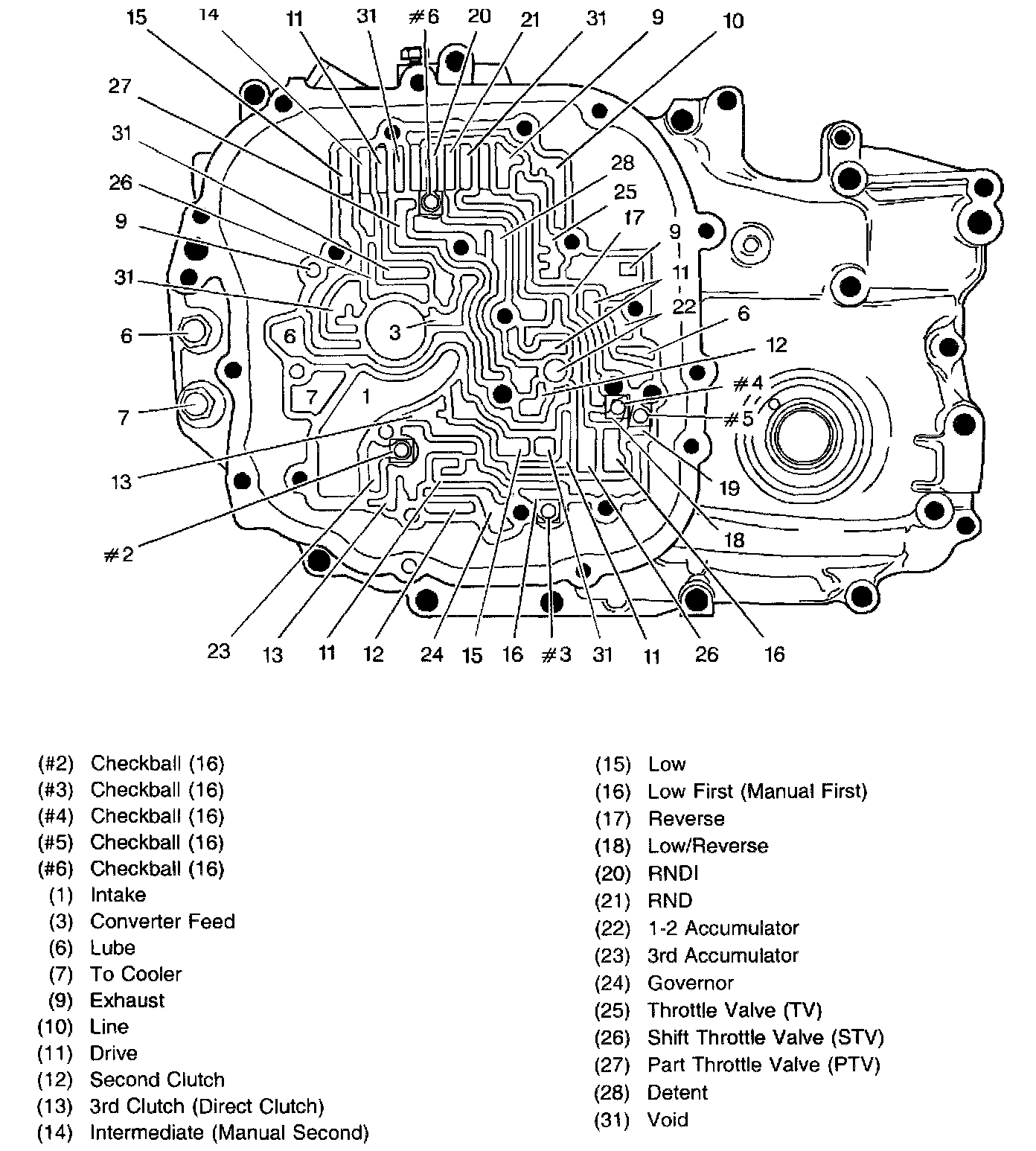

Case Cover Fluid Passages (Control Valve Body Side)






Case Cover Fluid Passages (Case Side)






Case Fluid Passages (Case Cover Side)






Case Fluid Passages (Oil Pan Side)
