Flywheel: Service and Repair

REMOVAL PROCEDURE

Caution: Refer to Battery Disconnect Caution in Service Precautions.





1. Disconnect the negative battery cable.
2. Remove the right splash shield.
3. Remove the transmission.
4. Remove the clutch and pressure plate for the manual transmission.

Important: Mark the relationship of the pressure plate assembly to the flywheel. This will ensure proper balance during assembly.

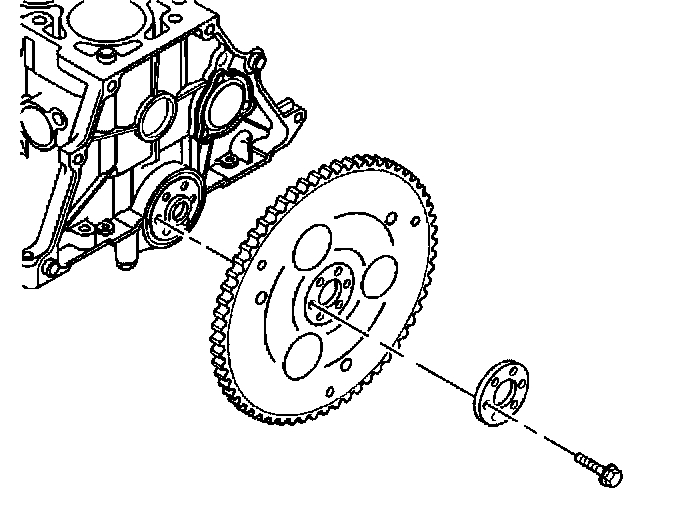

5. Remove the flywheel attaching bolts.
6. Remove the retainer (automatic transmission only).
7. Remove the flywheel.
8. Clean the thread adhesive thoroughly from the flywheel bolts and bolt holes.


INSTALLATION PROCEDURE





1. Apply GM P/N 1052624, or equivalent to all flywheel bolts. Follow instructions carefully to ensure proper bolt retention.

Notice: Refer to Fastener Notice in Service Precautions.

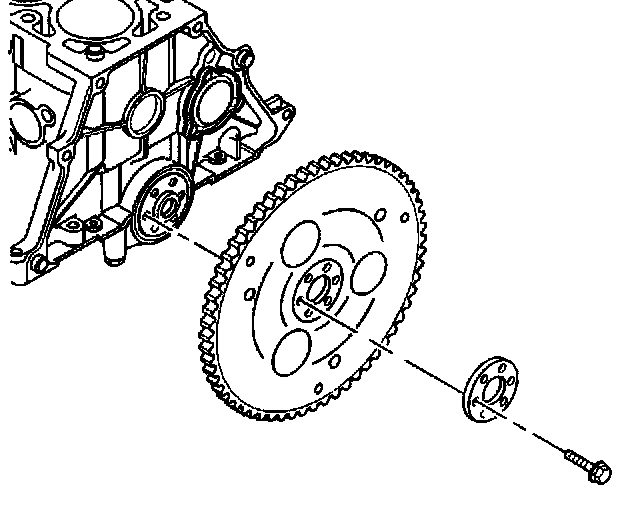

2. Install the flywheel and the bolts.
^ Tighten the bolts to 75 Nm (55 ft. lbs.).
3. Install the clutch and pressure plate for the manual transmission.
4. Install the transmission.
5. Install the right splash shield.
6. Connect the negative battery cable.
^ Tighten the bolts to 16 Nm (12 ft. lbs.).
