Window Glass: Service and Repair

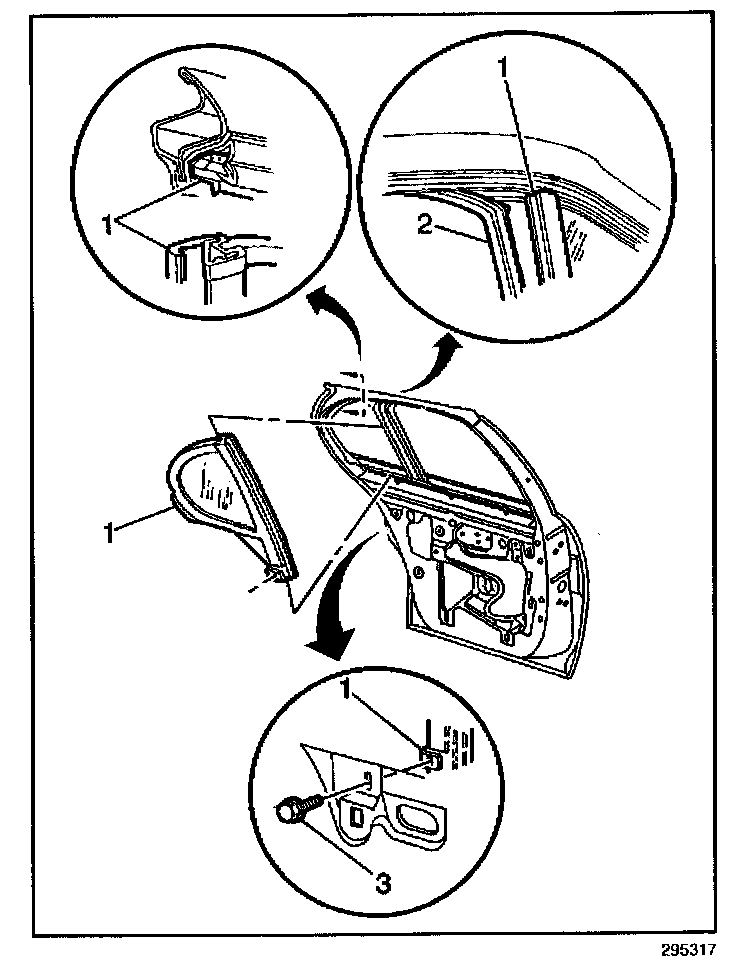

REMOVAL PROCEDURE




1. Remove the rear door window.
2. Remove the vent window screw (3).
3. Pry back the door window weatherstrip (2) from the channel.
4. Remove the upper edge of the vent window (1) from the rear door.
5. Remove the vent window.

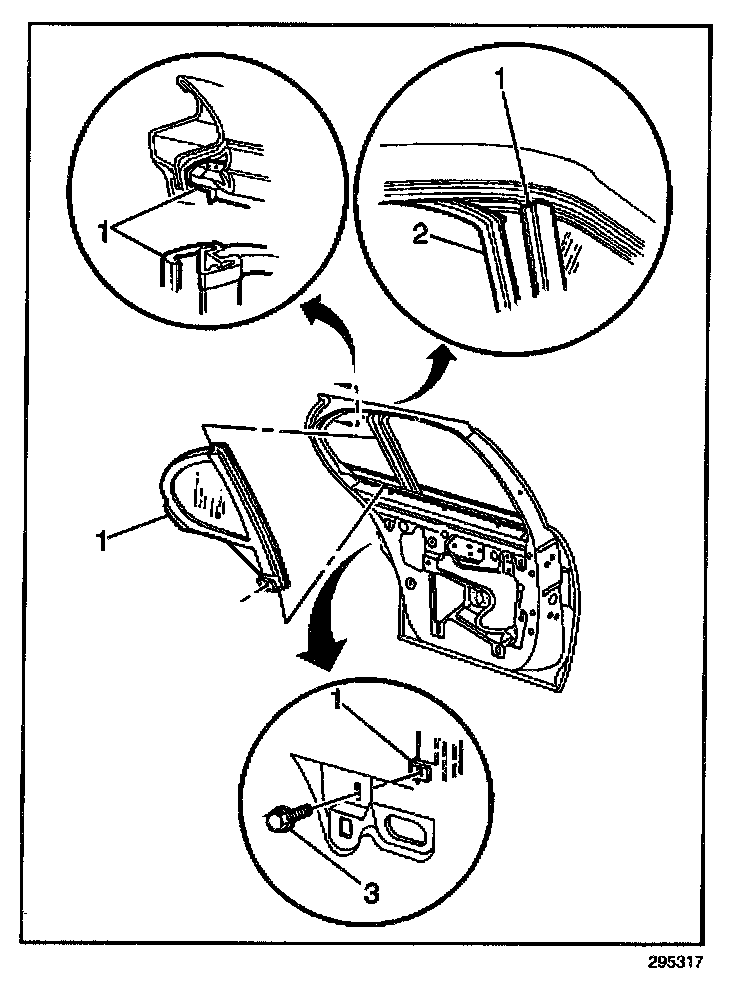

INSTALLATION PROCEDURE




1. Install the vent window (1) to the opening of the door window channel (2) from the inboard vehicle.
Align the top corner of the window to the channel guide pin.
2. Seat the window in the channel weatherstrip.
Push the bottom of the window upward in order to ensure proper seating.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the vent window screw (3).

Tighten
Tighten the vent window screw to 10 N.m (89 lb in).

4. Install the rear door window.
