Mirrors: Service and Repair

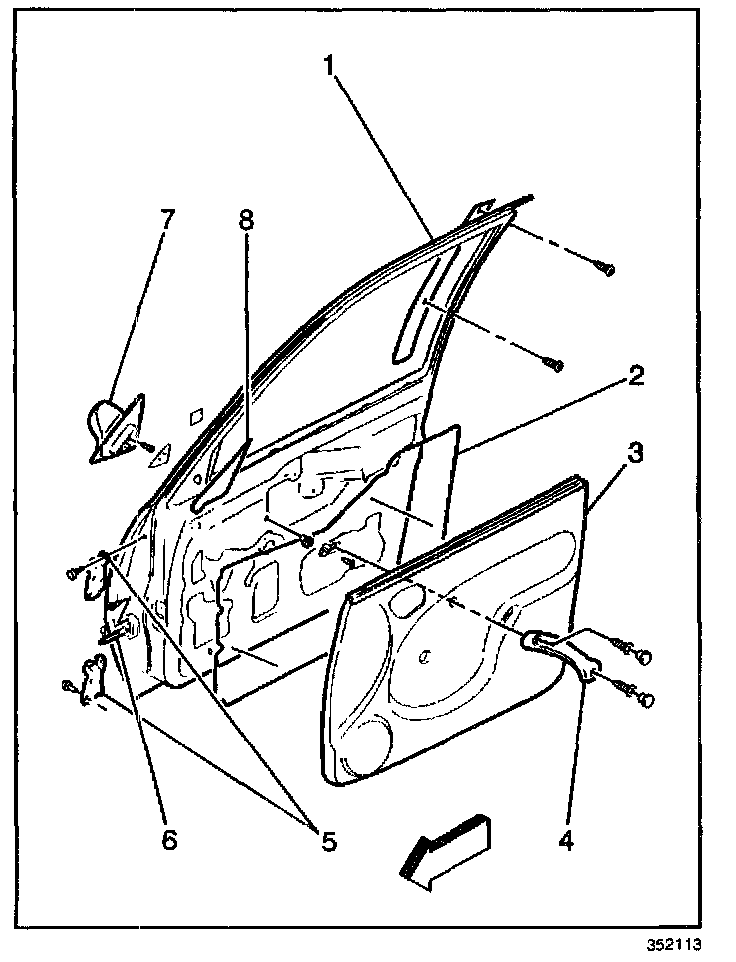

REMOVAL PROCEDURE




1. Gently pry off the inner mirror garnish (8).
2. Remove the following components from the door by removing the following items:
2.1. Three screws
2.2. The mirror assembly (7)
2.3. The mirror gasket
3. Remove the outer mirror bezel from the door.

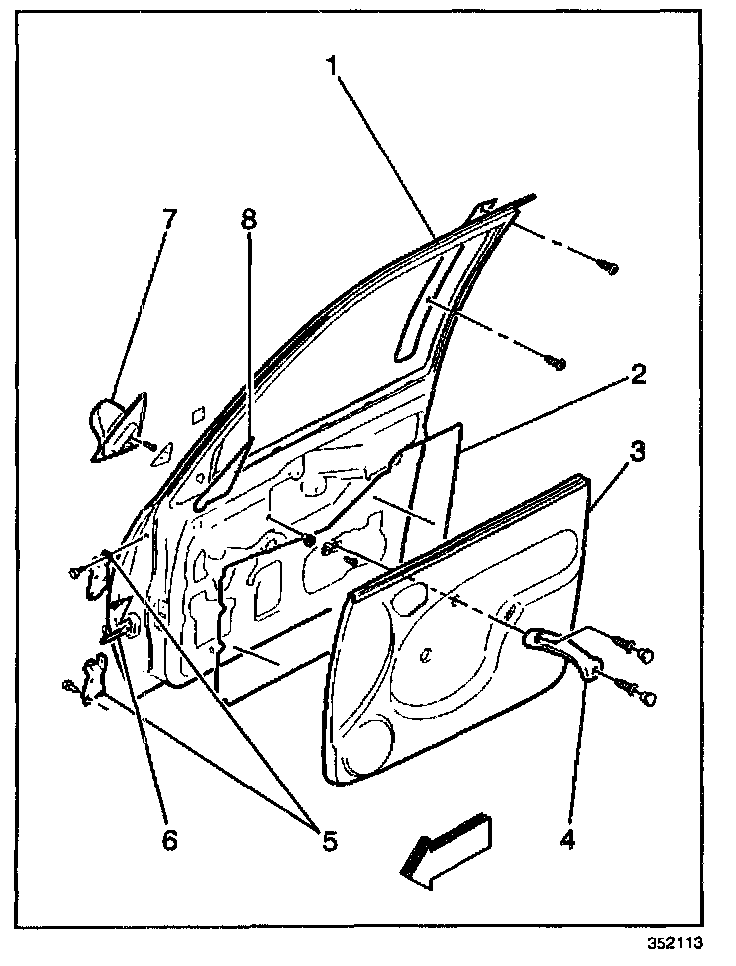

INSTALLATION PROCEDURE




1. Install the gasket to the mirror (7).
2. Install the mirror assembly (7) to the door. Secure the mirror with the 3 screws.
3. Snap the inner mirror garnish (8) into place on the door.
