Front Door Window Regulator: Service and Repair

REMOVAL PROCEDURE




1. Remove the front window.

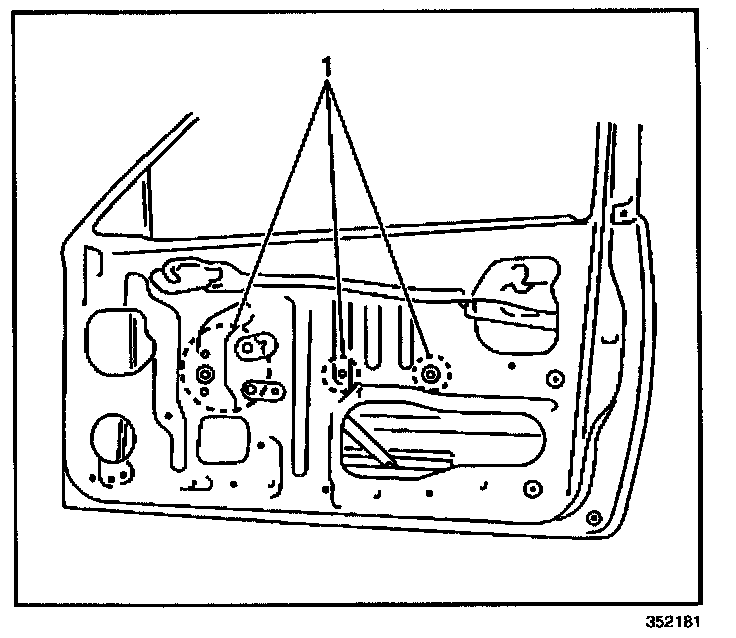

2. Pull the water deflector far enough away from the door in order to gain access to the 6 regulator retaining screws (1).
3. Remove the 6 screws (1) that retain the regulator.
4. Remove the regulator through the large opening in the door panel.

INSTALLATION PROCEDURE

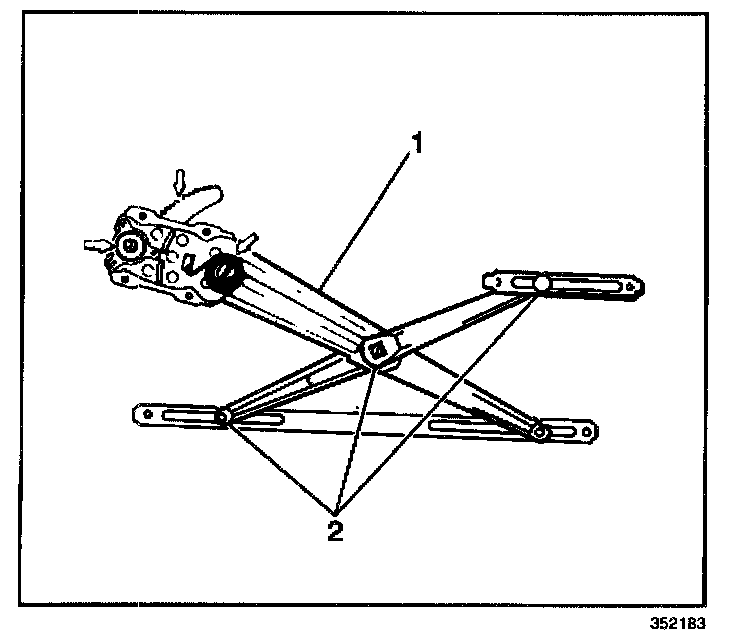

1. Apply a multipurpose grease to all of the lubrication and sliding points (2) on the regulator (1).




2. Install the regulator to the door. Secure the regulator with 6 screws (1).
3. Apply adhesive to the back of the water deflector.
4. Return the water deflector to its normal position.
5. Install the front window.
