PSD Open/Close Switch B-Pillar Replacement

Power Sliding Door (PSD)

REMOVAL PROCEDURE
1. Turn off the PSD from the root console switch bank.

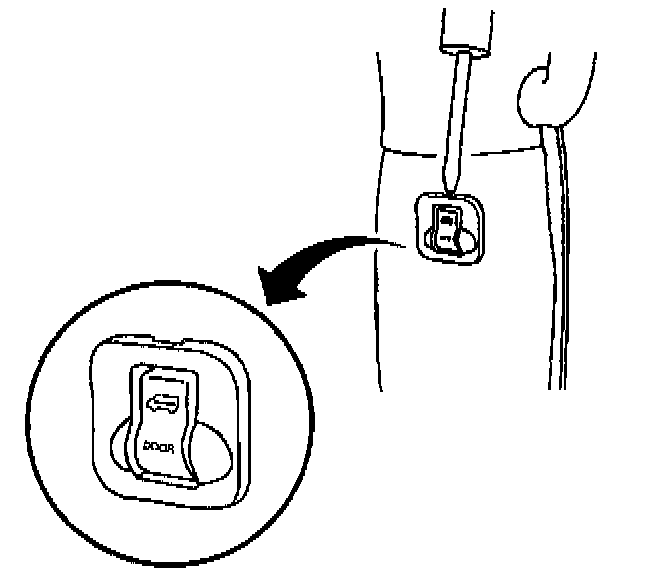

2. Remove the PSD OPEN/CLOSE switch from the B-pillar trim.
3. Disconnect the electrical connector from the PSD OPEN/CLOSE switch.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the PSD OPEN/CLOSE switch.
2. Install the PSD OPEN/CLOSE switch to the B-pillar trim.
3. Turn the PSD ON from the roof console switch bank.
