Ambient Light Sensor: Service and Repair

DRL Ambient Light Sensor Replacement




REMOVAL PROCEDURE
1. Remove the instrument panel upper trim.
2. Remove the security system lamp.

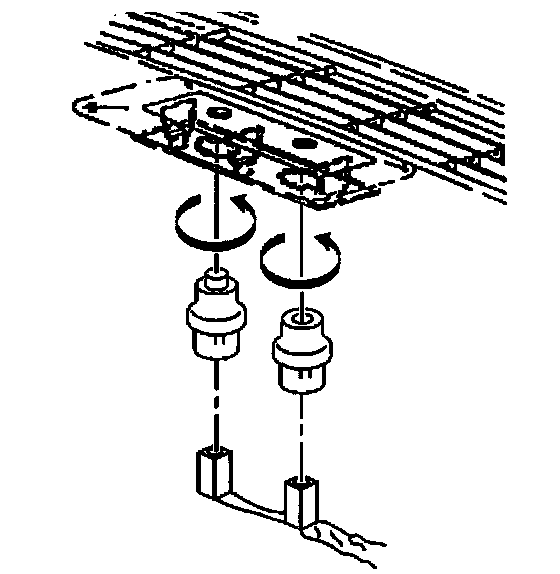

3. Twist the daytime running lamp sensor counterclockwise in order to remove the sensor from the instrument panel upper trim.
4. Remove the daytime running lamp sensor from the wiring harness.

INSTALLATION PROCEDURE
1. Install the daytime running lamp sensor to the wiring harness.
2. Position the daytime running lamp sensor in the instrument panel upper trim and twist in order to secure.
3. Install the security system lamp.
4. Install the instrument panel upper trim.
