Wiper Motor Module Replacement

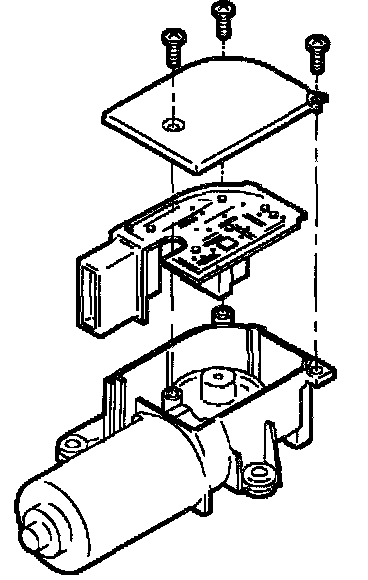

REMOVAL PROCEDURE
1. Disconnect the electrical connector from the wiper motor.
2. Remove the wiper motor cover screws.
3. Remove the wiper motor cover.
4. Remove the wiper motor module.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions

1. Install the wiper motor module.
2. Install the wiper motor cover.
3. Install the wiper motor cover screws.

Tighten
Tighten the screws to 2.6 N.m (23 lb in).

4. Connect the electrical connector to the wiper motor.
