Control Assembly Bulb Replacement

REMOVAL PROCEDURE

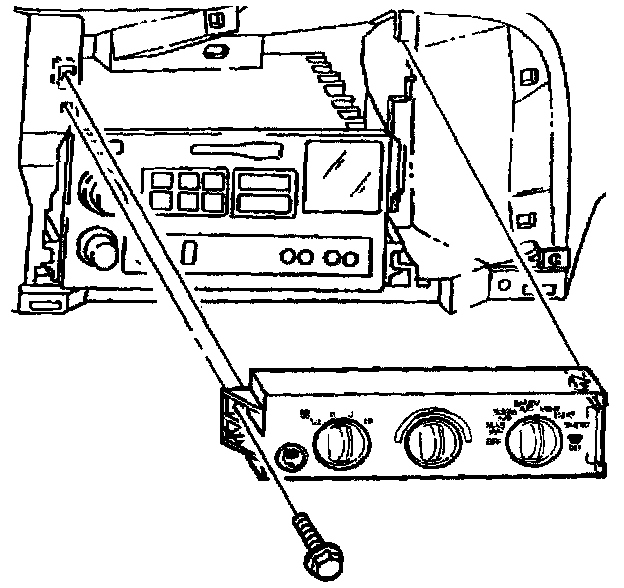

1. Remove the control assembly. Refer to Control Assembly Replacement.

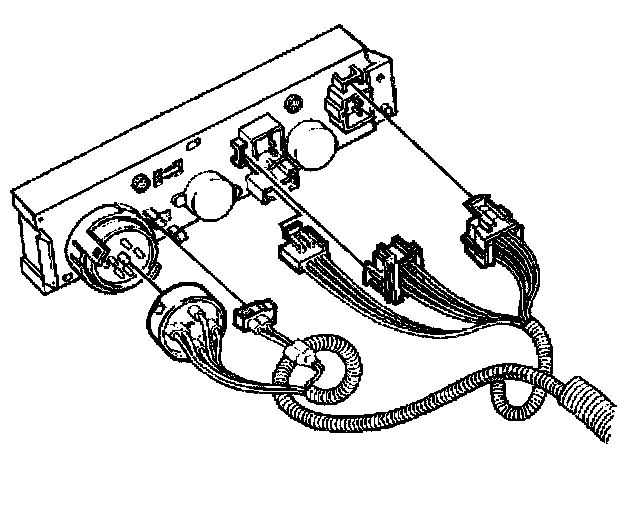

2. Use the following procedure in order to remove the lamp bulb and the socket:
2.1. Turn the lamp bulb and the socket counter-clockwise 1/4 turn. The bulbs are located behind the heater control, at the top edge of the assembly.
2.2. Gently lift the lamp bulb and the socket out of the control assembly.
3. Ensure that the control assembly lamp connections are free from the following conditions:
^ Corrosion
^ Damage
4. Clean or replace the connections, as necessary.

INSTALLATION PROCEDURE




1. Insert the new lamp bulb and the socket into the control assembly.
2. Secure the new lamp bulb and the socket to the control assembly by turning the bulb clockwise 1/4 turn.




3. Install the control assembly.
