Engine Flywheel Replacement

Removal Procedure

^ Tools Required
- J 37096 Flywheel Holding Tool





1. Remove the automatic transmission.
2. Use the J 37096 to hold the flywheel to loosen the flywheel bolts.





5. Remove the following components:

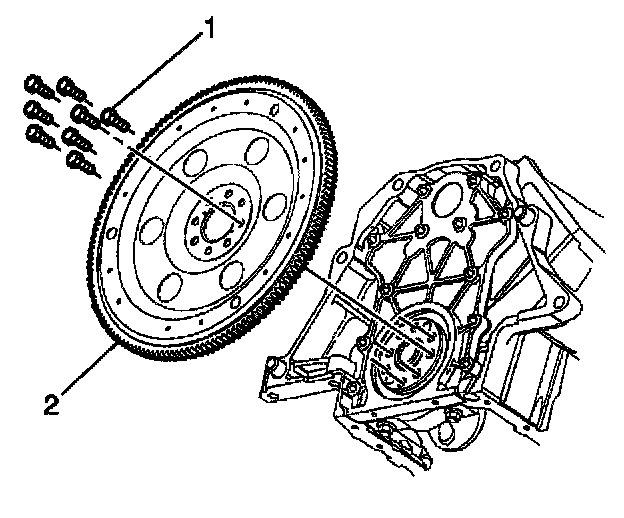

5.1. Remove the flywheel bolts (1).
5.2. Remove the flywheel (2).


Installation Procedure

^ Tools Required
- J 36660-A Torque Angle Meter
- J 37096 Flywheel Holding Tool





1. Install the following components:

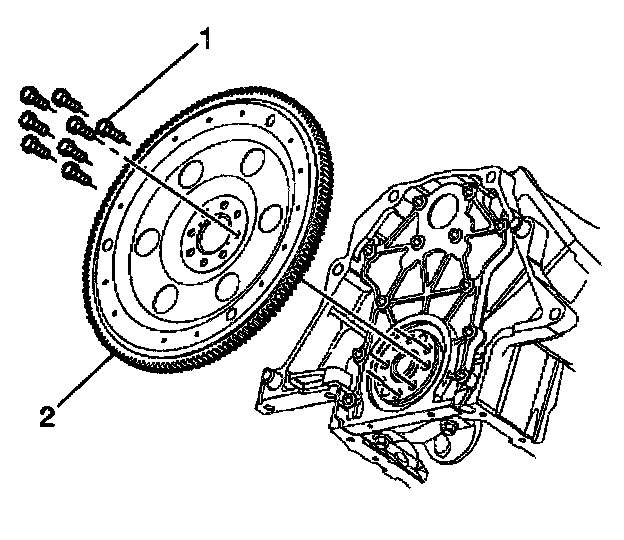

1.1. Install the flywheel (2).
1.2. Install the flywheel bolts (1) finger tight.





2. Use the J 37096 to hold the flywheel when tightening the flywheel bolts.

Notice: Refer to Fastener Notice in Service Precautions.

3. Tighten the flywheel bolts.
^ Tighten the flywheel bolts to 15 Nm (11 ft. lbs.). Use the J 36660-A to torque the flywheel bolts an additional 50 degrees.
5. Install the automatic transmission.
