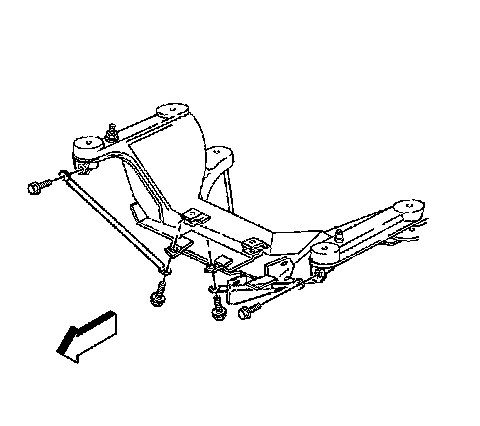

Front Crossmember Brace Replacement



Front Crossmember Brace Replacement

Removal Procedure

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.




2. Remove the bolts that attach the braces to the front crossmember.




3. Remove the braces from the front crossmember.

Installation Procedure




1. Connect the braces to the front crossmember.

Notice: Refer to Fastener Notice in Service Precautions.




2. Install the bolts that attach the braces to the front crossmember.

Tighten the crossmember brace bolts to 29 N.m (21 lb ft).

3. Lower the vehicle.
