Shift Control Assembly Replacement

Removal Procedure





1. Remove the shift control closeout boot.
2. Remove the shift control bolts.
3. Remove the control.
4. Clean the old sealant from the housing and the shift control sealing surfaces.


Installation Procedure

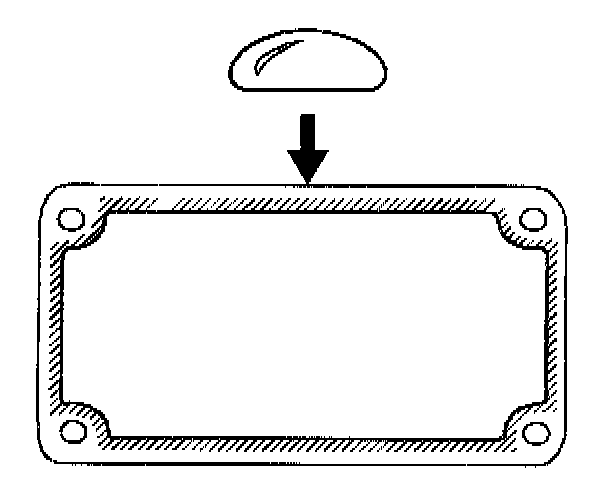

1. Apply a continuous 3 mm (0.125 inch) bead of RTV Sealant on the extension housing-to-shift control sealing surface, Use GM P/N 12345739 or equivalent.





2. Install the shift control.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the shift control bolts.
^ Tighten the shift control bolts to 18 Nm (13 ft. lbs.).
4. Install the shift control closeout boot.
