Front Bumper Reinforcement: Service and Repair



Front Bumper Impact Bar Replacement

Removal Procedure




1. Remove the front fascia.
2. Remove the energy absorber bar.

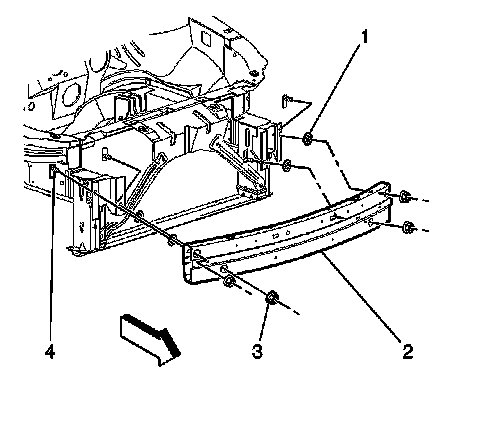

3. Remove the nuts (3) from each side of the impact bar (2).
4. Remove the impact bar (2) from the vehicle.

Installation Procedure




1. Install the impact bar (2) the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the 2 nuts (3) to each side of the impact bar (2).

Tighten the nuts and the bolts to 27 N.m (20 lb ft).

3. Install the energy absorber bar to the impact bar.
4. Install the fascia.
