Arm Rest: Service and Repair

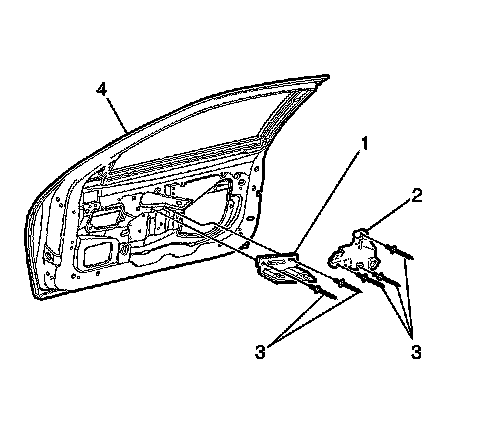

Armrest Bracket Replacement (Chevrolet)Removal Procedure 1.
Remove the front door
trim panel.
2.
Remove the rivets (3) which retain the front door armrest hanger plate (1).
3.
Remove the front door armrest hanger plate (1).
Installation Procedure 1.
Install the front door armrest hanger plate (1).
2.
Install the rivets (3) to the front door hanger plate.
3.
Install the front door
trim panel.
