Scuff Plate: Service and Repair

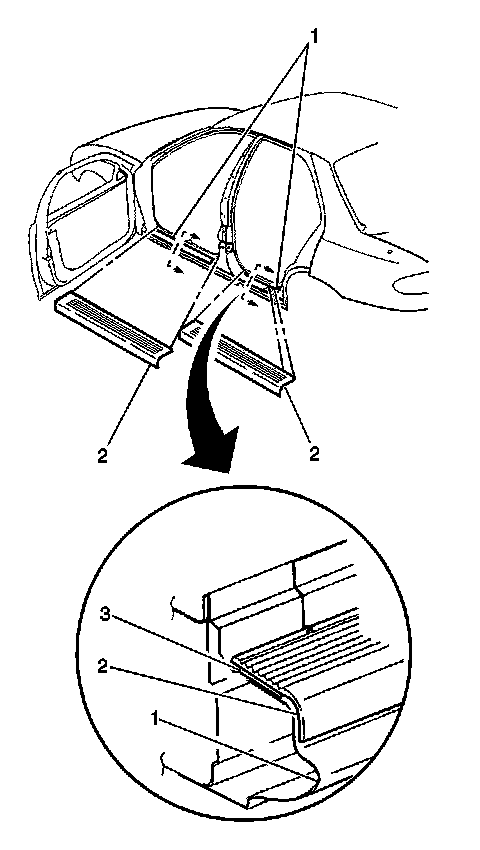

Door Sill Plate ReplacementRemoval Procedure 1.
Use a flat blade tool in order pry the door sill trim plate (2) upward.
2.
Clean the tape (1) from the door sill.
3.
If you are reusing the trim plate, clean the door sill trim plate (2).
Installation Procedure 1.
Install tape (1) to the door sill trim plate (2).
2.
Install the door sill trim plate (2).
