Interior Moulding / Trim: Service and Repair

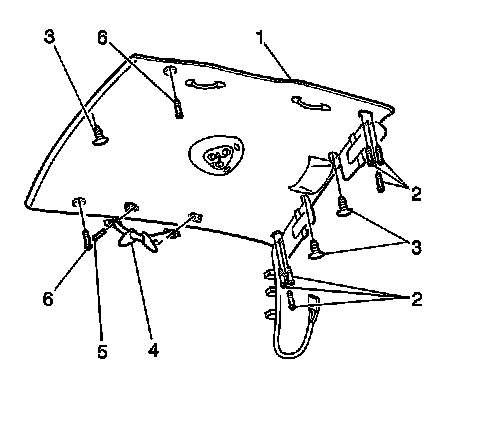

Coat Hook ReplacementRemoval Procedure 1.
Remove the coat hook fastener (6).
2.
Remove the coat hook.
Installation Procedure 1.
Install the coat hook.
Notice: Refer to Fastener Notice in Service Precautions.
2.
Install the coat hook fastener (6).
Tighten the coat hook fastener to 2 N.m (18 lb in).
