Passenger Front EZ Entry Seat Replacement



Passenger Front EZ Entry Seat Replacement

Normal seat adjuster travel is 180 mm (7 in) from the full rear position to the full forward position. The E-Z entry adjuster travel is 140 mm (5.5 in) when the seat is in the full-rear position.

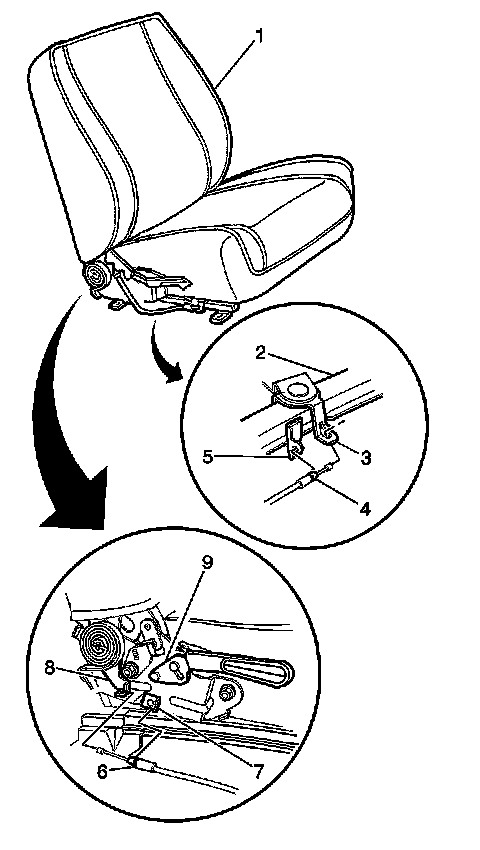

Removal Procedure-E-Z Entry

1. Remove the driver or passenger front seat.




2. Remove the E-Z entry adjuster cable (4) from the seat adjuster (2) and (3).
3. Remove the front seat recliner (9).

Installation Procedure

1. Install the front seat recliner.




2. Install the E-Z entry adjuster cable (4) to the front seat recliner (9).
3. Install the E-Z entry adjuster cable to the seat adjuster (2) and (3).
4. Install the driver or passenger front seat.
