Cargo Lamp Switch: Service and Repair
REMOVAL PROCEDURE 1.
Remove the rear window panel trim.
2.
Disconnect the electrical connector
3.

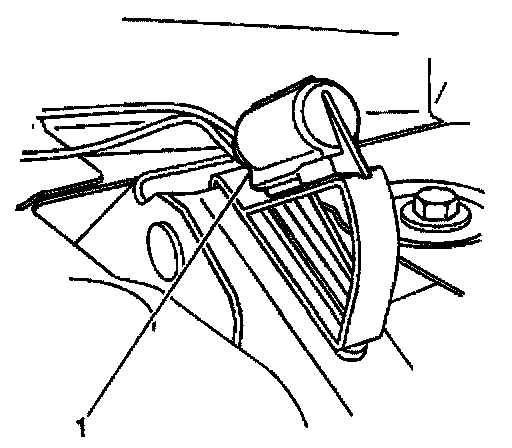

Slide the switch (1) out from the bracket.
INSTALLATION PROCEDURE 1.
Connect the electrical connector.
2.
Install the switch (1).
3.
Install the rear window panel trim.
