Cargo Lamp: Service and Repair




REMOVAL PROCEDURE
1. Lift the deck lid to access the cargo lamp assembly.

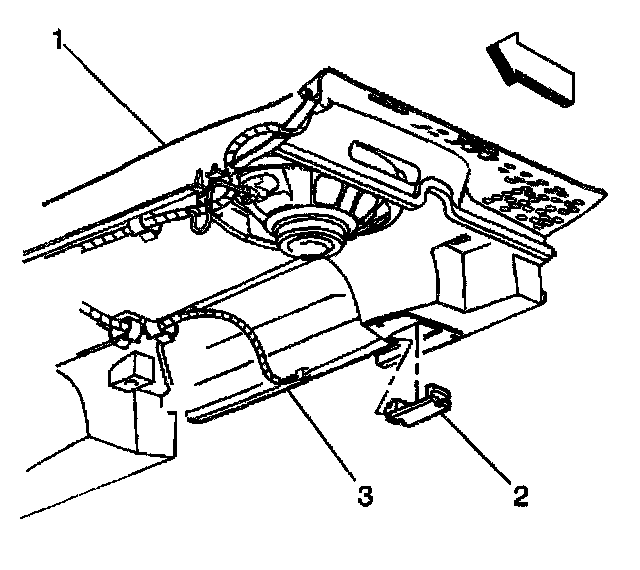

2. Release the tabs that retain the rear compartment lamp to the rear shelf panel.
3. Disconnect the electrical connector (3) from lamp assembly (2).
4. Pull the bulb to remove.

INSTALLATION PROCEDURE
1. Push the bulb into socket.
2. Install the bulb into the rear compartment lamp assembly (1).
3. Reconnect the electrical connector (3).
4. Press the rear compartment lamp (2) into the rear shelf panel in order to engage the tabs.
