Fog/Driving Lamp Relay: Service and Repair
REMOVAL PROCEDURE 1.
Remove the upper air intake splash shield.
2.

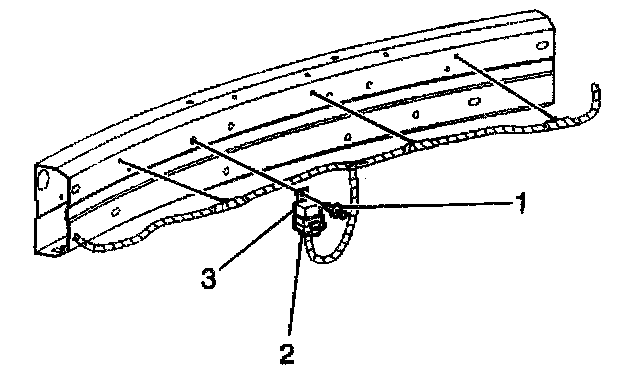

Remove the fog lamp relay fastener (1) from behind the left side of the front impact bar.
3.
Remove the relay (3).
4.
Disconnect the electrical connector (2).
INSTALLATION PROCEDURE 1.
Connect the electrical connector.
2.
Install the relay fastener.
3.
Install the upper air intake splash shield.
