Fog/Driving Lamp Switch: Service and Repair

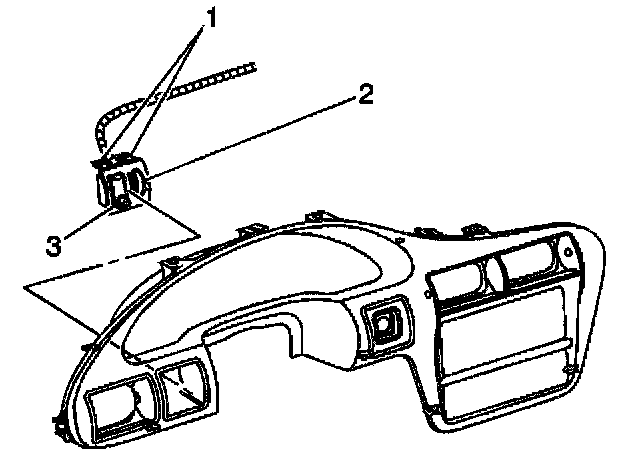

Location View:




REMOVAL PROCEDURE
1. Remove the trim plate from the instrument panel cluster.
2. Remove the fog lamp switch (3).

INSTALLATION PROCEDURE
1. Install the fog lamp switch (3).
2. Install the trim panel to the instrument panel cluster.
