Child Restraint: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: Replace the anchor bracket if the anchor bracket is damaged.

1. Use a flat-bladed tool in order to pry the tether anchor bezel upward. Remove the bezel.
2. Remove the tether anchor bolt.
3. Remove the anchor bracket.

INSTALLATION PROCEDURE

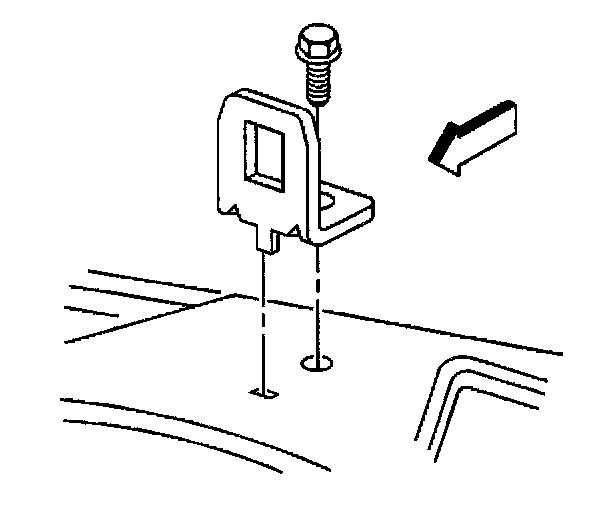

1. Install the anchor bracket to the anchor bracket mounting plate.

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: DO NOT use a nut driver to tighten this hardware or the fasteners will not be properly seated.

2. Install the tether anchor bolt.

Tighten the bolt until the bolt is fully seated. Do not strip the bolts.
