Internal Components

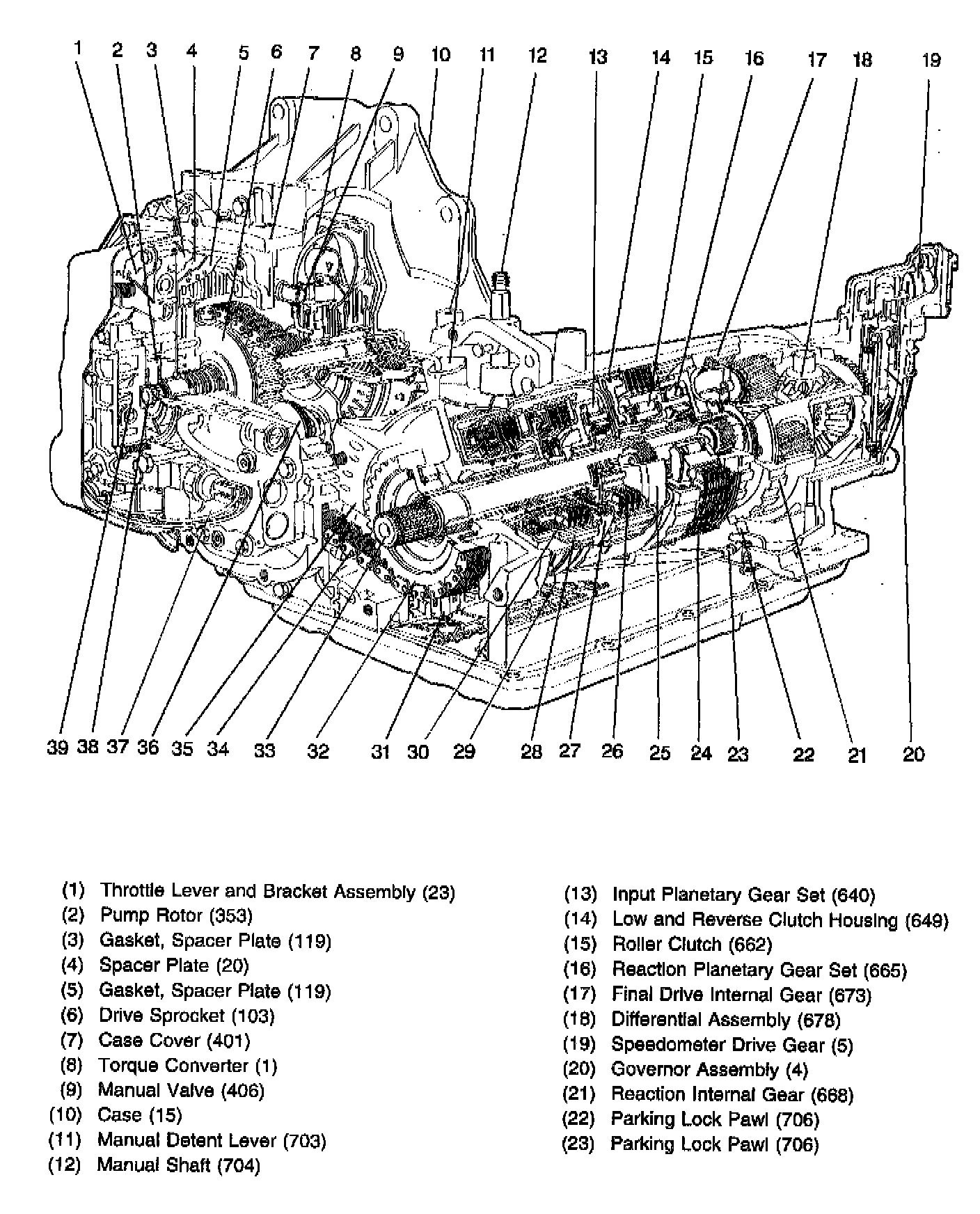

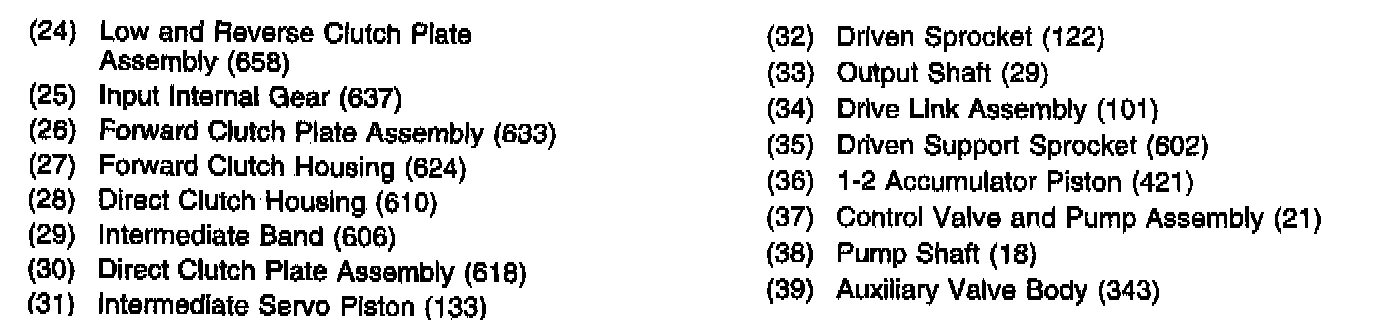

Transaxle Major Components

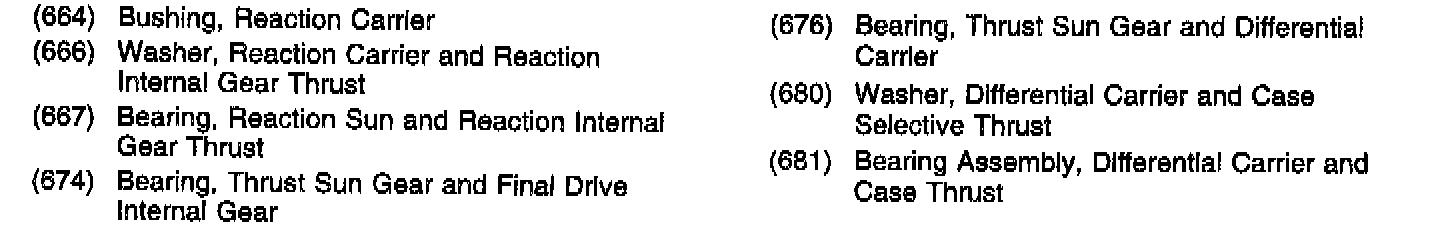

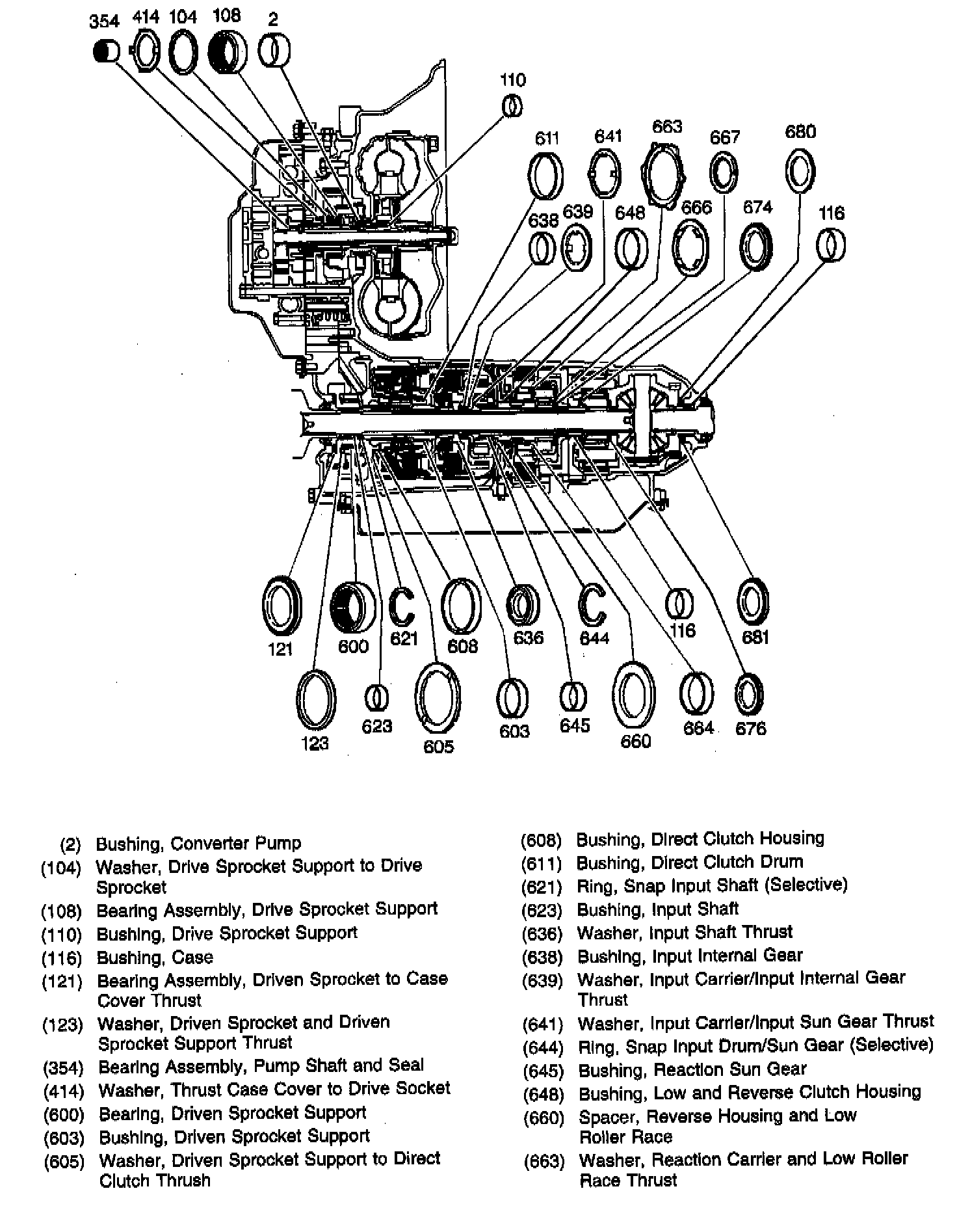

Bushings, Bearings and Thrust Washers

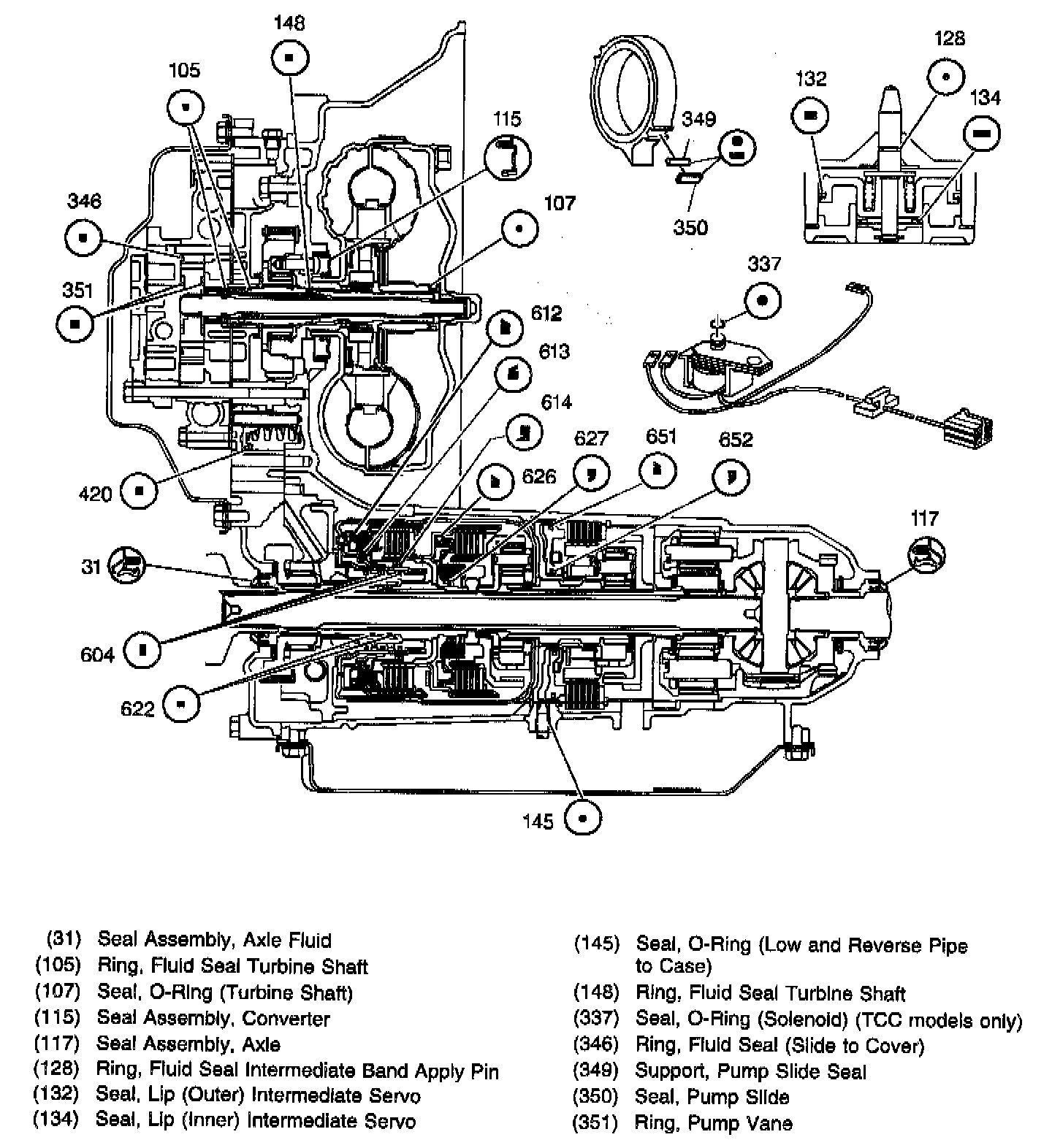

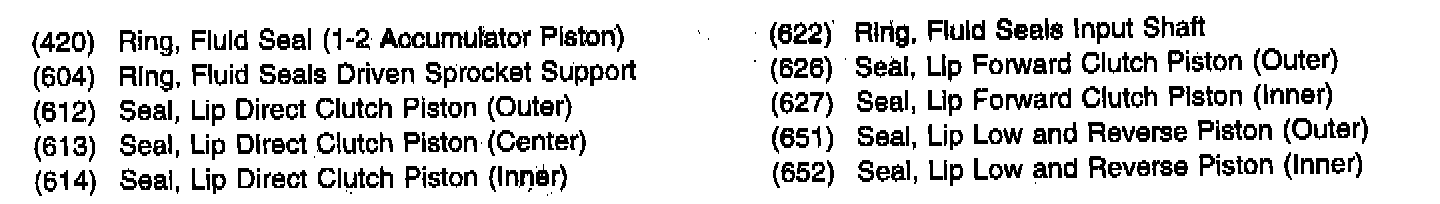

Seals

Auxiliary Valve Body Cover Fluid Passages (Auxiliary Valve Body Side)

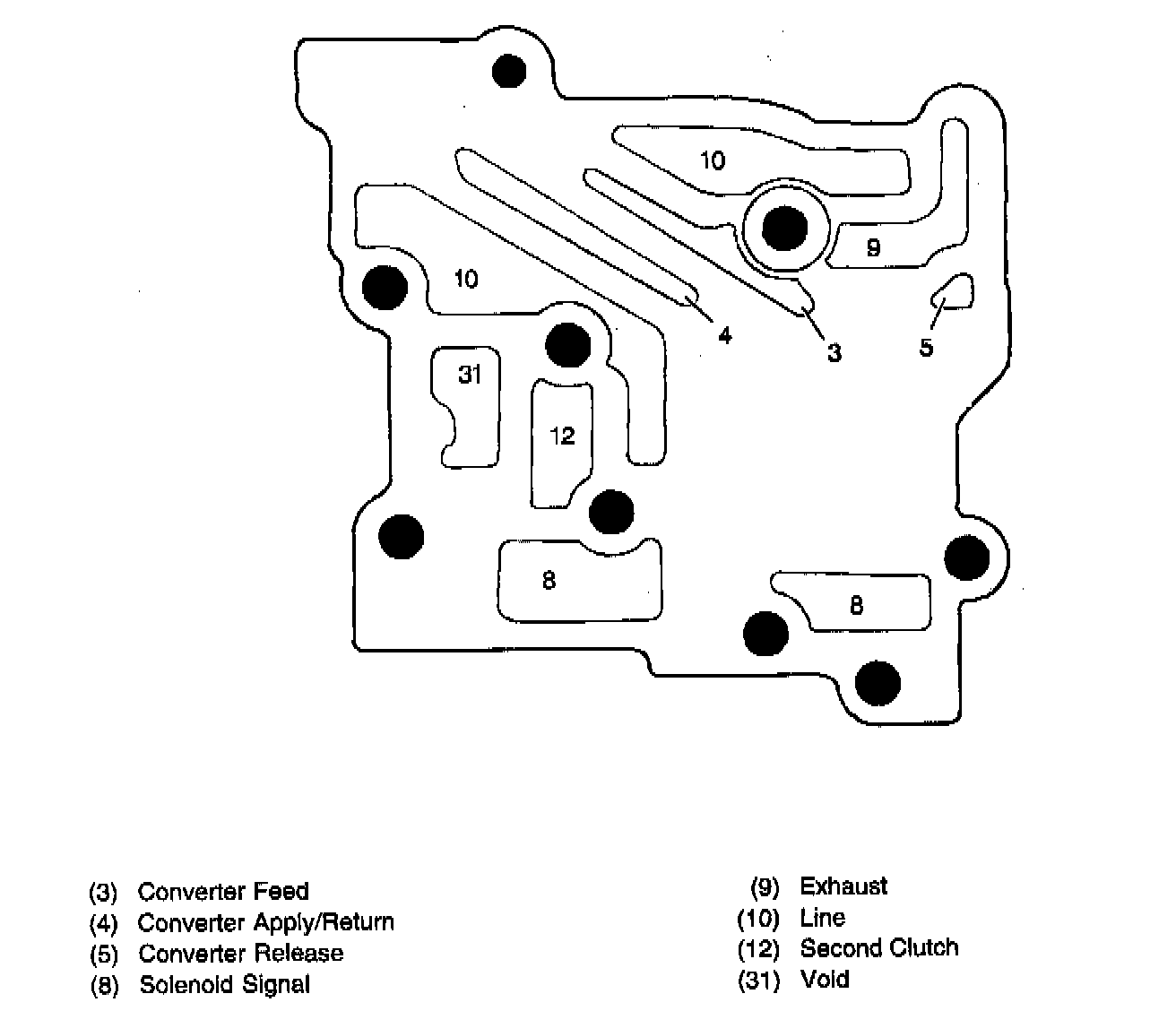

Auxiliary Valve Body Cover Gasket Fluid Passages

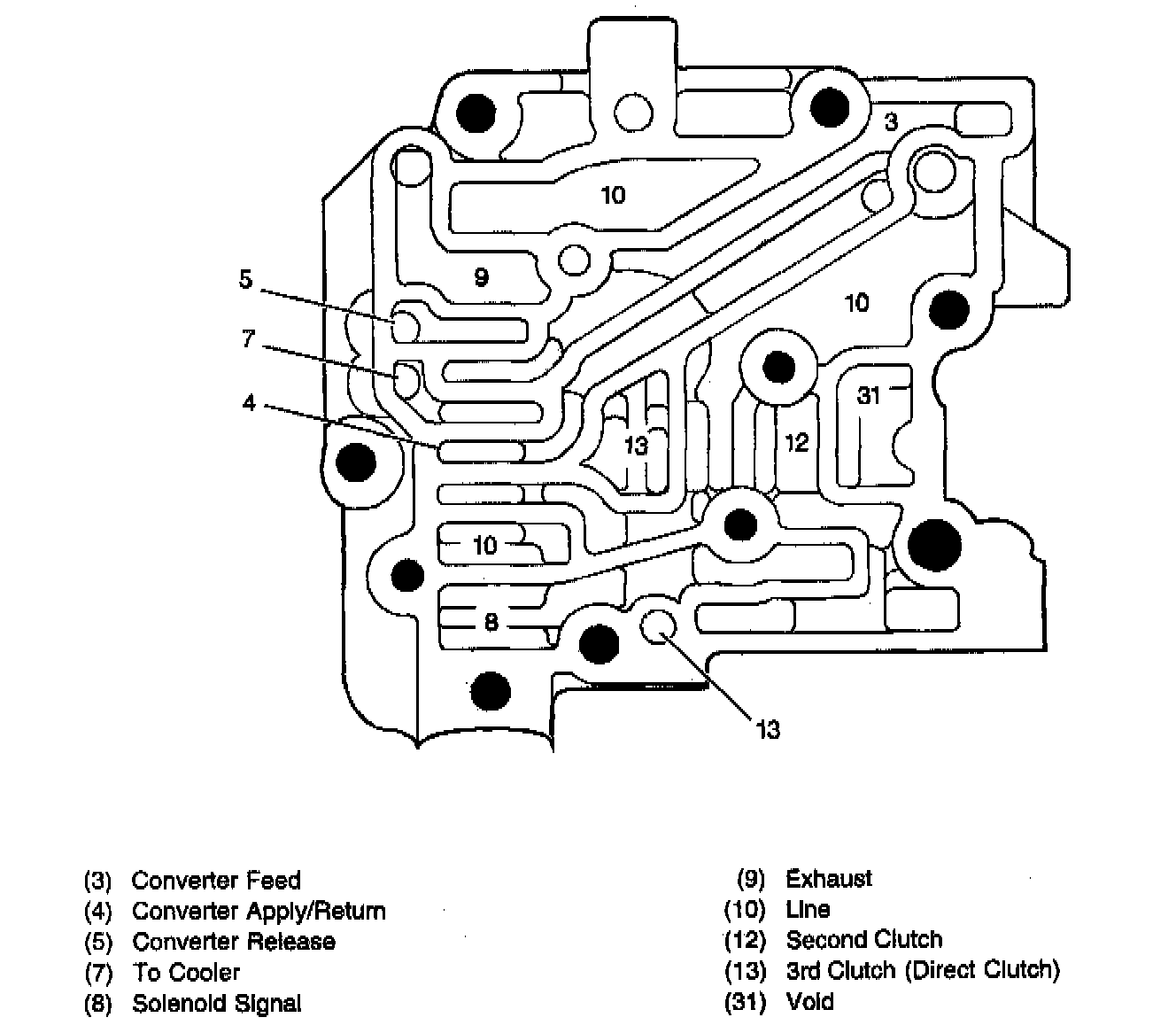

Auxiliary Valve Body Fluid Passages (Auxiliary Valve Body Cover Side)

Auxiliary Valve Body Fluid Passages (Fluid Pump Side)

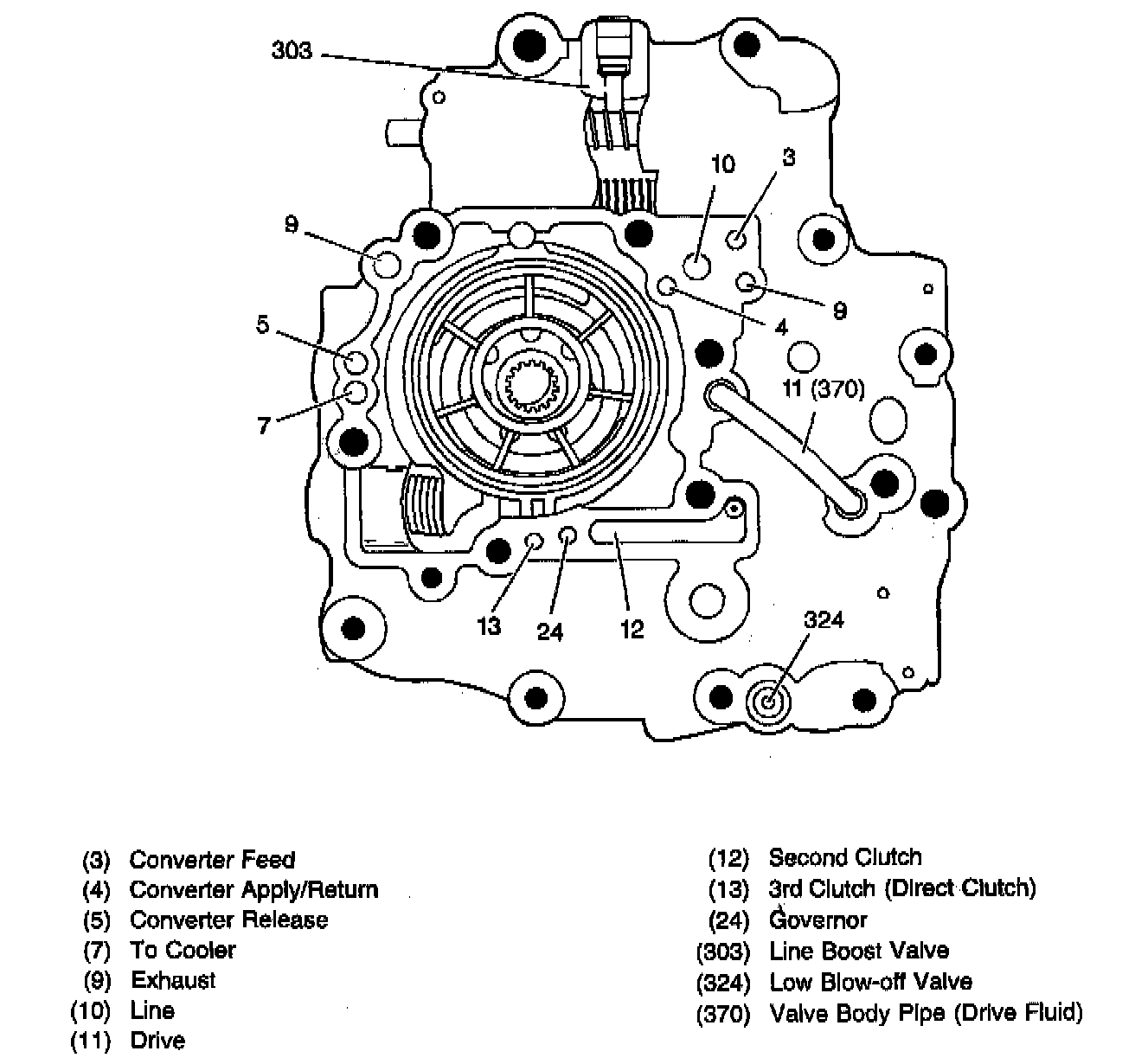

Control Valve Body and Fluid Pump Assembly Fluid Passages (Auxiliary Valve Body Side)

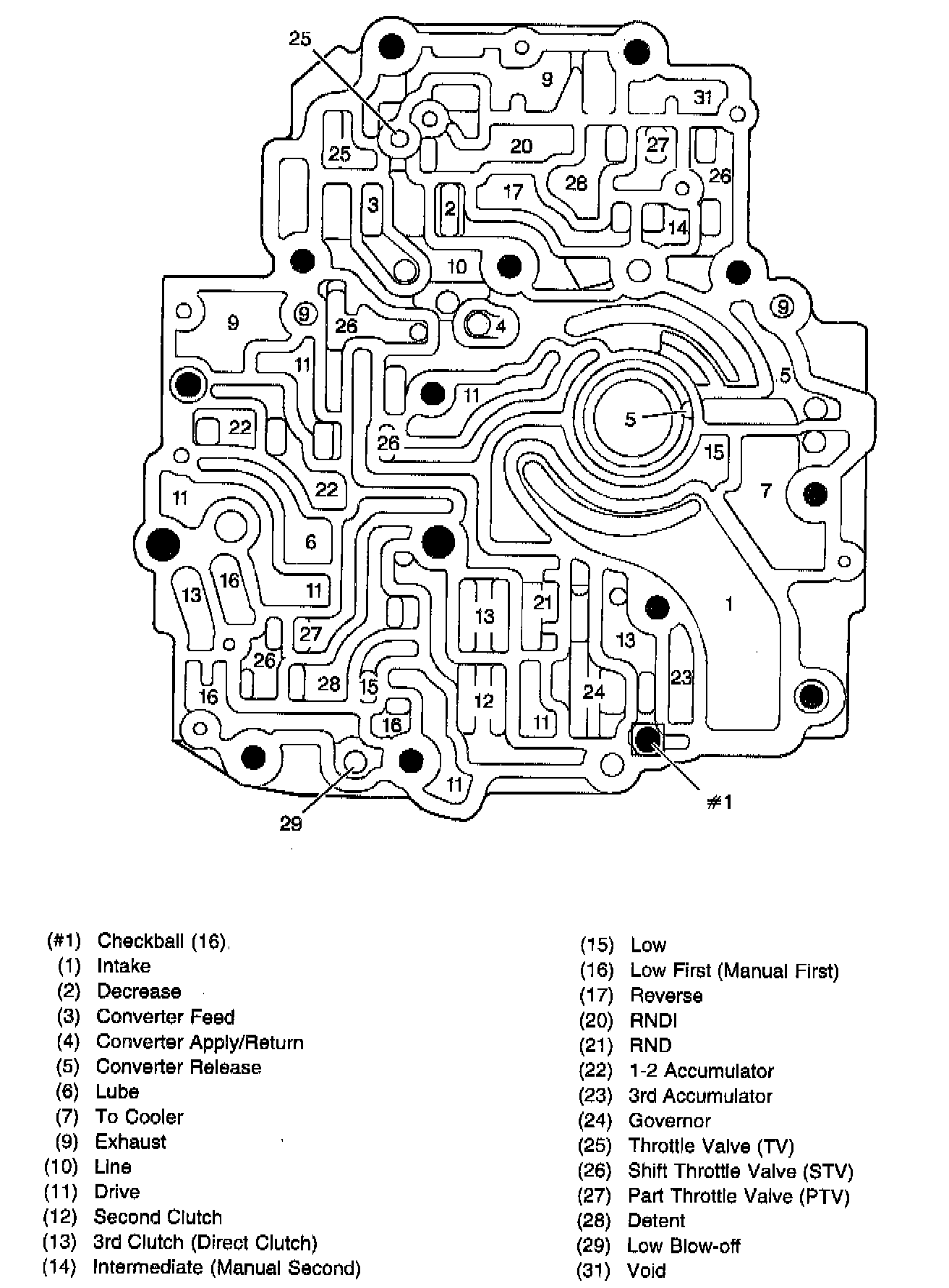

Control Valve Body Fluid Passages (Case Cover Side)

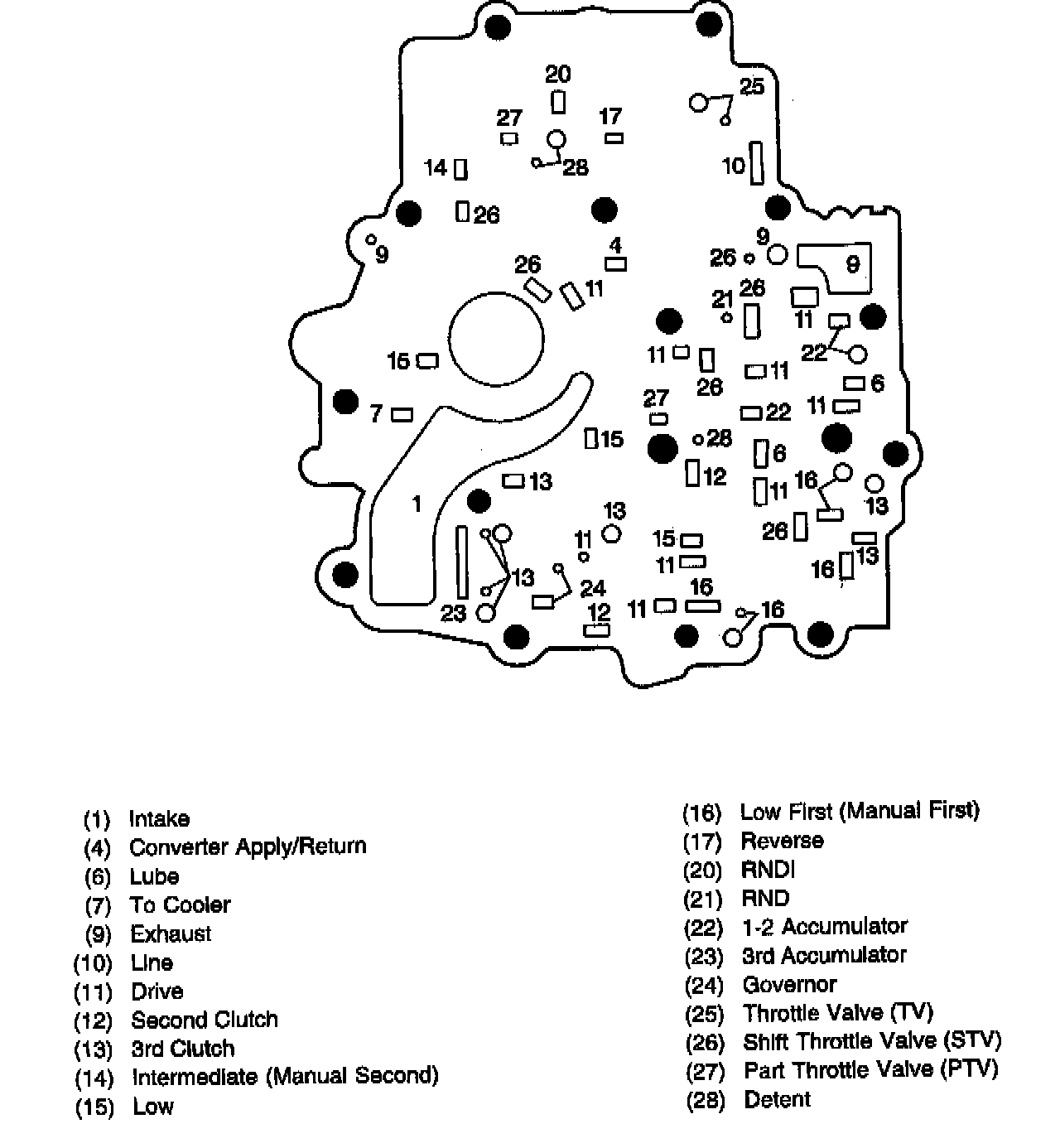

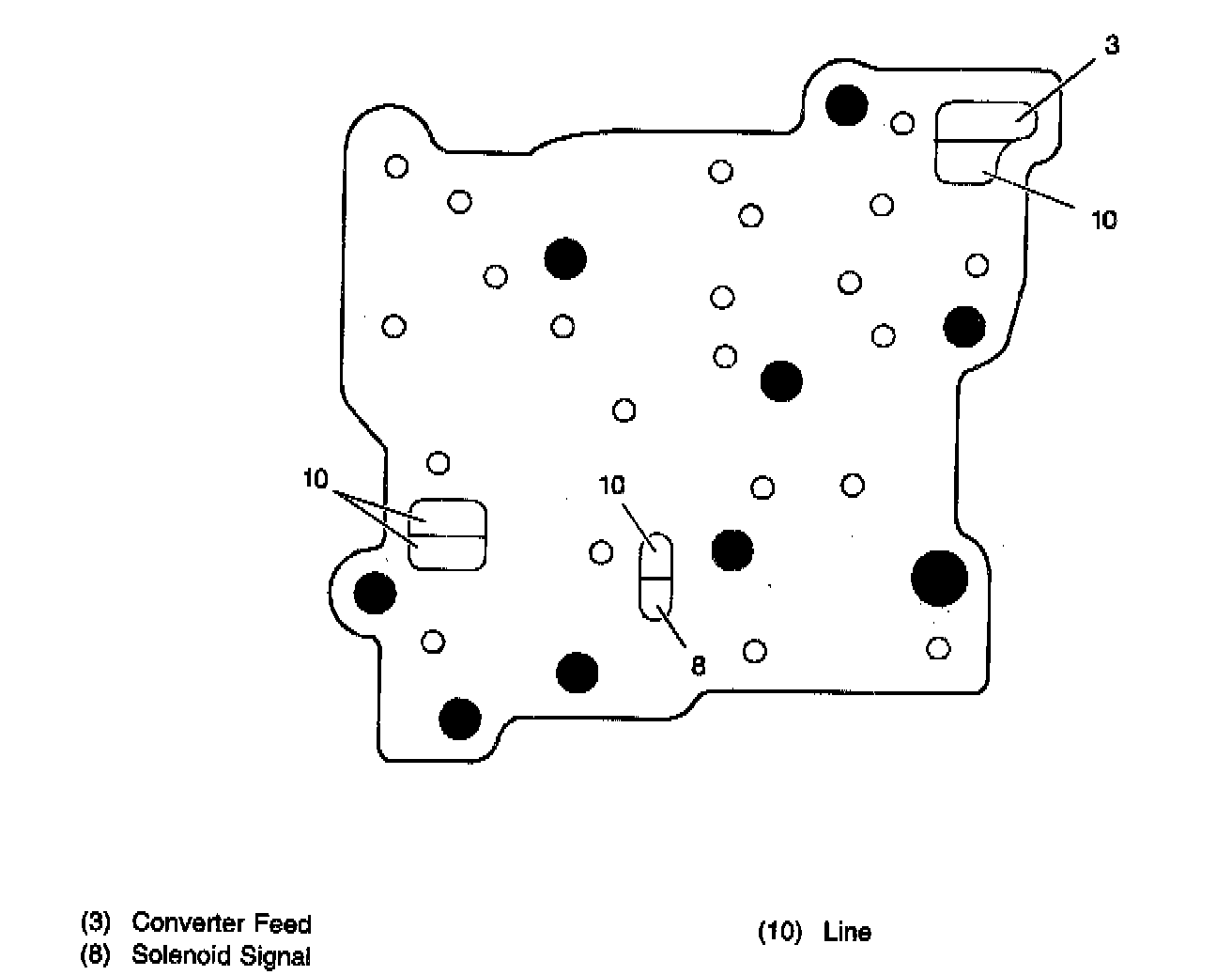

Typical Control Valve Body Spacer Plate Fluid Passages

Case Cover Fluid Passages (Control Valve Body Side)

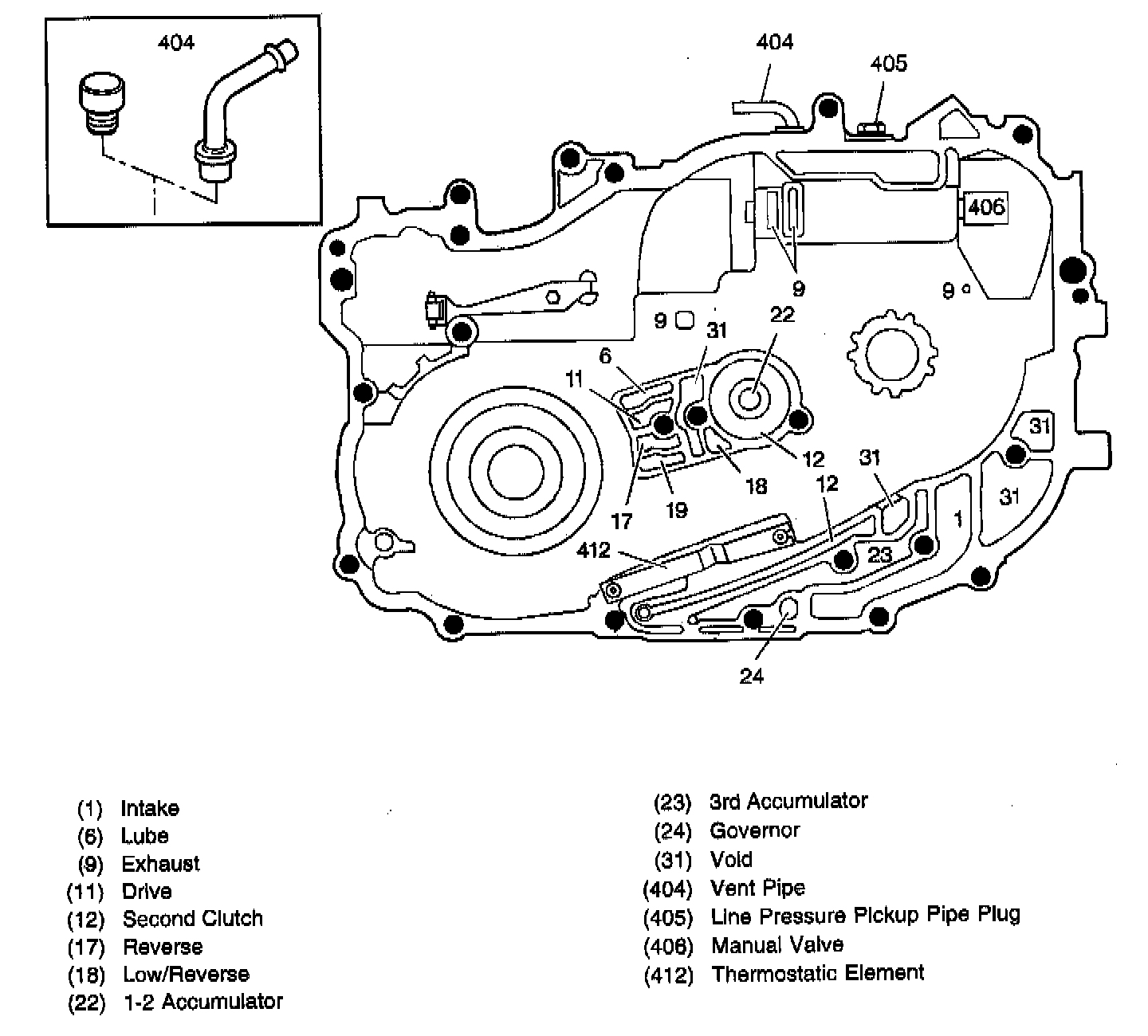

Case Cover Fluid Passages (Case Side)

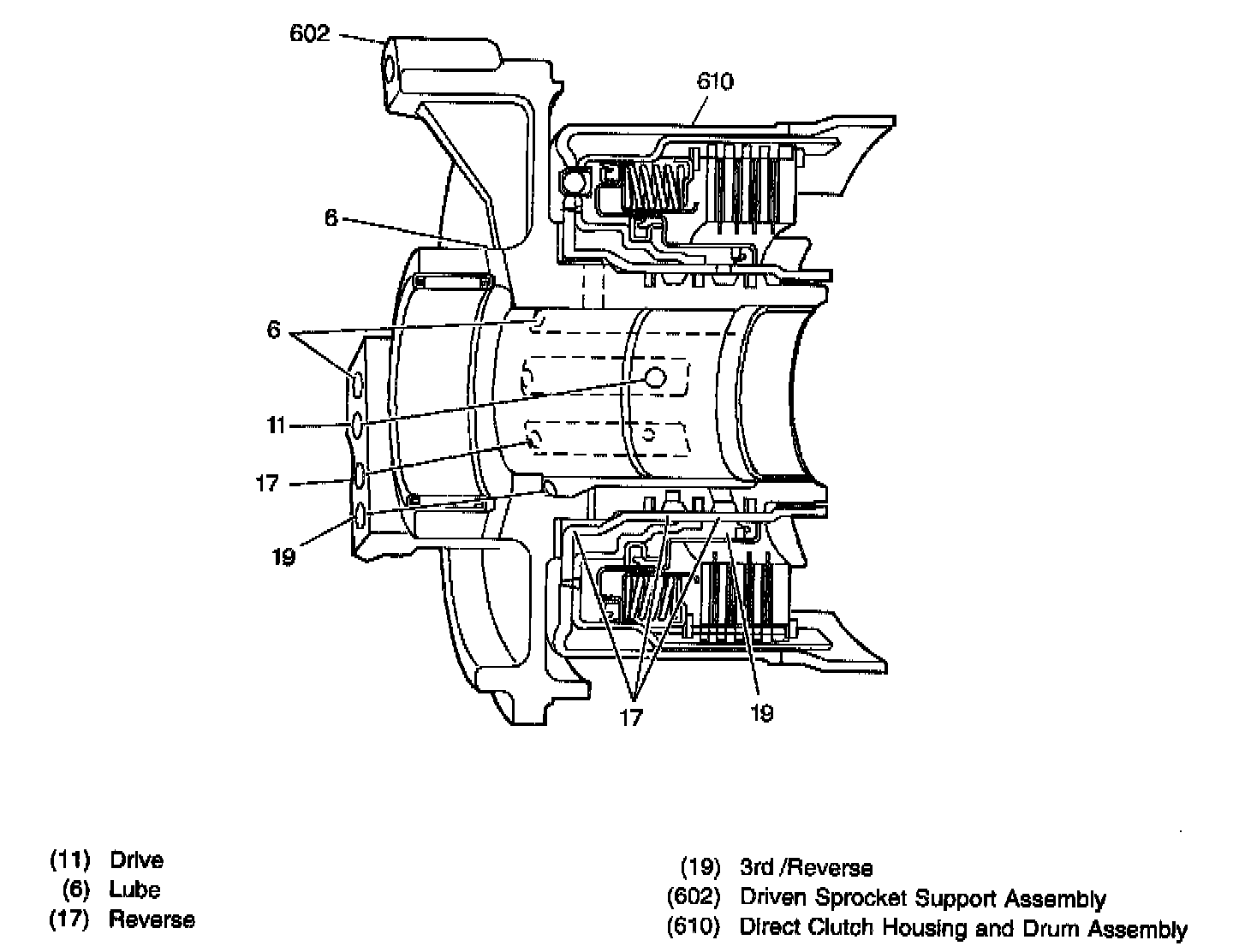

Driven Sprocket Support Fluid Passages

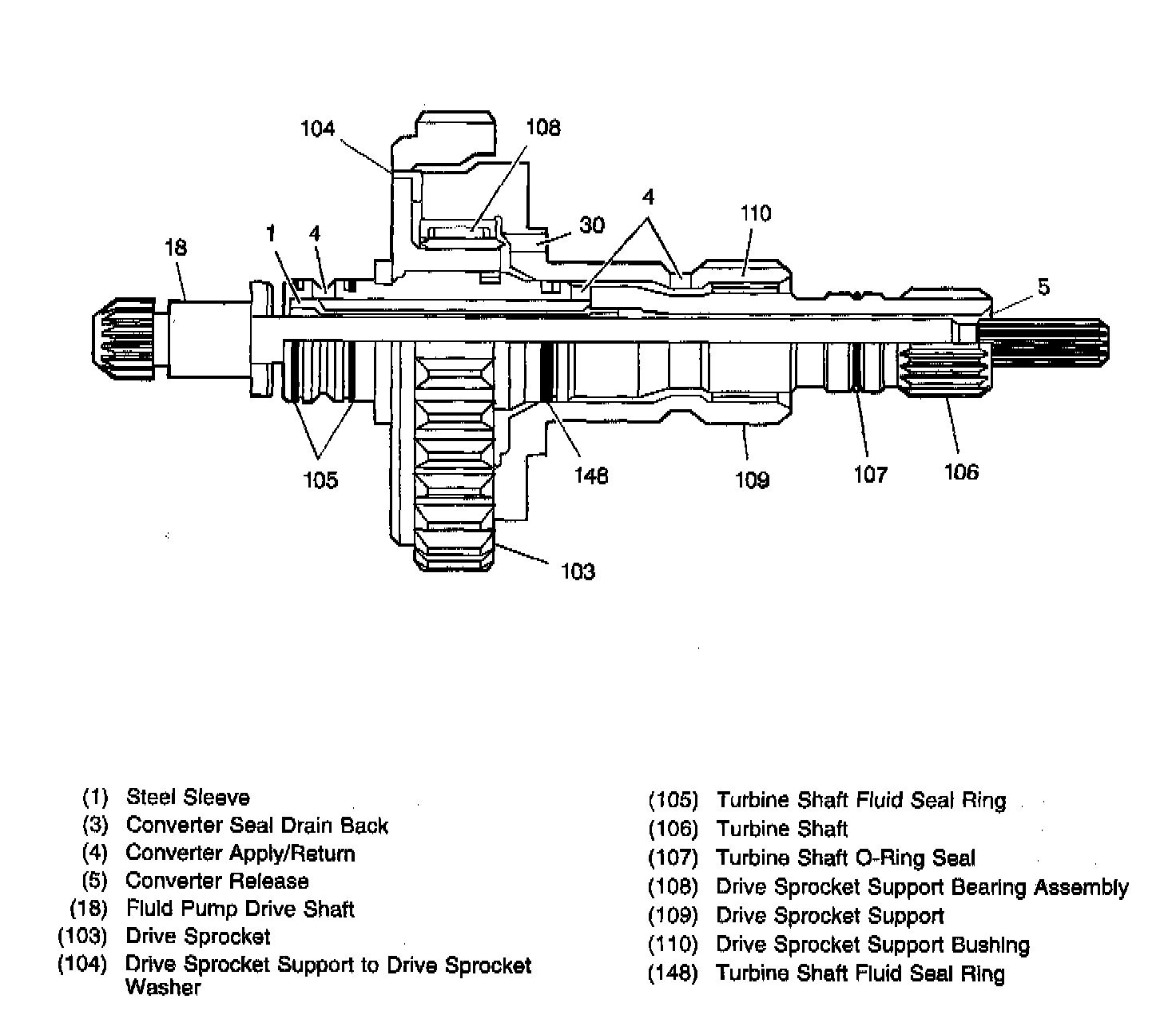

Oil Pump Drive Shaft and Drive Sprocket Fluid Passages

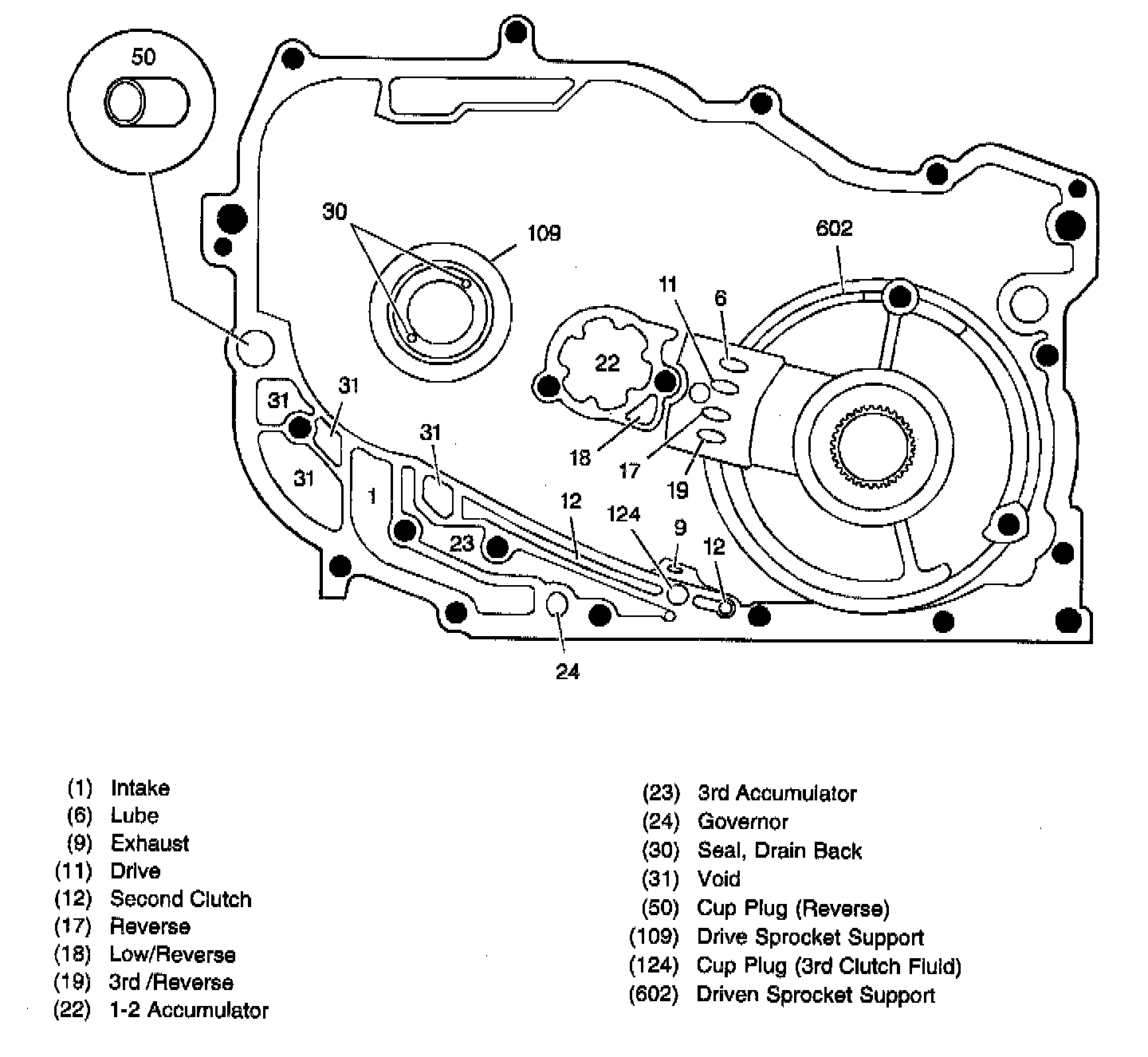

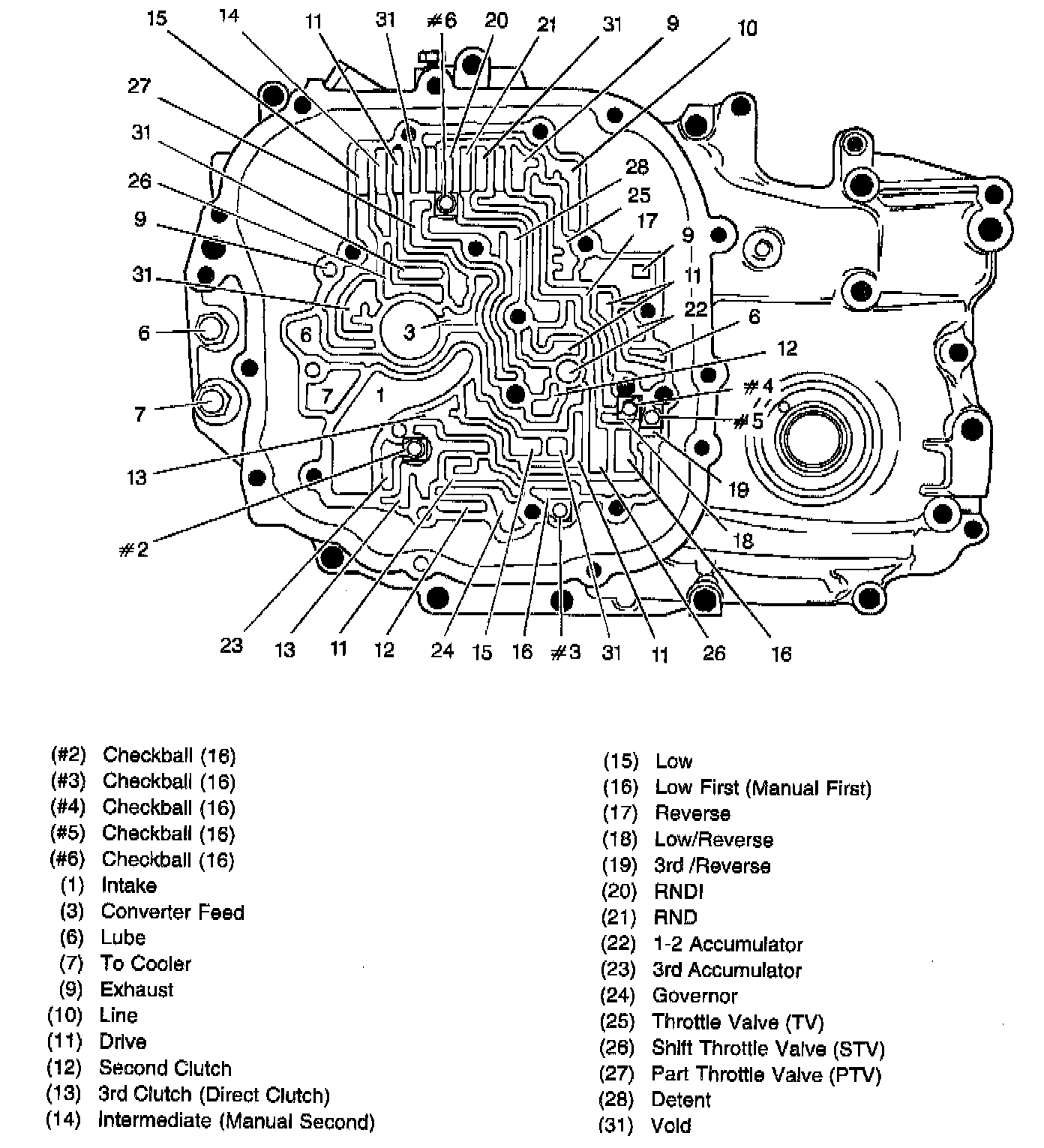

Case Fluid Passages (Case Cover Side)

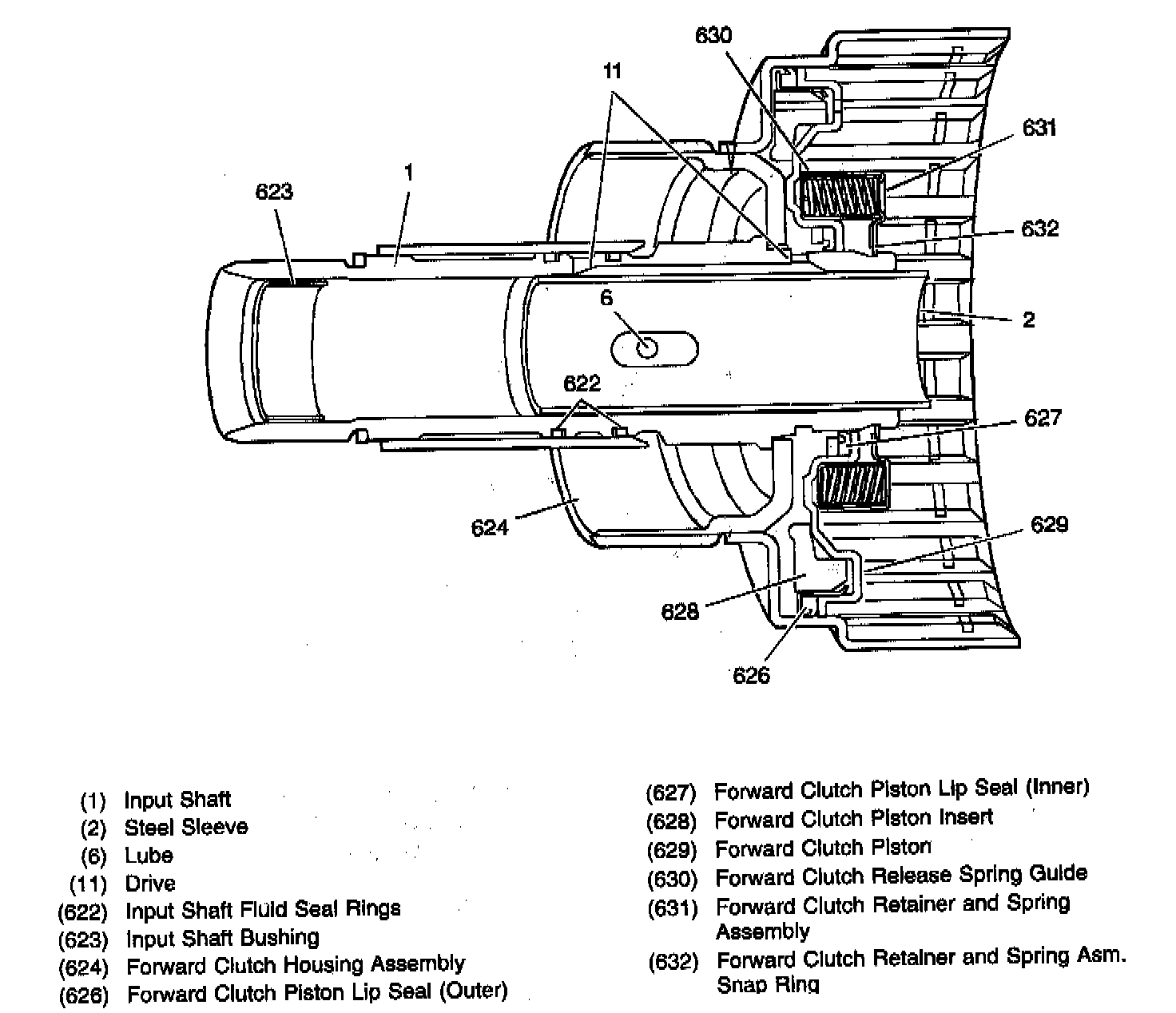

Forward Clutch Assembly Passages

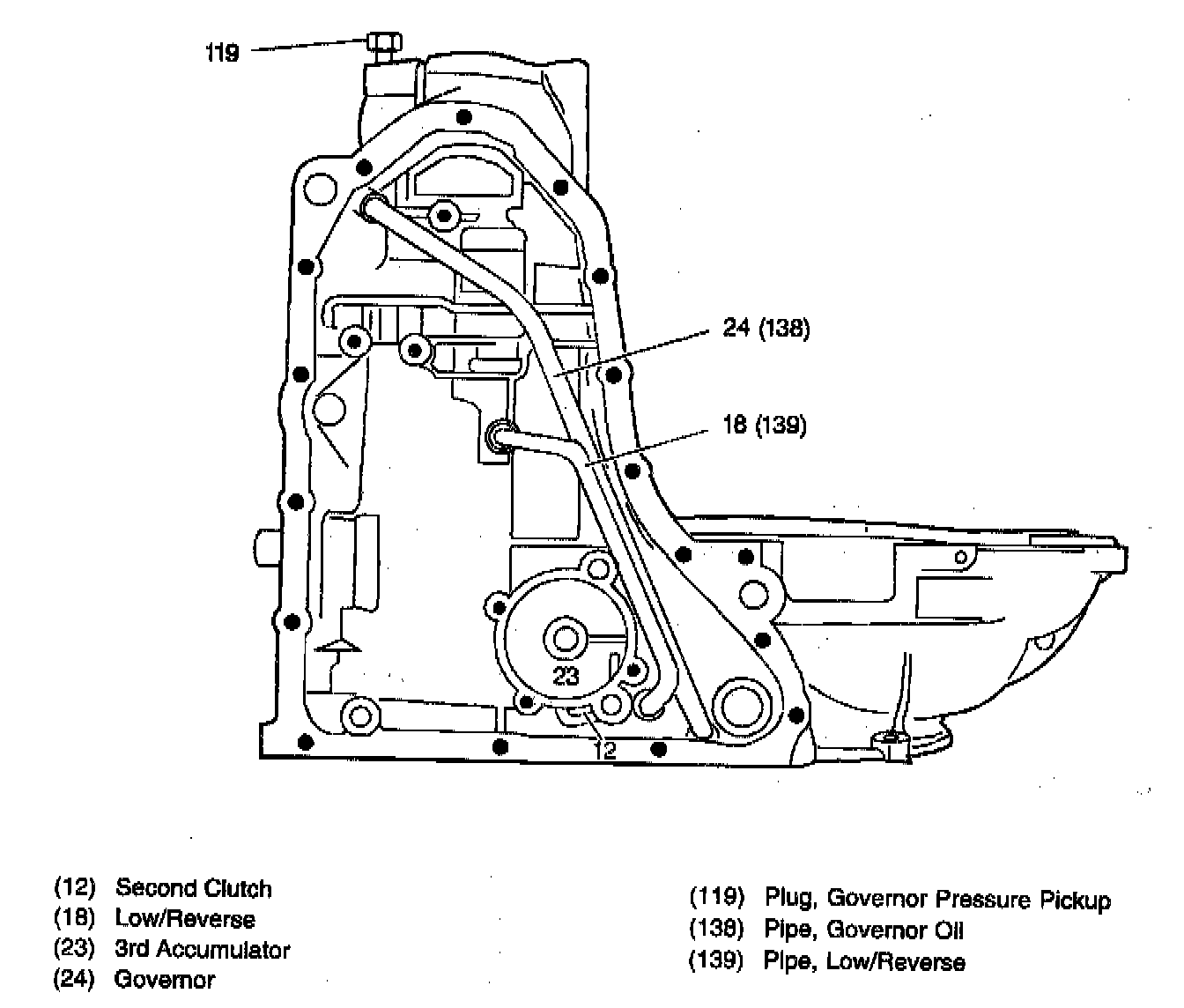

Case Fluid Passages (Oil Pan Side)
