Trunk / Liftgate Weatherstrip: Service and Repair
Rear Compartment Lid Weatherstrip Replacement (Convertible and Coupe)Removal Procedure 1.
Pull the
weatherstrip from the flange of the rear compartment panel.
Installation Procedure 1.

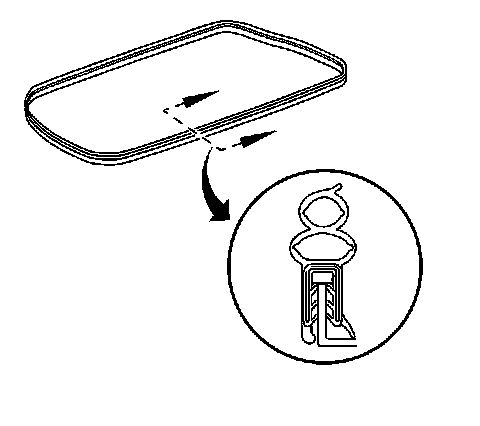

Position the
weatherstrip to the rear compartment flange with the upper lip of the seal facing outward.
2.
Seat the seal firmly to the flange.
