Brake Light Switch: Service and Repair
Removal Procedure 1.
Remove the Instrument Panel
(I/P) lower trim panel.
2.

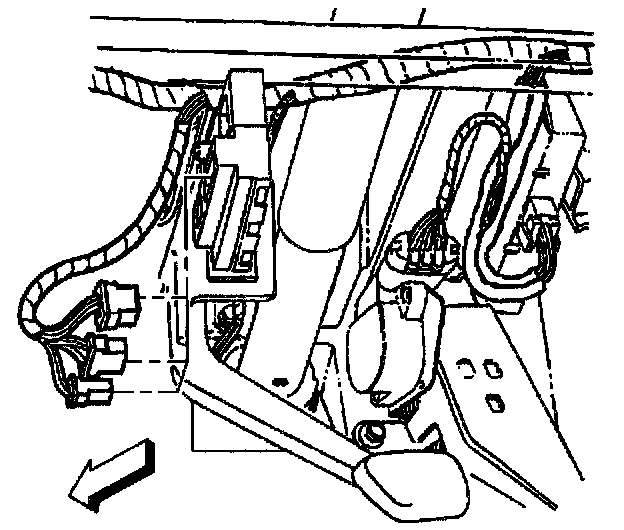

Disconnect the stoplamp switch connectors.
3.
Remove the stoplamp switch.
Installation Procedure 1.
Install the stoplamp switch.
2.
Adjust the stoplamp switch. Refer to Stoplamp Switch Adjustment.
3.
Connect the stoplamp switch connectors.
4.
Install the instrument panel lower trim panel.
