PCV System
PCV System:

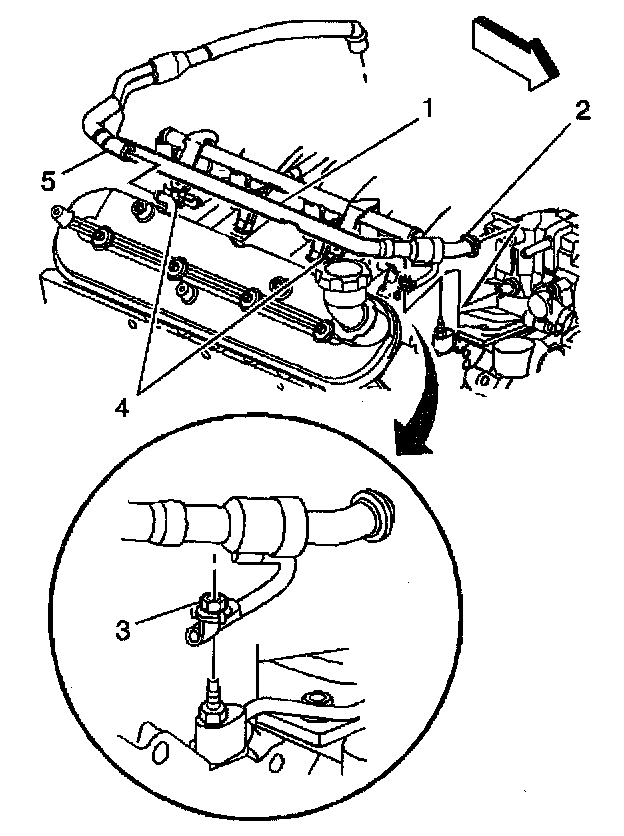

The PCV valve is connected to the
PCV heat exchange cable. The PCV heat exchange cable is mounted to the coolant crossover with a integral fastener (3). This cable transfers heat to the PCV valve to eliminate condensation build-up in the PCV system. This also aids in eliminating
throttle body icing.
