Electronic Column Lock Module - Disassemble

Disassembly Procedure





1. Remove the steering column tilt head assembly. Refer to Steering Column Tilt Head Housing - Disassemble - Off Vehicle (Non-Telescoping Column).

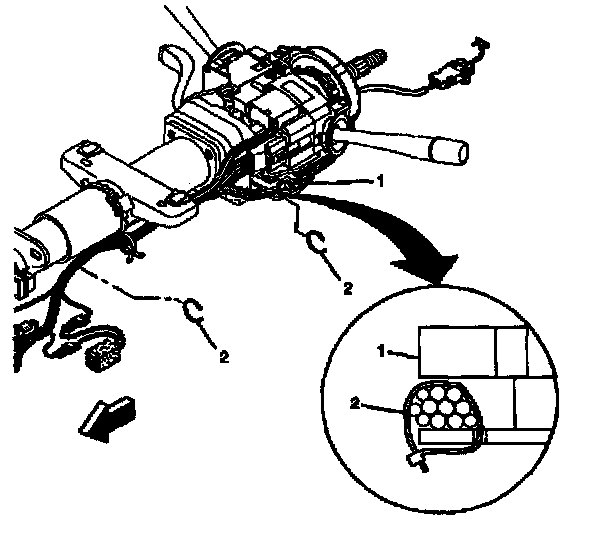

2. Pop the wire harness assembly (1) from the wire harness strap (2).
3. Disconnect the connector, if necessary.





4. Remove the wire harness straps (2) from the steering column tilt head assembly.

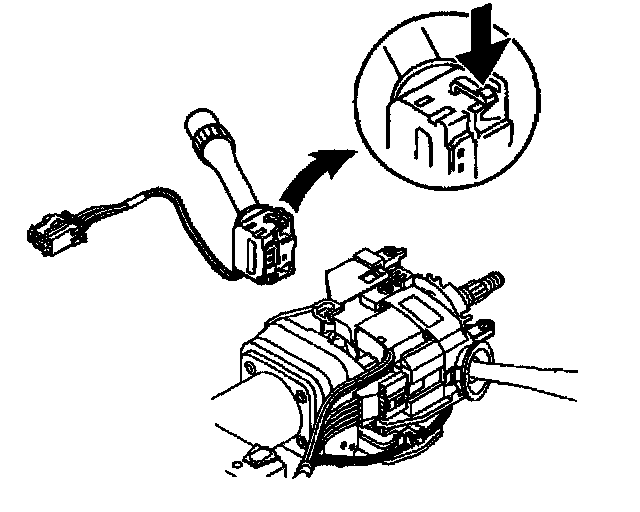

5. Depress the top and bottom clips on the pivot and pulse switch assembly.
6. Slide the pivot and pulse switch assembly away from the electric column lock to disengage.





7. Disconnect the electric column lock connector.
8. Remove the 2 pan head tapping screws (1).
9. Remove the electric column lock (2) from the steering column tilt head assembly.
