Oil Pressure Sensor: Service and Repair


^ Tools Required
- J 25254-10 A Oil Pressure Sensor Socket.

Removal Procedure





1. Remove the Engine Cover. Refer to Engine Cover Replacement.
2. Disconnect the electrical connector.

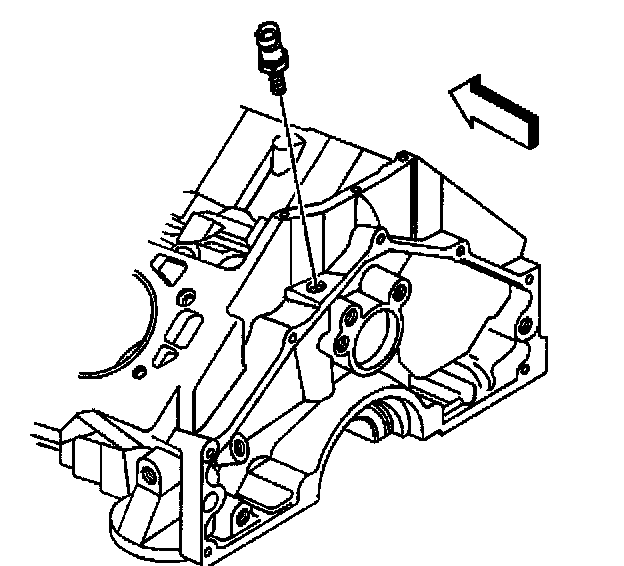

3. Remove the oil pressure sensor using J25254-10 A.


Installation Procedure

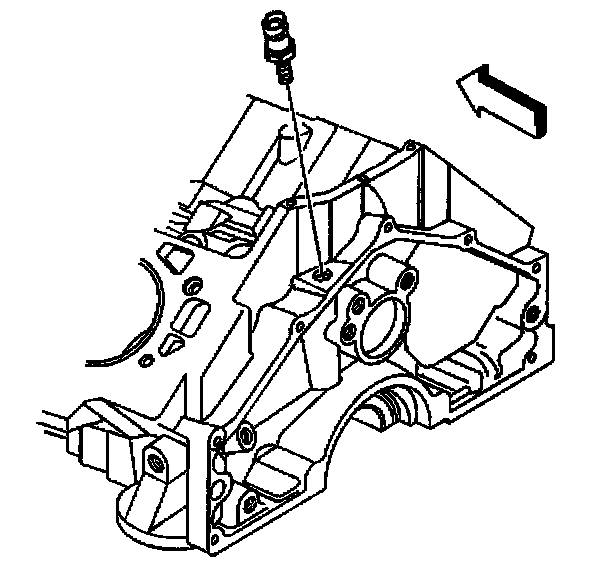

1. Install the oil pressure sensor.
2. Hold the oil pressure sensor fitting with a wrench to prevent from turning.
^ Using J25254-10 A, tighten the oil pressure sensor to 30 Nm (22 ft. lbs.).
3. Install the electrical connector.
4. Install the Engine Cover. Refer to Engine Cover Replacement.
