Cruise Control - Inoperative

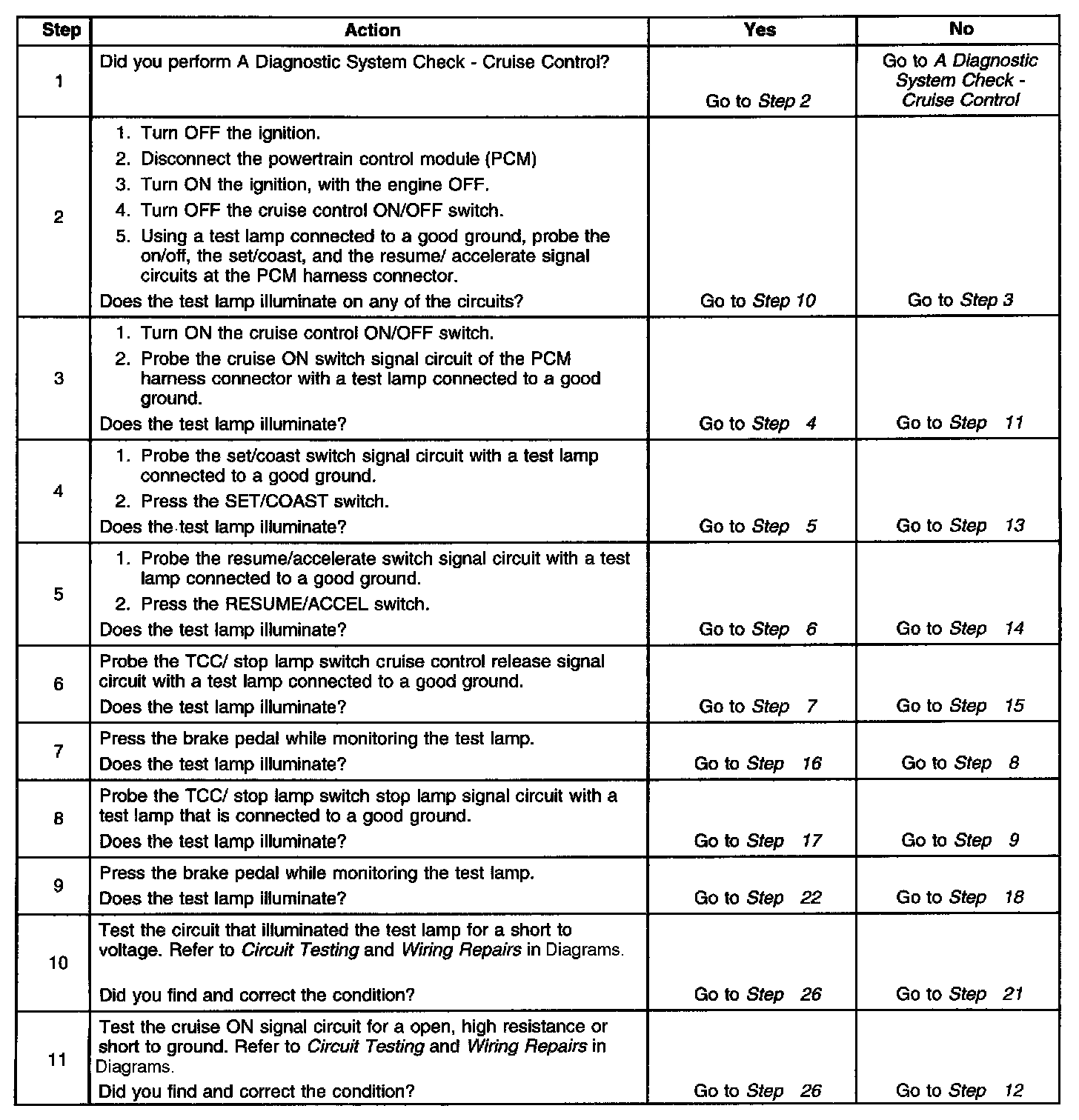

Diagnostic Chart (Part 1 Of 2):

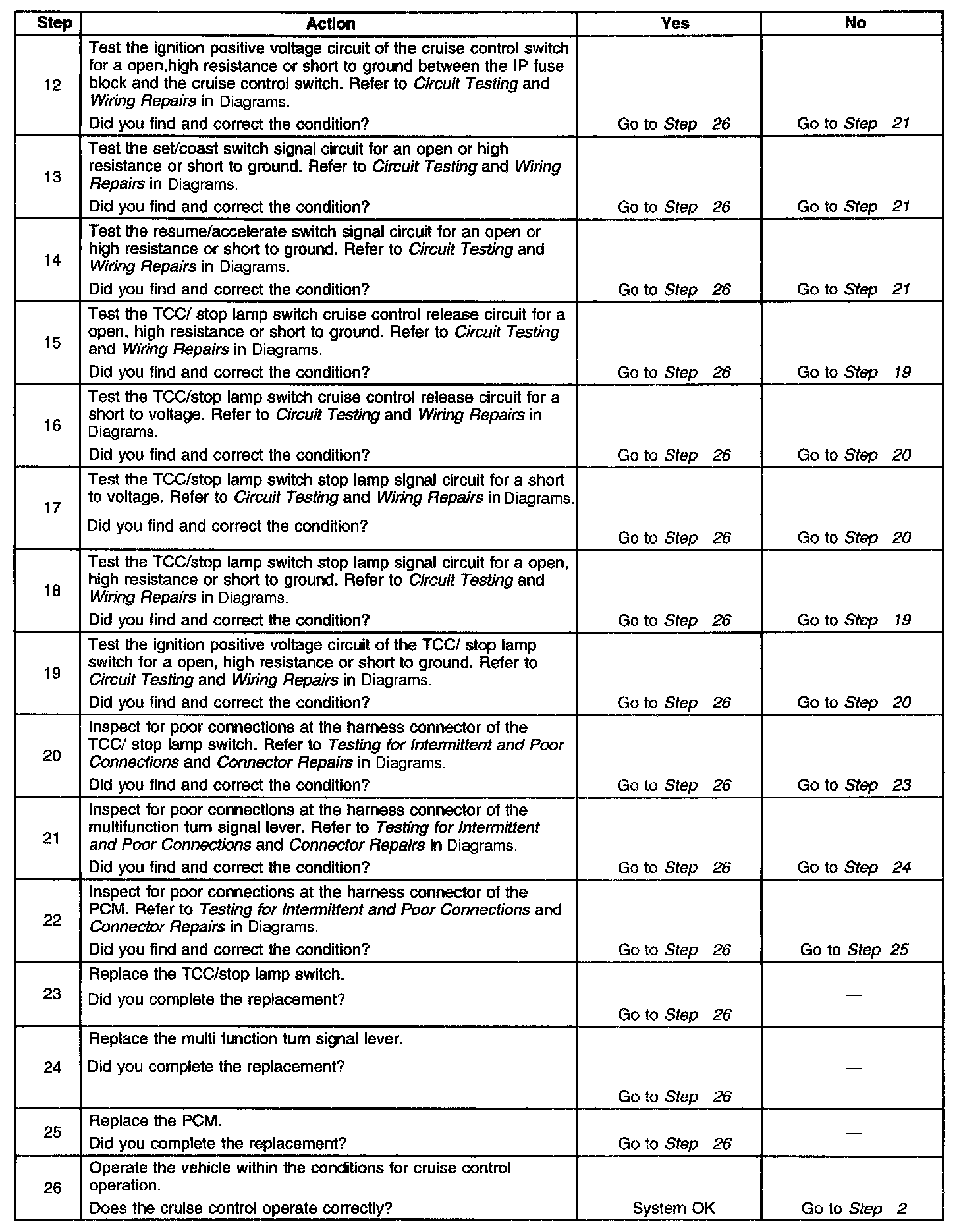

Diagnostic Chart (Part 2 Of 2):
DIAGNOSTIC AIDS IMPORTANT: Perform the following in order to avoid misdiagnosis.
^
Inspect for proper operation of brake lamps and brake switch.
^
Inspect the speedometer for proper operation.
CONDITIONS FOR ENABLING CRUISE CONTROL The vehicle speed is greater than
40 km/h (25 mph).
