Antenna Module Replacement

Antenna Module Replacement




REMOVAL PROCEDURE

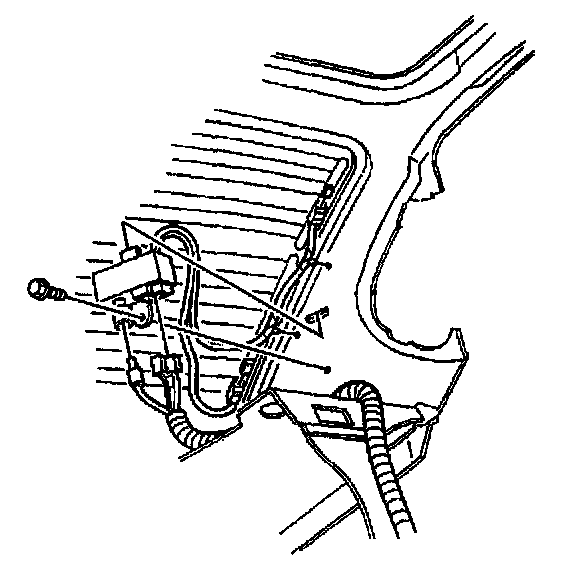

1. Remove the LH rear quarter upper trim panel.
2. Disconnect the antenna amplifier electrical connector and the antenna coaxial cable. The antenna coaxial cable uses a sliding snap-lock. Pull the lock in order to remove the antenna coaxial cable.
3. Detach the black antenna leads from the glass. The upper lead is held to the body metal with a wiring clip. Carefully pry the clip out of the metal.
4. Remove the antenna amplifier bolt.
5. Remove the antenna amplifier.

INSTALLATION PROCEDURE

1. Position the antenna amplifier to the LH rear window inner upper panel. Install the antenna amplifier bolt.

Tighten
Tighten the antenna amplifier bolt to 3 N.m (27 lb in).

IMPORTANT: The antenna coaxial cable uses a sliding snap-lock. Holding the sliding lock feature will prevent installation.

2. Connect the antenna amplifier electrical connectors:
2.1. Position the antenna coaxial cable behind the sliding lock feature.
2.2. Install the antenna coaxial cable to the sliding lock feature.

IMPORTANT: If the wiring clip is faulty, the wiring clip must be replaced prior to installation.

3. Install the antenna leads to the rear window terminals. Push the wiring clip on the upper lead into the hex hole in the metal.
