Timing Chain: Diagrams




Align the timing marks on the balance shaft drive gear and the balance shaft driven gear.

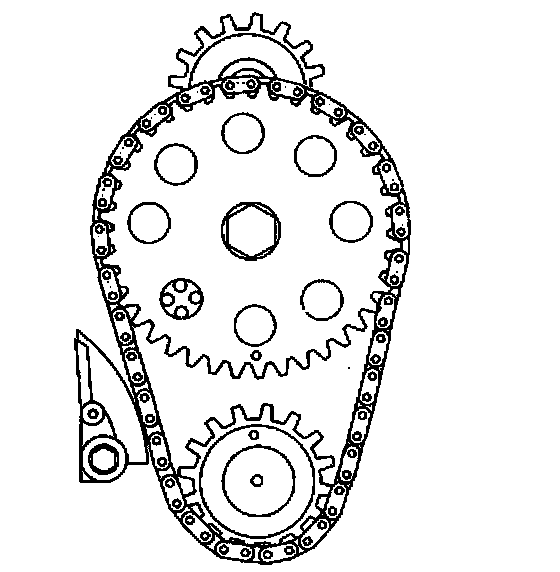

Assemble the timing chain on the sprockets with the timing marks as close together as possible.
