Ambient Light Sensor: Service and Repair

REMOVAL PROCEDURE




1. Remove the defroster grille.

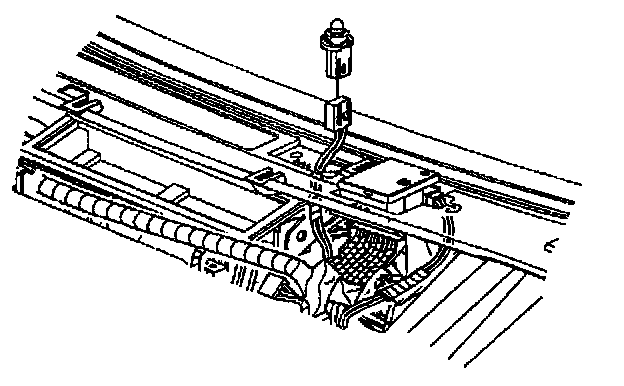

2. Remove the daytime running lamp ambient light sensor socket from the defroster grille by twisting 1/4 turn counterclockwise.




3. Remove the daytime running lamp ambient light sensor from the daytime running lamp ambient light connector.

INSTALLATION PROCEDURE




1. Install the daytime running lamp ambient light sensor to the daytime running lamp ambient light sensor socket.




2. Install the daytime running lamp ambient light sensor socket to the defroster grille twisting 1/4 turn clockwise.
3. Install the instrument panel upper trim pad.
