Fuel Tank Pressure Sensor: Service and Repair

REMOVAL PROCEDURE




1. Turn OFF the ignition switch.
2. Remove the trunk liner.

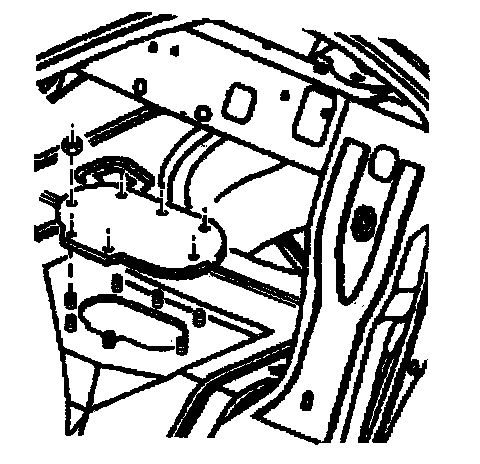

3. Remove the retaining nuts from the fuel sender access panel.
4. Remove the fuel sender access panel.




5. Disconnect the electrical connector from the fuel tank pressure sensor.
6. Remove the fuel tank pressure sensor (7) from modular fuel sender assembly.

INSTALLATION PROCEDURE




1. Install the new fuel tank pressure sensor (7) to modular fuel sender.
2. Connect the electrical connector to fuel tank pressure sensor




3. Install the fuel sender access panel.
4. Install the fuel sender access panel retaining nuts.

Tighten
Tighten the fuel sender access panel nuts to 10 N.m (8 lb ft).

5. Install the trunk liner.
