Front Side Door Window Switch Replacement




Front Side Door Window Switch Replacement (Impala)

Removal Procedure

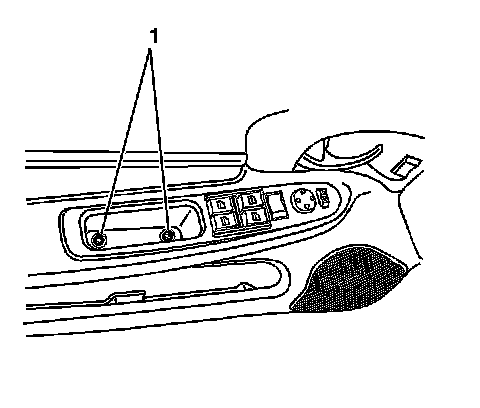

1. Remove the front door pull cup screws (1) and pull cup from the front door trim panel. Armrest Pull Cup Replacement (Impala) (Armrest Pull Cup Replacement).




2. Disconnect the electrical connectors from the front door power window control switch.

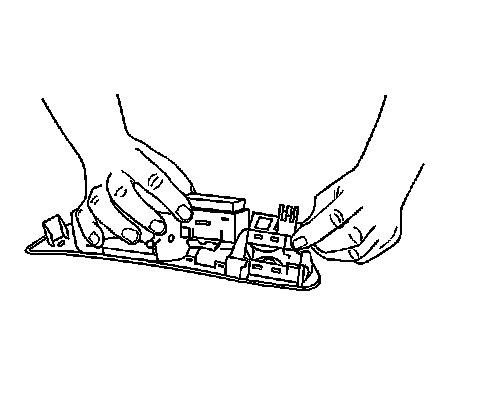

3. Remove the front door window control switch using a small, flat-bladed tool at the side of the switch.

Installation Procedure




1. Install the front door power window control switch to the front door pull cup pressing into place until fully seated.
2. Connect the electrical connector to the power window control switch.




3. Install the front door pull cup and screws (1) to the front door trim panel. Armrest Pull Cup Replacement (Impala) (Armrest Pull Cup Replacement).
