Diagnostic System Check

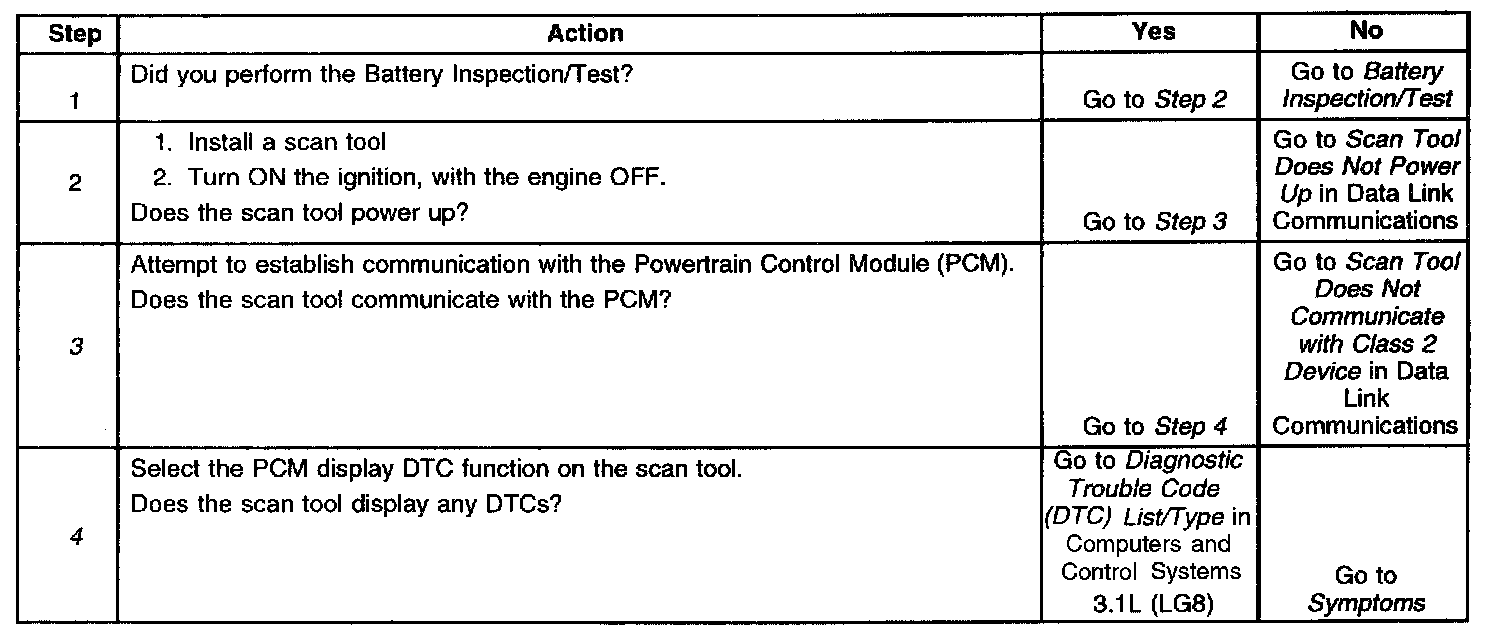

TEST DESCRIPTIONStep 1 - 4:
The number(s) below refer to the step number(s) on the diagnostic table.
3.
Lack of communication may be due to a partial malfunction of the serial data circuit or due to a total malfunction of the serial data circuit. The specified procedure will determine the particular condition.
4.
The symptom list in Symptoms will determine the correct diagnostic procedure to use.
